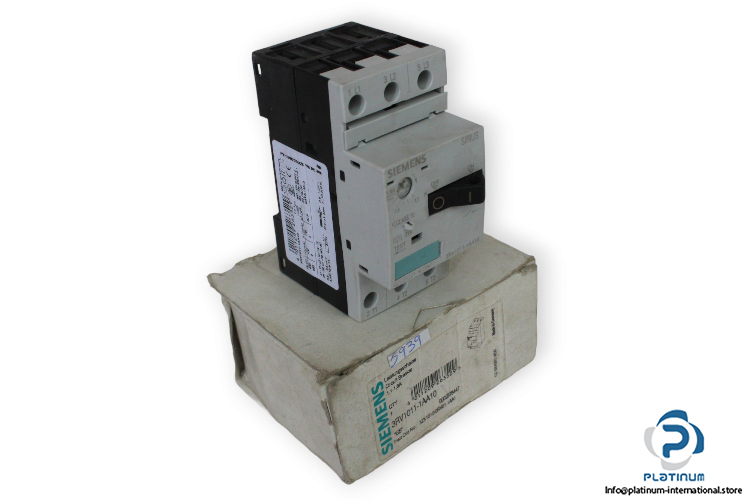

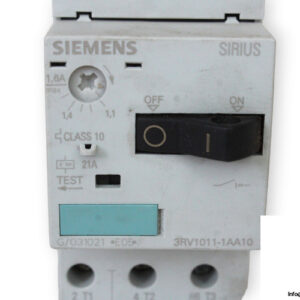

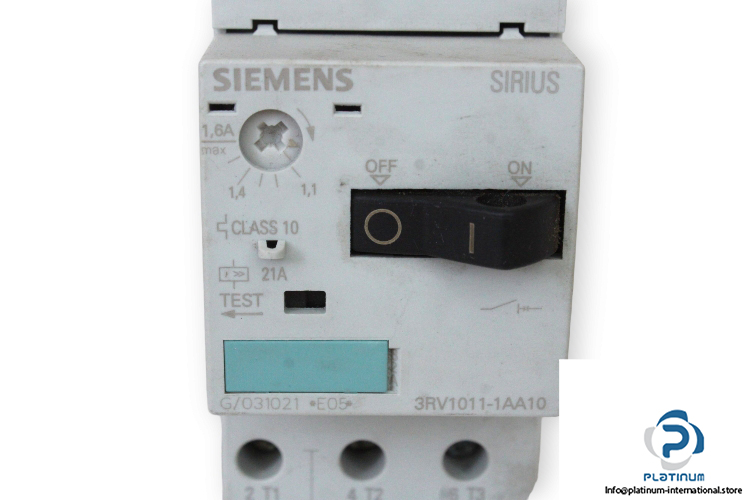

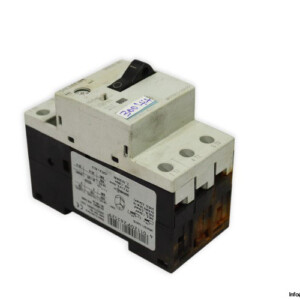

SIEMENS SIRIUS 3RV10110EA10 CIRCUIT BREAKER

The Siemens SIRIUS 3RV10110EA10 Circuit Breaker is a compact and reliable protection device designed specifically for motor protection. Built with a durable S00 frame size and advanced tripping characteristics, it ensures safe and efficient operation in industrial environments.

Manufacturer: Siemens
Type: Circuit Breaker
MNR: 3RV10110EA10
Brand: SIRIUS
Size: S00
Design of the product: For motor protection

Technical Information

• Operating Voltage: 690 V
• Service Power: 0.55 kW
• Adjustable Current Response Range: 1.1 / 1.6 A
• Instantaneous Short-Circuit Trip Value: 21 A
• Continuous Current Rated Value: 1.6 A
• No. of Poles: 3
• Trip Class: CLASS 10
• Rated Breaking Capacity @400 V (Icu): 100 kA
• Rated Service Breaking Capacity @400 V (Ics): 100 kA
• Fastening Method: Screw and snap-on mounting onto 35 mm DIN rail
• Electrical Connection: Screw terminals
• Protection Degree: IP20
• Operating Temperature: -20 / 60°C
• Dimensions: 90 x 45 x 81 mm
