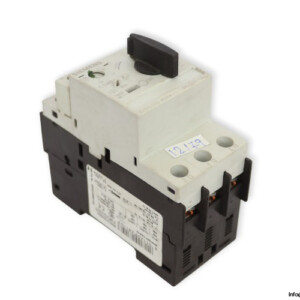

Manufacturer: Siemens
Type: Circuit Breaker
MNR: 3RV10211AA10
Product Brand Name: SIRIUS

Size: S0
Used: For Motor Protection
Operating Voltage rated value: 20 … 690 V
Frequency: 50/60 Hz
Operating power at AC-3 at 400 V rated value: 0.6 kW

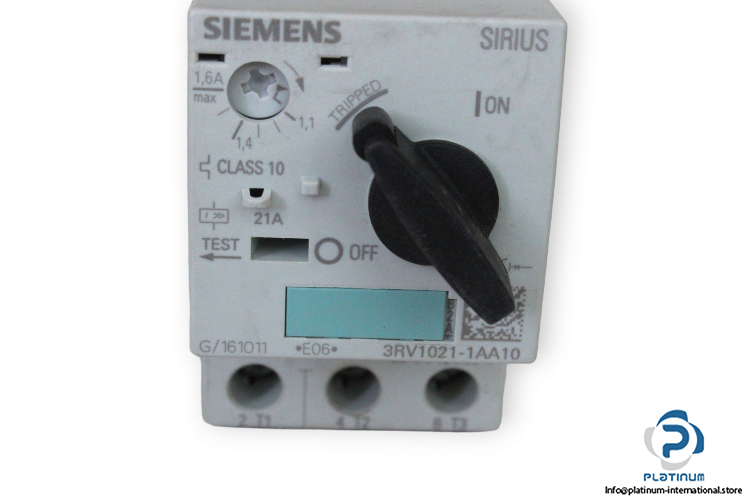

Adjustable current response range: 1.1 … 1.6 A
Operational current at AC-3 at 400 V rated value: 1.6 A
Response value current of instantaneous short-circuit trip unit: 21 A
No. of poles: 3
Trip Class: CLASS 10
Tightening Torque: 2 … 2.5 N·m
Fastening method: screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Type Of Electrical Connection: for main current circuit screw-type terminals
Rated breaking capacity@400V (Icu): 100 kA
Rated Service breaking capacity@400 V (Ics): 100 kA
Protection degree: IP20
Standard: IEC/EN 60947-2,IEC/EN 60947-4-1
Operating temperature: -20 … 60°C
Dimensions: 96 x 45 x 97 mm
