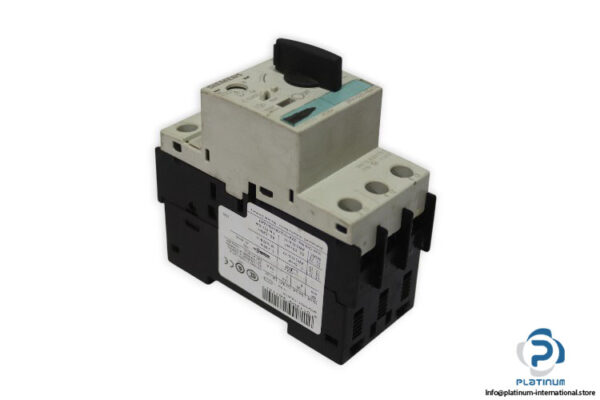

SIEMENS SIRIUS CIRCUIT BREAKER 3RV10211EA10

The Siemens SIRIUS 3RV10211EA10 is a high-quality circuit breaker designed for reliable motor protection in industrial applications. Compact and durable, it ensures safe operation with precise current response and high breaking capacity, making it suitable for demanding environments.

Manufacturer: Siemens
Type: Circuit Breaker
Model No. (MNR): 3RV10211EA10
Product Brand Name: SIRIUS

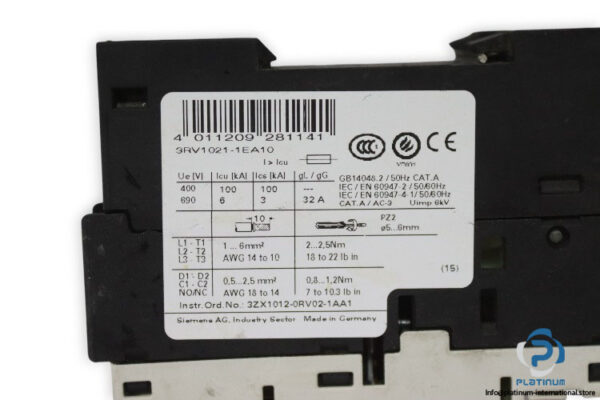

Inst Ord No.: 3ZX1012-0RV02-1AA1

Technical Information

• Size: S0
• Application: For Motor Protection
• Operating Voltage Rated Value: 690 V
• Frequency: 50/60 Hz
• Active Power Loss: 6 W

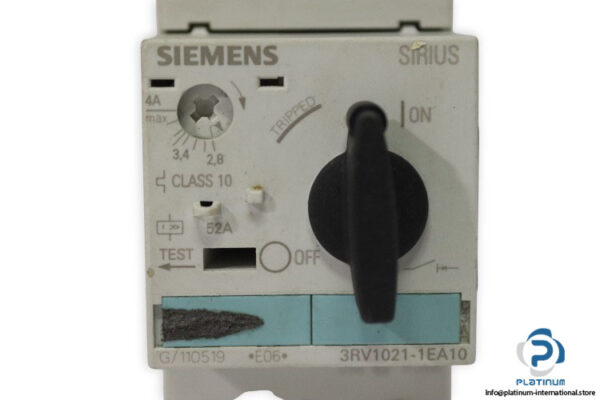

• Adjustable Current Response Range: 2.8 / 4 A
• Operating Current at AC-3 at 400 V: 4 A
• Instantaneous Short-Circuit Trip Unit Response Value: 52 A
• No. of Poles: 3
• Main Contact: 1NO, 1NC
• Trip Class: CLASS 10
• Tightening Torque: 2 / 2.5 N·m
• Mounting Type: Screw and snap-on mounting onto 35 mm standard rail (DIN EN 50022)
• Rated Breaking Capacity at 400 V (Icu): 100 kA
• Rated Service Breaking Capacity at 400 V (Ics): 100 kA
• Protection Degree: IP20
• Standards: IEC/EN 60947-2, IEC/EN 60947-4-1
• Operating Temperature: -20 / 60 °C
• Dimensions: 96 x 45 x 97 mm
