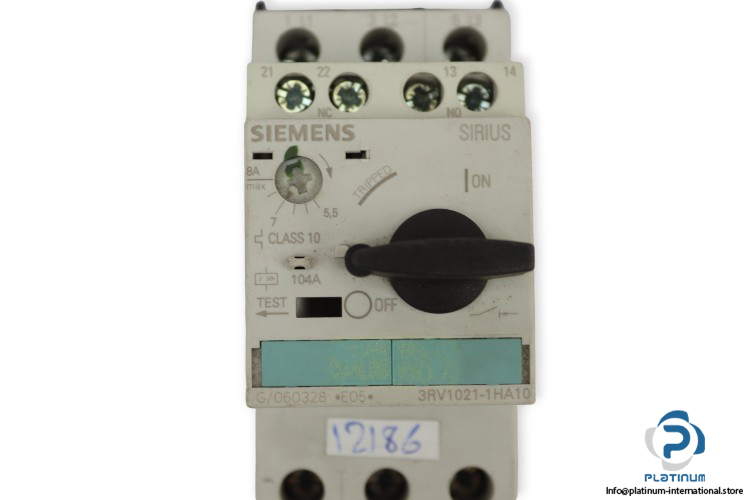

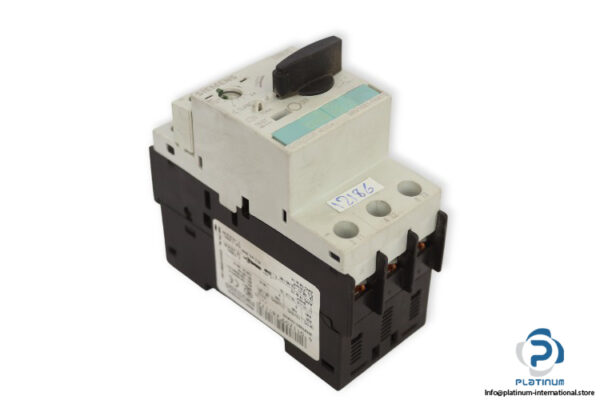

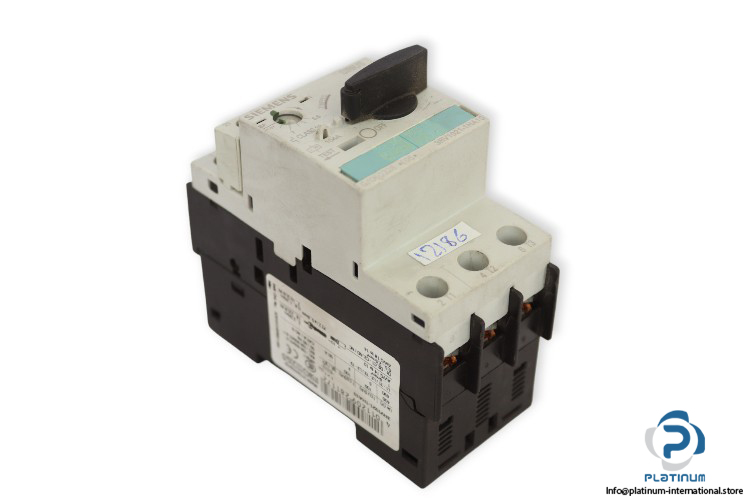

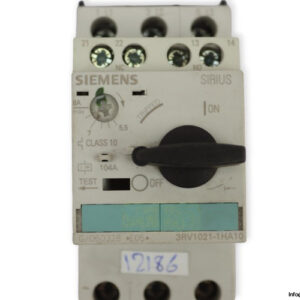

Manufacturer: Siemens
Type: Circuit breaker
MNR: 3RV10211HA10
Brand: SIRIUS

Size: S0
Used: For Motor Protection
Operating voltage rated value: 690 V
Surge voltage resistance rated value: 6 kV
Power loss for rated value: 9.25 W
Adjustable current response range: 5.5 … 8 A
Response value current of instantaneous short-circuit trip unit: 104 A
No. of poles: 3
Breaking capacity maximum short-circuit current (Icu) at AC at 400 V rated value: 100 kA
Fastening Method: screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Electrical connection: screw-type terminals
Protection degree: IP20
Operating temperature: -20 … 60°C
Dimensions: 97 x 45 x 96 mm
