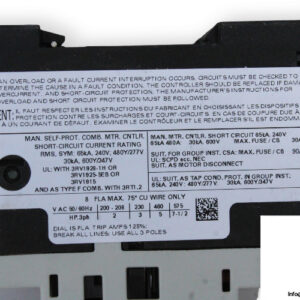

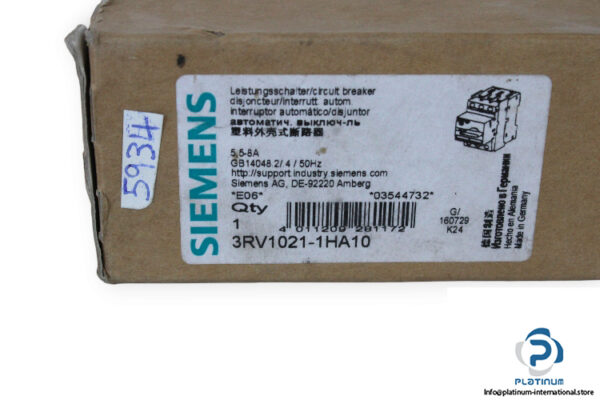

Manufacture: Siemens
Type: Circuit Breaker
MNR: 3RV10211HA10

Size: S0
Used: For Motor Protection
Operating voltage: 690 V
Frequency: 50/60 Hz
Power loss: 7 W
Adjustable current response range: 5.5 … 8 A
Operating current at AC-3 at 400 V Rated value: 8 A
Response value current of instantaneous short-circuit trip unit: 104 A
No. of poles: 3
Type of mounting: screw and snap-on mounting onto 35 mm DIN rail
Electrical connection: screw-type terminals
Rated breaking capacity@400V (Icu): 100 kA
Rated Service breaking capacity@400 V (Ics): 100 kA
Standard: IEC/EN 60947-2,IEC/EN 60947-4-1
Protection degree: IP20
Operating temperature: -20 … 70°C
Dimensions: 96 x 45 x 97 mm
