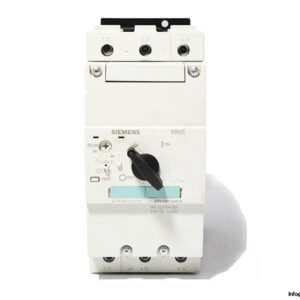

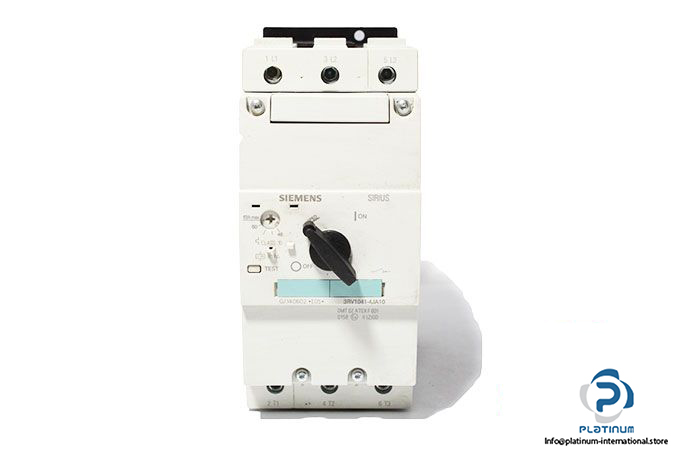

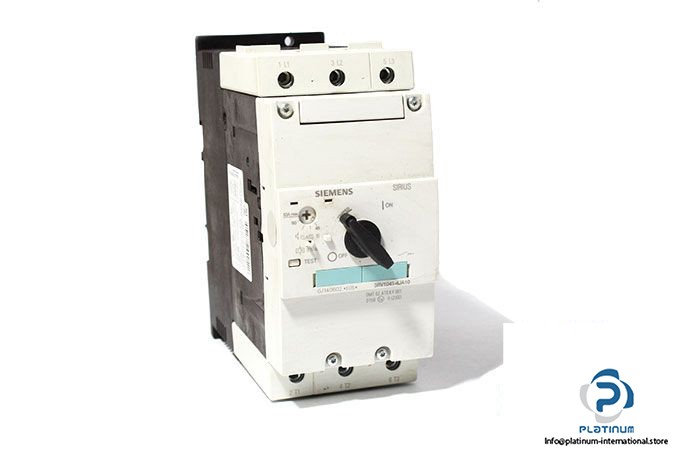

SIEMENS SIRIUS 3RV1 041-4JA10 MOTOR PROTECTION CIRCUIT BREAKER

The Siemens Sirius 3RV1 041-4JA10 motor protection circuit breaker offers advanced protection and performance for industrial motors. With a compact size and high breaking capacity, it is ideal for demanding applications requiring reliable motor circuit protection.

Manufacturer: Siemens
Type: Motor Protection Circuit Breaker
Family: Sirius
Model: 3RV1 041-4JA10
Successor Type: 3RV2031-4JA10
REF No.: 4 011209 287105
Designed For: Motor Protection

Technical Information

• Size: S3
• Number of Poles: 3
• Rated Current: 63 A
• Range Adjustable Current: 45 / 63 A
• Rated Operating Voltage: 690 V AC
• Rated Surge Voltage (Uimp): 6 kV
• Operating Power: 30 kW
• Breaking Capacity (Icu):
  – 100 kA at 240 V AC
  – 50 kA at 400 V AC
  – 6 kA at 690 V AC
• Terminal Type: Screw Terminals
• Design Release: Thermomagnetic
• Dimensions (W x D x H): 70 x 174 x 165 mm
• Protection Class: IP20
• Trip Class: Class 10
• Operating Temperature: -20 / 60 °C
