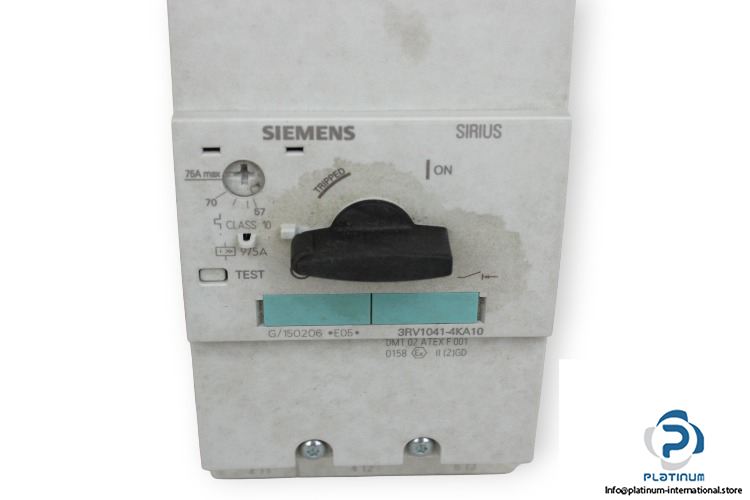

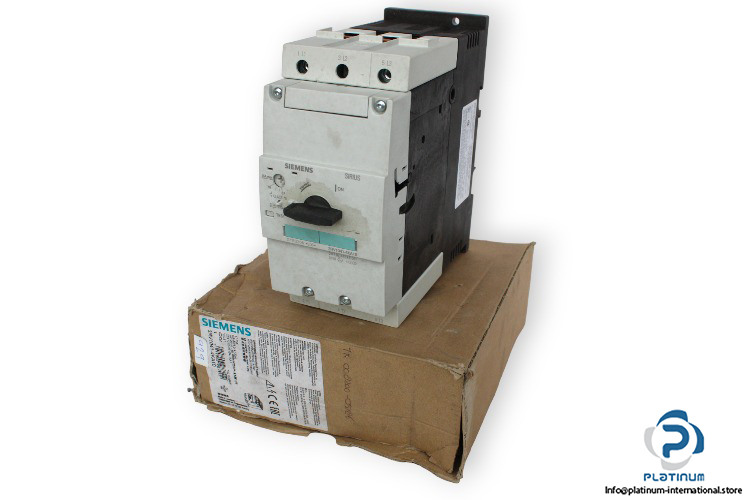

SIEMENS 3RV1 041-4KA10 CIRCUIT BREAKER
The Siemens 3RV1 041-4KA10 circuit breaker is a robust and reliable protection device designed for industrial power systems. With high surge voltage resistance, thermomagnetic short-circuit protection, and a wide operating temperature range, it ensures dependable operation even in demanding environments. Its compact design with screw and snap-on mounting allows for easy installation on 35 mm DIN rails.
Manufacturer: Siemens
Type: Circuit Breaker
Model: 3RV1 041-4KA10

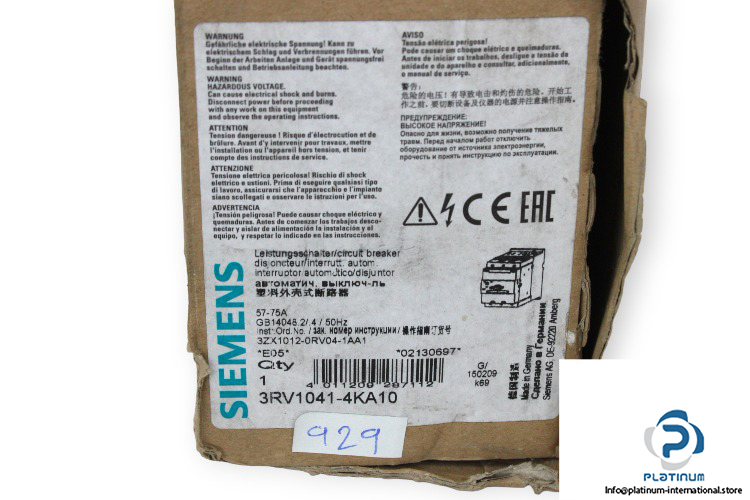

INST ORD NO: 3ZX1012-0RV04-1AA1
REF NO: 02130697
Technical Information
- Operating Voltage: 690 V
- Power Loss: At AC in hot operating state 38 W, per pole 12.7 W
- Surge Voltage Resistance: 6000 V
- Fastening Method: Screw and snap-on mounting onto 35 mm DIN rail
- Operating Temperature: -20 / +70 °C
- Short-Circuit Protection: Thermomagnetic overcurrent and short-circuit release
- Electrical Connection: Screw-type terminals with box terminals
- Number of Poles (Main Circuit): 3
- Degree of Protection: IP20
- Type of Protection: Explosion protection EX
- Dimensions (L x W x H): 165 x 70 x 174 mm
