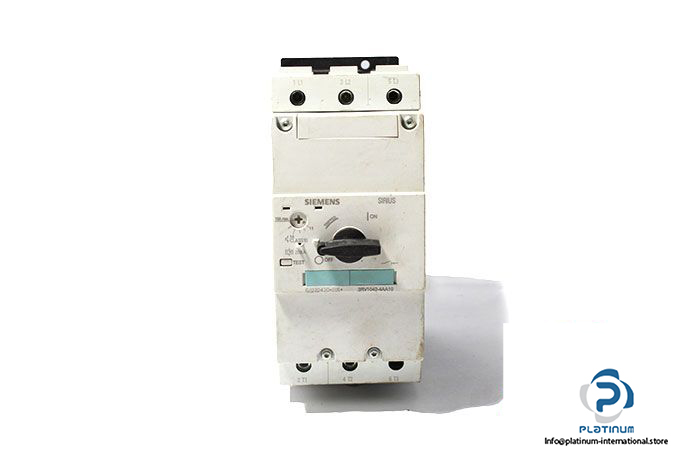

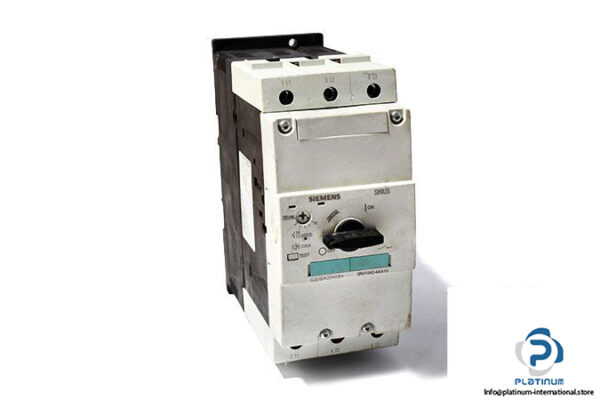

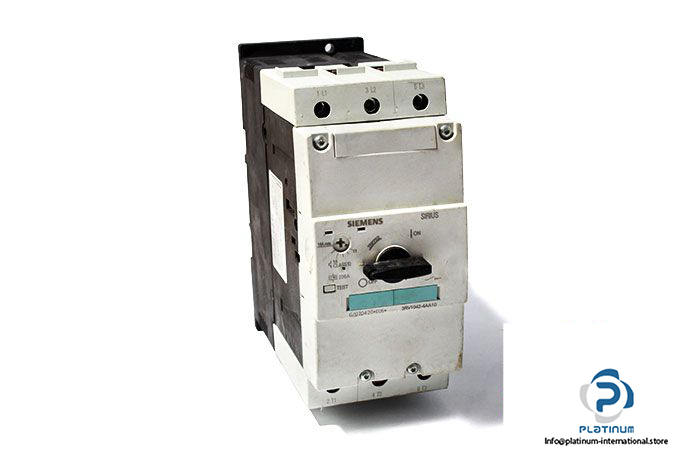

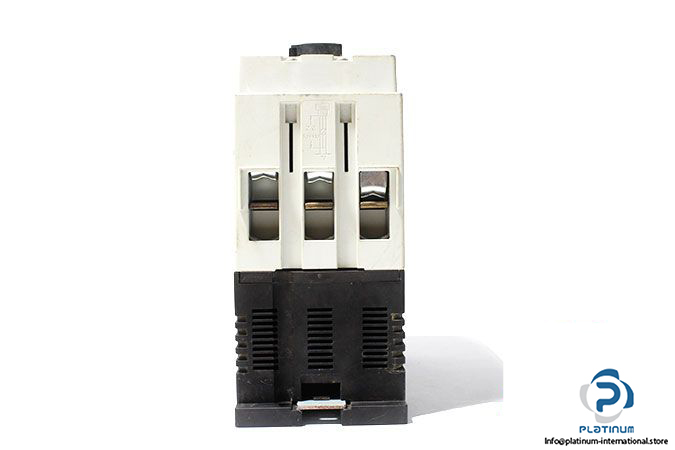

SIEMENS SIRIUS 3RV1042-4AA10 CIRCUIT BREAKER

The Siemens Sirius 3RV1042-4AA10 is a high-performance motor protection circuit breaker designed to deliver reliable overload and short-circuit protection in demanding industrial applications. Featuring thermomagnetic release technology, compact S3 size, and adjustable current settings, this breaker ensures optimal safety and operational efficiency.

Manufacturer: Siemens
Type: Circuit Breaker
Family: Sirius
Model: 3RV1042-4AA10
INST ORD NO: 3ZX1012-0RV04-1AA1
Successor Type: 3RV2032-4TA10

Technical Information

• Designed For: Motor Protection
• Size: S3
• Number of Poles: 3
• Rated Current: 16 A
• Range Adjustable Current: 11 / 16 A
• Rated Operating Voltage: 690 V AC
• Rated Impulse Voltage (Uimp): 6 kV
• Operating Power: 7.5 kW
• Breaking Capacity (Icu):
  • 100 kA at 240 V AC
  • 100 kA at 400 V AC
  • 12 kA at 690 V AC
• Service Frequency: 50/60 Hz
• Terminal Type: Screw Terminals
• Design Release: Thermomagnetic
• Dimensions (W x D x H): 70 x 174 x 165 mm
• Protection Class: IP20
• Trip Class: Class 10
• Operating Temperature: -20 / 60 °C
