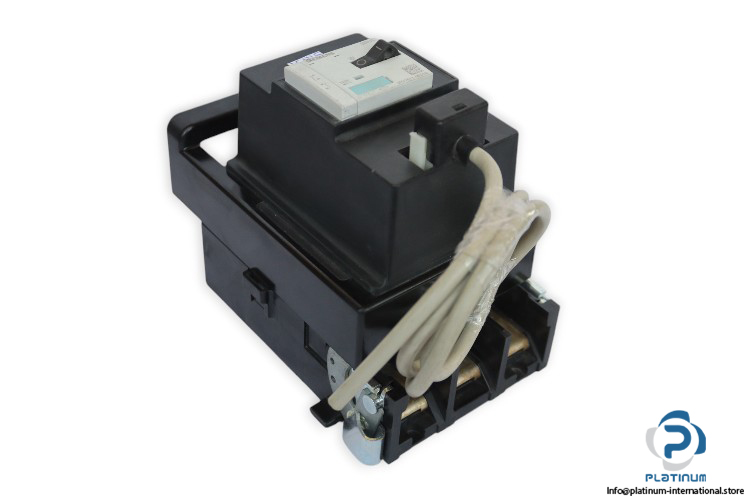

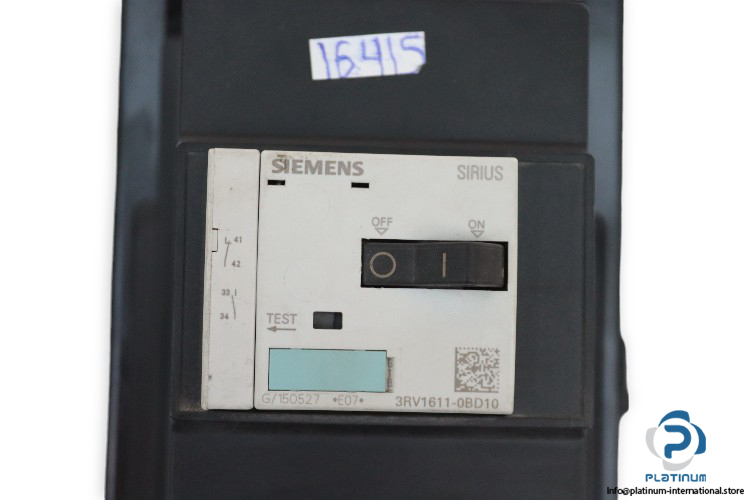

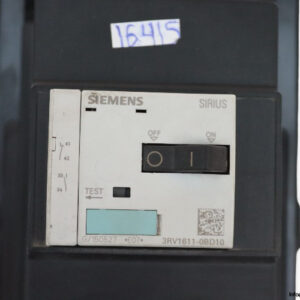

SIEMENS 3RV1611-0BD10 CIRCUIT BREAKER WITH ATTACHMENTS
The Siemens 3RV16110BD10 from the SIRIUS series is a high-performance circuit breaker designed for efficient and reliable protection of electrical equipment. It offers superior short-circuit breaking capacity and robust insulation, making it ideal for demanding industrial applications.
Manufacturer: SIEMENS
Type: Circuit Breaker
Model: 3RV1611-0BD10
Brand Name: SIRIUS
Short Name: 3RV1
Technical Information
- Rated Operational Voltage: 690 V AC/DC
- Rated Operational Current: 0.2 A
- Frequency: 50 / 60 Hz
- Power Loss: 1.8 W
- Rated Insulation Voltage: 690 V
- Pole No.: 3
- Auxiliary Contact: 1 NO + 1 NC
- Rated Ics: 100 kA
- Rated Icu: 100 kA
- Protection Class: IP20
- Ambient Temperature: -20 / 60 °C
- Dimensions (mm): 90 x 45 x 75

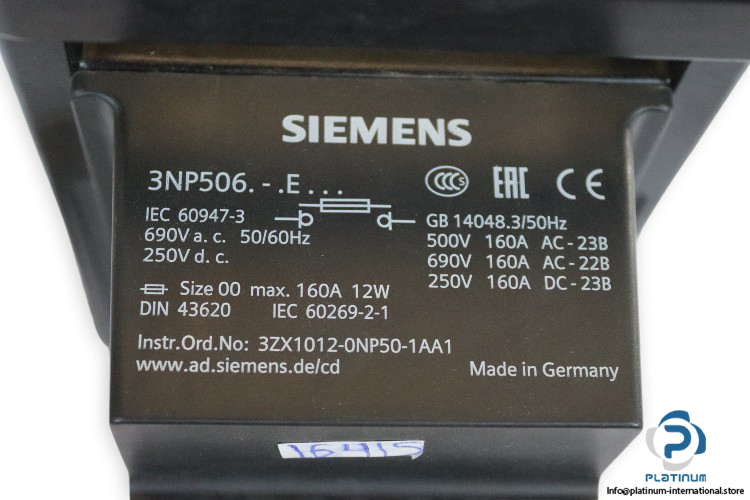

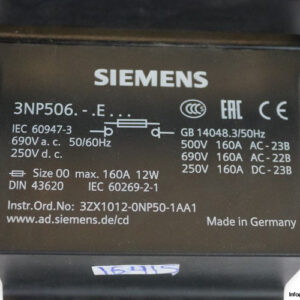

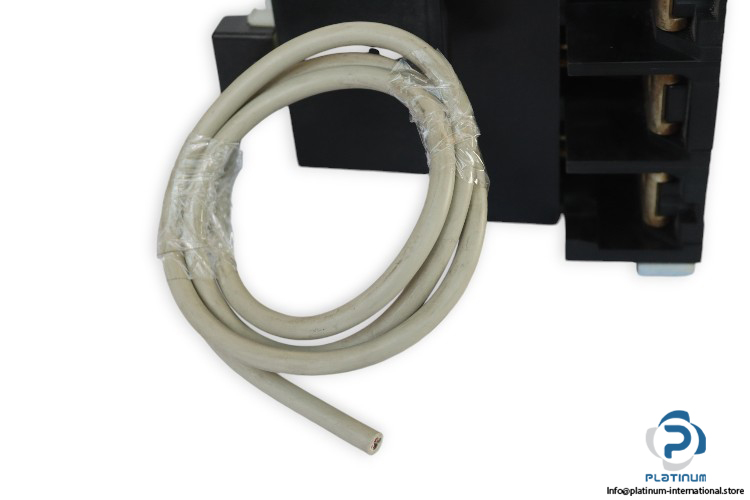

Attachment: SIEMENS 3NP5060-0EB86 FUSE SWITCH DISCONNECTOR
Order No.: 3ZX1012-0NP50-1AA1
Brand Name: SENTRON
Short Name: 3NP5
- Rated Operational Voltage: 690 V AC / 250 V DC
- Rated Operational Current: 160 A
- Frequency: 50 / 60 Hz
- Power: 12 W
- Power Loss: 2.66 W
- Rated Insulation Voltage: 690 V
- Auxiliary Contact: 1 NO + 1 NC
- Fuse Type: LV HRC Fuse
- Fuse Link Size: NH000, NH00 3SE4235
- Pole No.: 3
- Protection Class: IP00
- Ambient Temperature: -25 / 55 °C
- Dimensions (mm): 196 x 134 x 161.5

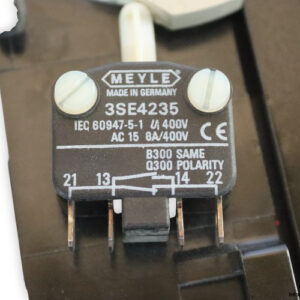

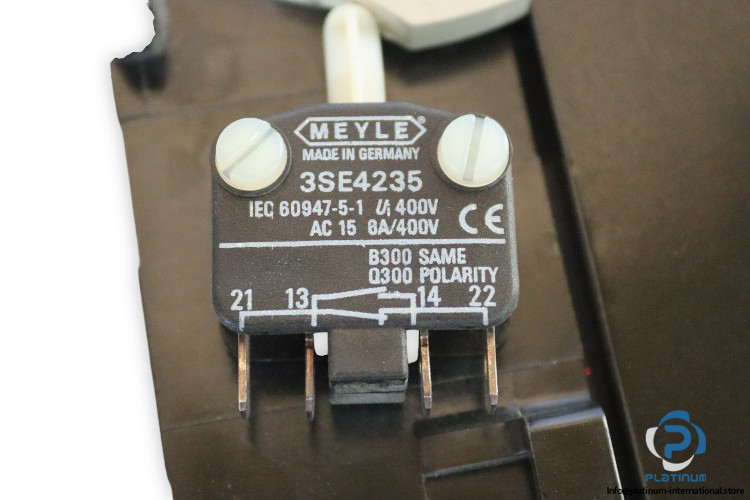

Attachment: SIEMENS 3SE4235 MINIATURE LIMIT SWITCH
Short Name: 3SE4
- Insulation Voltage: 400 V AC
- Contact: 1 NO + 1 NC
- Contact Ratings: 400 V AC / 6 A
- Protection Class: IP00/IP40
- Ambient Temperature: -20 / 85 °C
