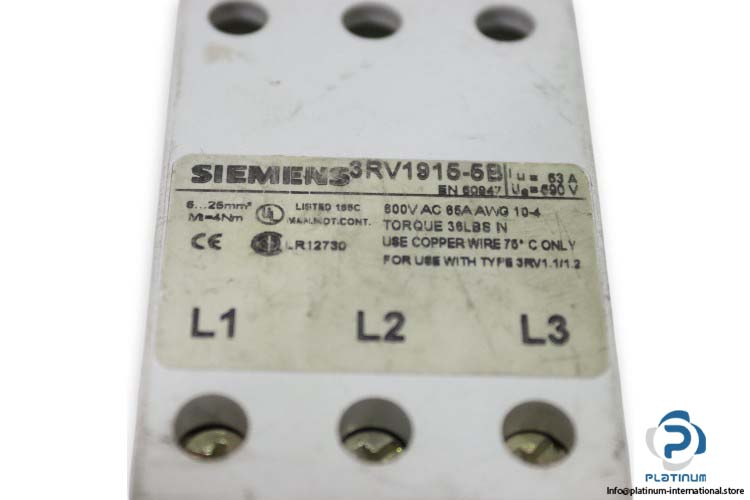

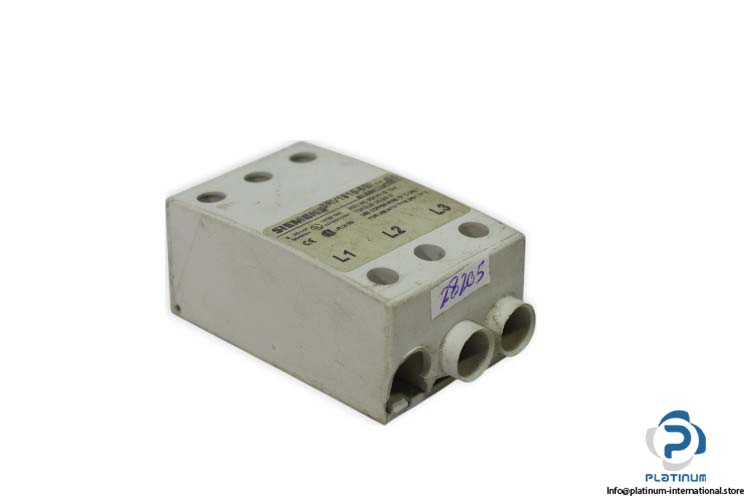

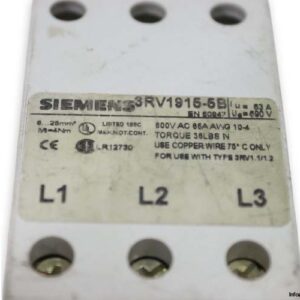

SIEMENS 3RV1915-5B SIRIUS SUPPLY TERMINAL
The Siemens 3RV1915-5B is a robust supply terminal from the SIRIUS series, engineered for reliable and compact three-phase feeder connections. Designed for compatibility with S00 and S0 size circuit breakers, it ensures high insulation performance and safety in industrial power distribution systems.
Manufacturer: Siemens
Type: Supply Terminal
Model: 3RV1915-5B
Product Brand Name: SIRIUS
Product Designation: Three-phase Feeder Terminal
Technical Information
- Size of the Circuit-Breaker: S00, S0
- Protection Class IP on the Front: IP20
- Insulation Voltage: 690 V
- Ambient Temperature During Operation: -20 / 60°C
- Dimensions (H x W x D): 73 x 44 x 48 mm
