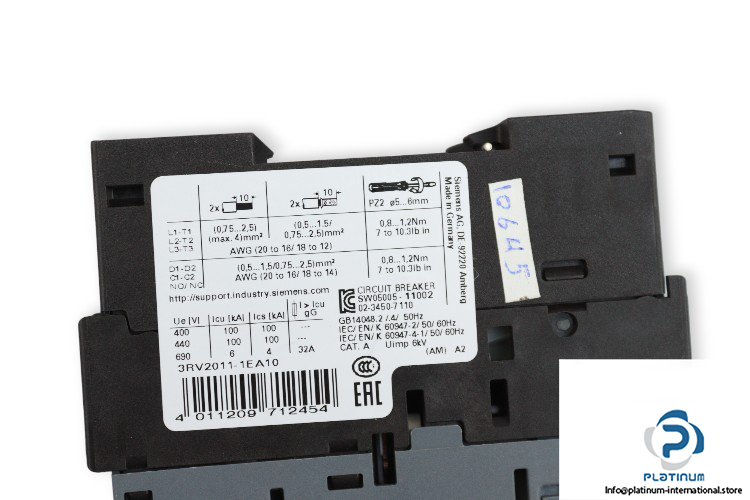

Manufacturer: Siemens
Type: CIRCUIT BREAKER (THERMAL)
Part No.: 3RV2011-1EA10

Used for: Motor Protection
Size: S00
Brand Name: SIRIUS
Product Type Designation: 3RV2
Rated Operational Voltage (Ue): 20 – 690 V
Rated Operational Current (In): 4 A
Rated Current Range: 2.8 – 4 A
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 690 V AC
Response Value Current Of Instantaneous Short-Circuit Trip Unit: 52  A
Power loss for rated value of the current at hot operating state: 7.25 W
Rated Operational Power AC-3:
230 V: 0.8 kW
400 V: 1.5 kW
500 V: 2.2 kW
690 V: 3 kW
Rated Service Breaking Capacity (Ics)@ 400 -@690: 100 kA
Rated Ultimate Breaking Capacity (Icu)@ 400 -@690: 100 kA
No. of Poles: 3-Pole
Standard: IEC/EN/K60947-2/50/60Hz _ IEC/EN/K60947-4-1/50/60Hz
Protection Class: IP20
Ambient Temperature: -20 … 60 °C
Dimensions: 97 x 45 x 97 mm
Tightening torque: 0.8 – 1.2 N.m
