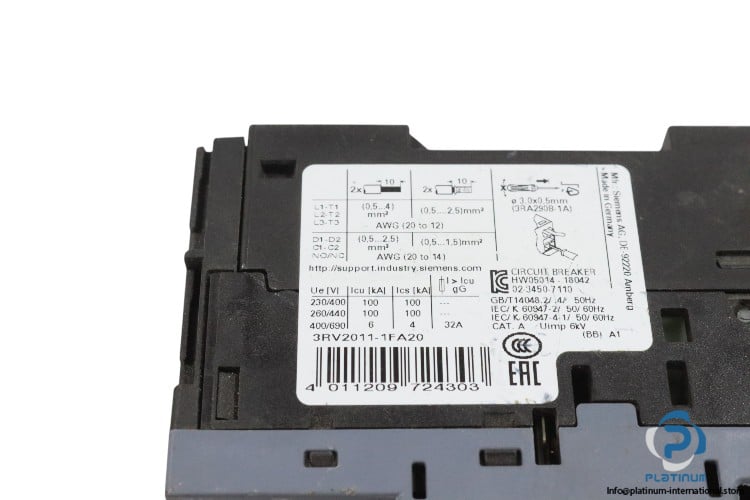

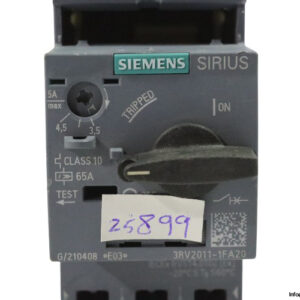

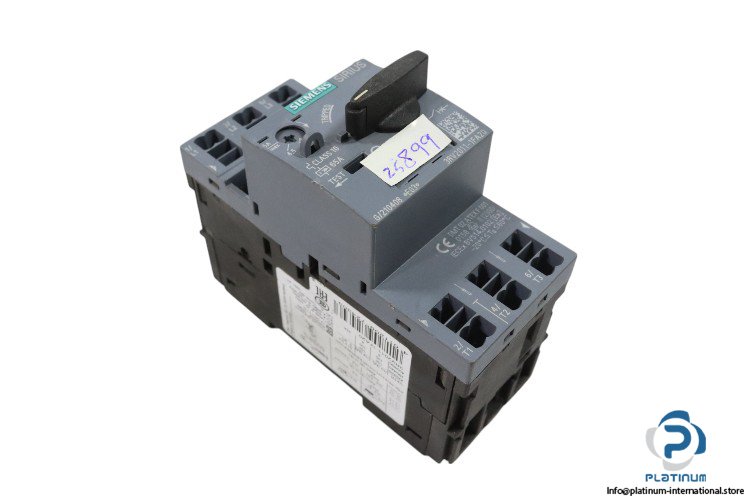

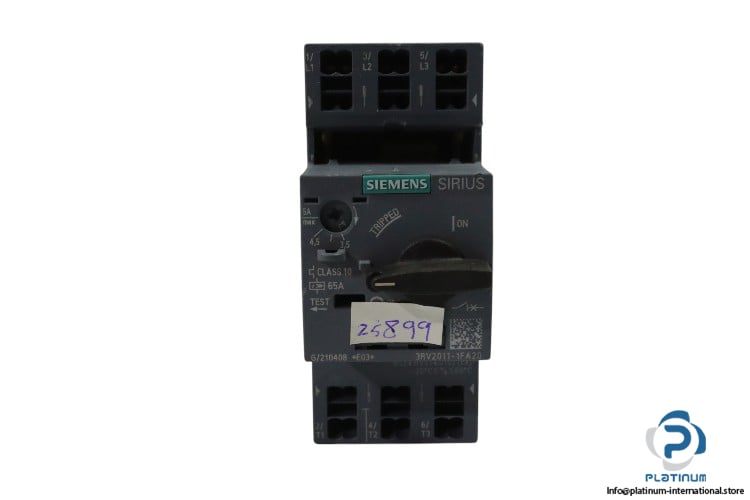

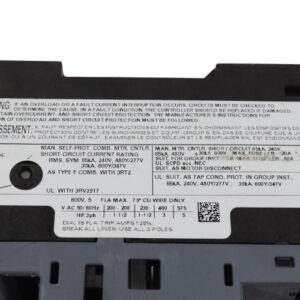

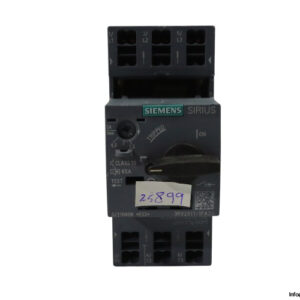

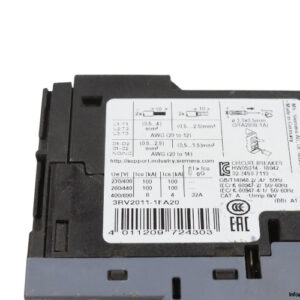

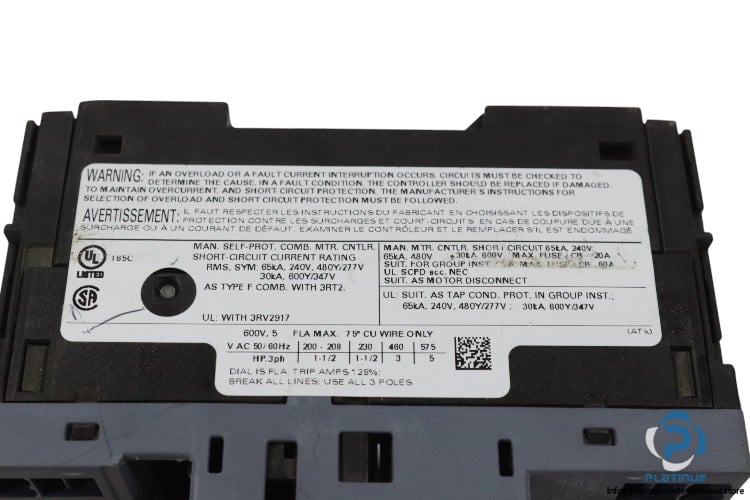

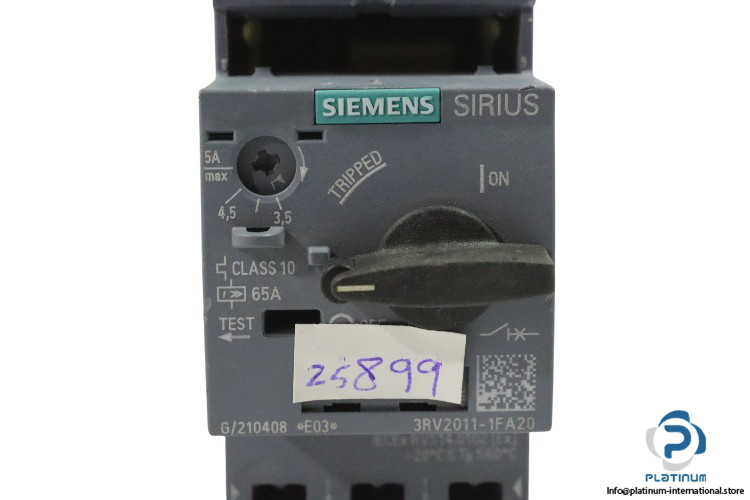

Siemens 3RV20111FA20 “ Circuit Breaker
The Siemens 3RV20111FA20 is a highly reliable circuit breaker from the SIRIUS brand, designed for motor protection in industrial systems. With a robust rated operational voltage of 690 V AC and current ratings up to 5 A, this breaker provides protection against overloads and short circuits, ensuring safe operation of your electrical installations.
- Manufacturer: Siemens
- Type: Circuit Breaker
- Model No. (MNR): 3RV20111FA20
- Brand Name: SIRIUS
- Used for: Motor Protection
- Size: S00
- Product Type Designation: 3RV2
Technical Information:
- Rated Operational Voltage (Ue): 690 V AC
- Rated Operational Current (Ie): 5 A
- Adjustable Current Response Value: 3.5 to 5 A
- Frequency: 50 to 60 Hz
- Rated Impulse Voltage (Uimp): 6 kV
- Rated Insulation Voltage (Ui): 690 V AC
- Response Value Current of Instantaneous Short-Circuit Trip Unit: 65 A
- Rated Operational Power AC-3:
- 230 V: 1.1 kW
- 400 V: 1.5 kW
- 500 V: 2.2 kW
- 690 V: 4 kW
- Rated Service Breaking Capacity (Ics) at 230/400 V: 100 kA
- Rated Ultimate Breaking Capacity (Icu) at 230/400 V: 100 kA
- No. of Poles: 3
- Protection Class: IP20
- Ambient Temperature: -20 to 60 °C
- Dimensions: 106 x 45 x 97 mm
