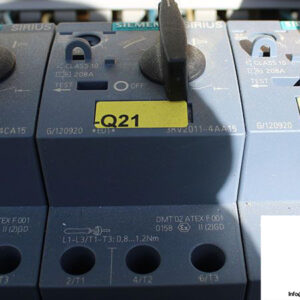

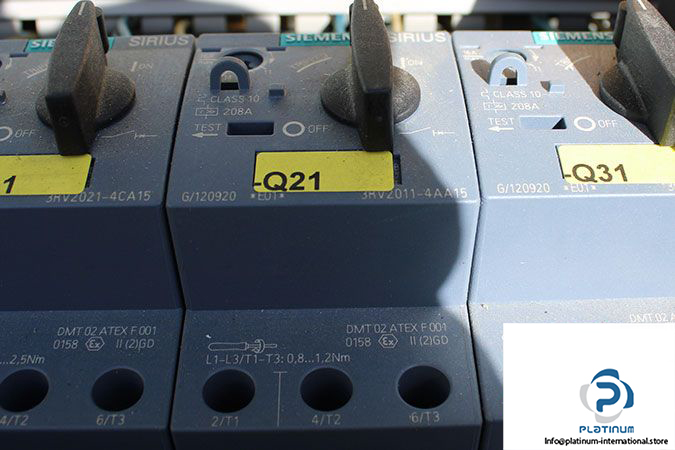

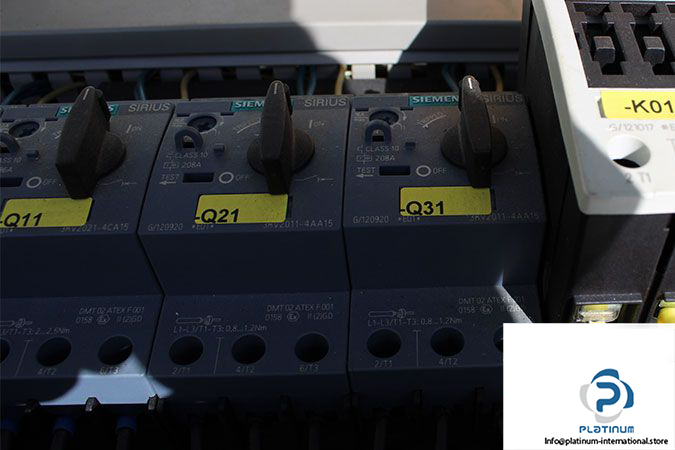

SIEMENS 3RV2 011-4AA15 CIRCUIT BREAKER

The Siemens 3RV2 011-4AA15 is a robust and efficient circuit breaker designed for reliable motor protection and overload prevention in industrial electrical systems. Built for durability and precision, it ensures optimal performance across a wide voltage range and is suitable for demanding environments.

Manufacturer: Siemens
Type: Circuit Breaker
Model: 3RV2 011-4AA15
Ref No.: G/120920

Technical Information

• Operating Voltage: 20 / 690 V
• Operating Frequency: 50 / 60 Hz
• Operational Current: 16 A
• Surge Voltage Resistance Rated Value: 6 kV
• Power Loss at AC in Hot Operating State: 9.25 W
• Power Loss at AC in Hot Operating State Per Pole: 3.1 W
• Number of Poles for Main Current Circuit: 3

Operating Power

• At AC-3:
  • At 230 V Rated Value: 4 kW
  • At 400 V Rated Value: 5 kW
  • At 500 V Rated Value: 5 kW
  • At 690 V Rated Value: 11 kW
• At AC-3e:
  • At 230 V Rated Value: 4 kW
  • At 400 V Rated Value: 5 kW
  • At 500 V Rated Value: 5 kW
  • At 690 V Rated Value: 11 kW

• Operation Temperature: -20 / 60 °C
• Protection Class: IP20
• Dimensions: 97 x 45 x 97 mm
