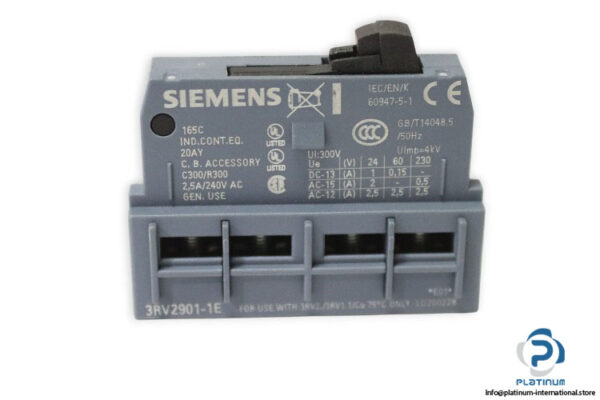

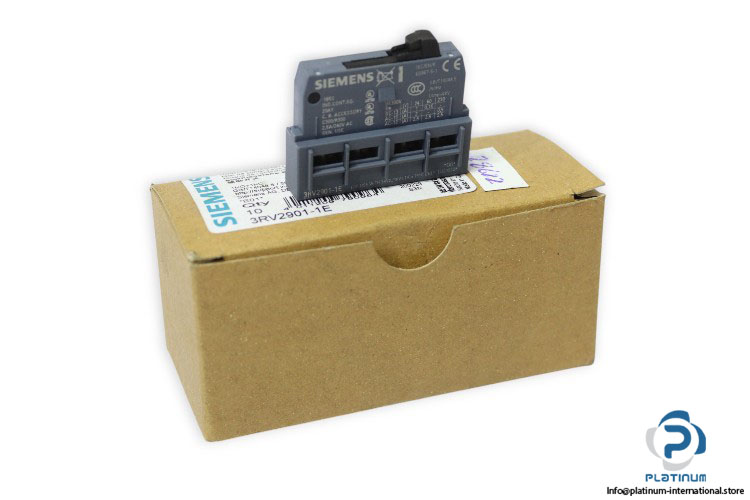

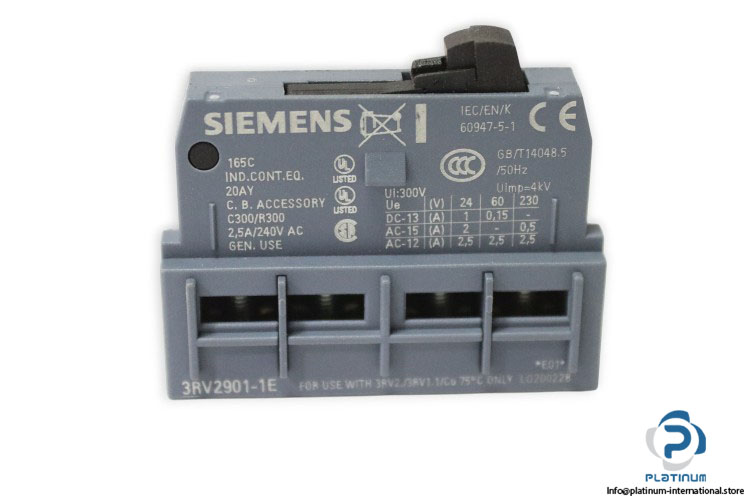

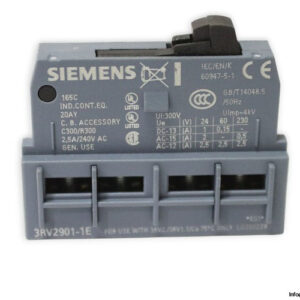

Siemens 3RV29011E Auxiliary Contact Block
The Siemens 3RV29011E Auxiliary Contact Block from the SIRIUS series is designed as a front-mounted transverse auxiliary switch, offering reliable signaling and control functions for circuit breakers. Built for durability and precision, it provides safe operation in industrial environments with IEC/EN 60947-5-1 compliance.
Manufacturer: Siemens
Type: Auxiliary Contact Block / Transverse Aux. Switch
Model: 3RV29011E
Series: 3RV2
Product Brand Name: SIRIUS
Product Designation: Auxiliary switch, transverse on the front
Design of the Product: Transverse auxiliary switches
Technical Information
- Size of Circuit-Breaker: S00, S0
- Contact Configuration: 1 NO, 1 NC
- Electrical Ratings: Up to 2.5 A (AC-12), AC-15 / DC-13 variants
- Insulation Voltage: 300 V
- General Use: 2.5 A / 240 VAC
- Surge Resistance: 4 kV
- Terminals: Screw-type for 0.5“2.5 mm² conductors
- Operating Temperature: -20 °C to +60 °C
- Mounting Type: Front-mounted transverse, plug-in
- Standard: IEC/EN/K 60947-5-1
- Protection Class: IP20
- Dimensions: 45 x 12 x 17 mm
