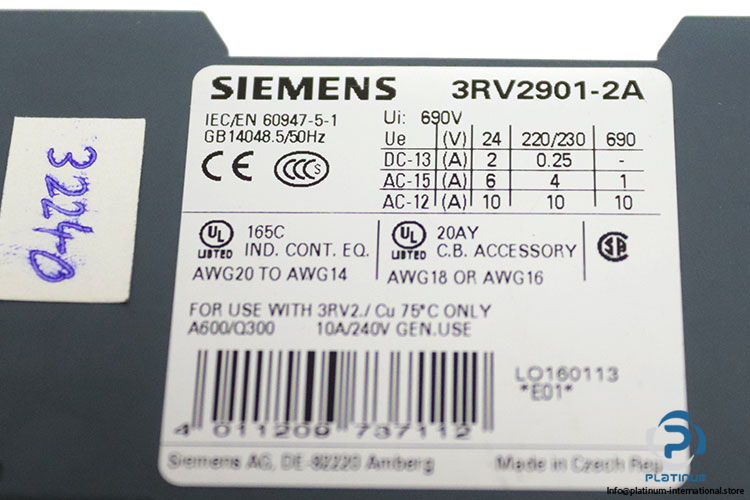

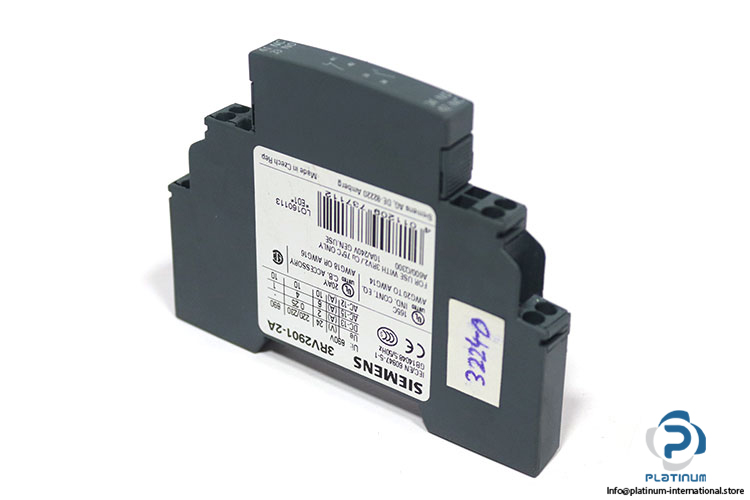

SIEMENS 3RV2901-2A Auxiliary Switch
The SIEMENS 3RV2901-2A Auxiliary Switch is a reliable lateral auxiliary module designed for use with SIRIUS 3RV2 motor protection circuit breakers. It provides instant switching feedback through one NO and one NC contact and is built for consistent performance in industrial electrical systems.
Manufacturer: SIEMENS
Type: Auxiliary Switch
MRN: 3RV2901-2A
Technical Information
- For Use With: 3RV2 / CU
- Product Brand Name: SIRIUS
- Product Category: Auxiliary switch
- Product Designation: Auxiliary switch
- Design: Lateral auxiliary switches
- Circuit Breaker Size: S00, S0, S2, S3
- Display Version: LED No
- Rated Insulation Voltage: 690 V
- Degree of Pollution: 3
- Rated Surge Voltage Resistance: 6 kV
- Protection Class (Front): IP20

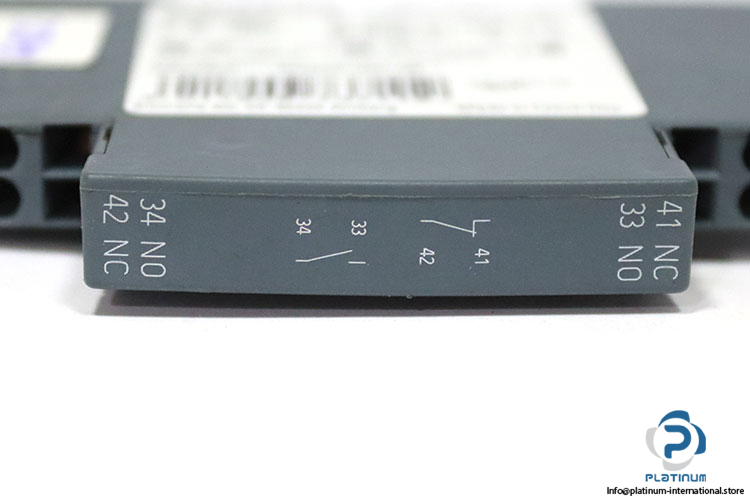

- Number of NC Contacts: 1 (instantaneous contact)
- Number of NO Contacts: 1 (instantaneous contact)
- Operational Current AC-12 at 24 V: 10 A
- Operational Current AC-12 at 230 V: 10 A
- Operational Current AC-12 at 400 V: 10 A
- Height: 90 millimeters
- Width: 9.5 millimeters
- Depth: 68 millimeters
- Protection Class According to IEC 60529: IP20
