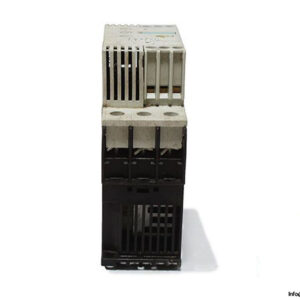

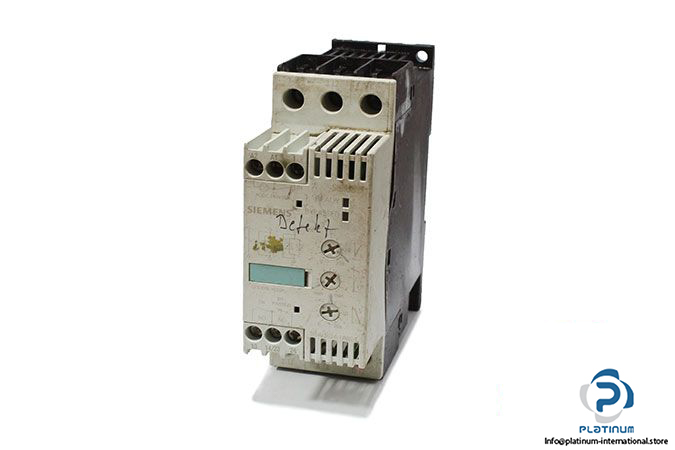

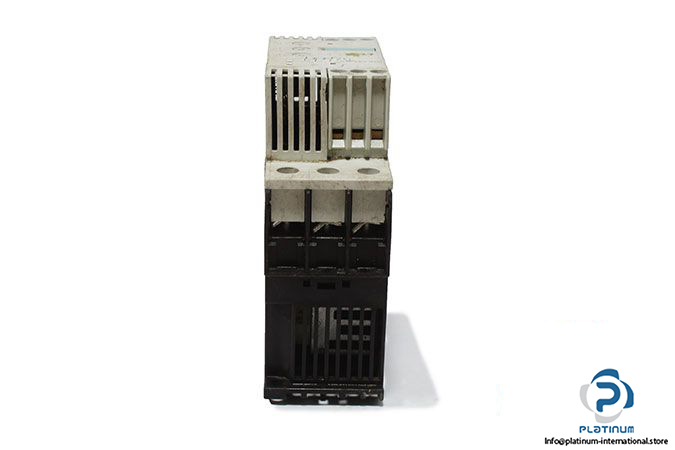

SIEMENS 3RW3 024-1AB04 SIRIUS SOFT STARTER
The Siemens 3RW3 024-1AB04 Sirius Soft Starter is designed to reduce mechanical stress on motors and improve operational efficiency. Ideal for smooth motor startup and shutdown, it ensures protection and longevity for your electrical systems. This compact unit offers a user-friendly solution for industrial motor control with advanced soft starting features.

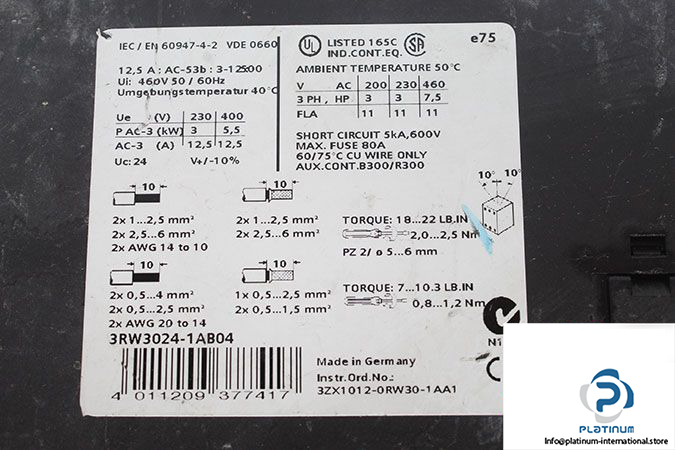

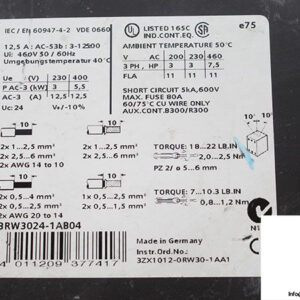

Manufacturer: Siemens
Type: Sirius Soft Starter
Model: 3RW3 024-1AB04
Inst. Ord. No.: 3ZX1012-0RW30-1AA1
S/N: 4 011209 377417
Standard: IEC/EN 60947-4-2 VDE 0660
Technical Information
- Control Voltage: 24 V DC/AC
- Supply Voltage: 200“460 VAC
- Additional Functions: Starting Current Limiter
- Electrical Connection: Screw Terminals
- Max. Motor Power at 400 V: 5.5 kW
- Starting/Stopping Time: 0 / 20 / 0 / 20 s
- Rated Continuous Current: 12.5 A
- Size: S0
- Protection Class: IP20
- Dimensions: 124 x 45 x 124 mm
