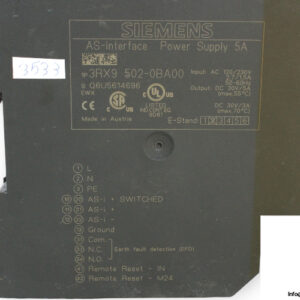

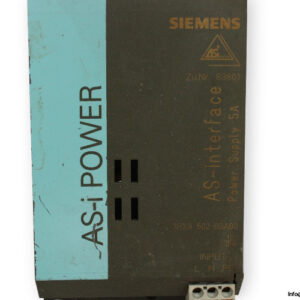

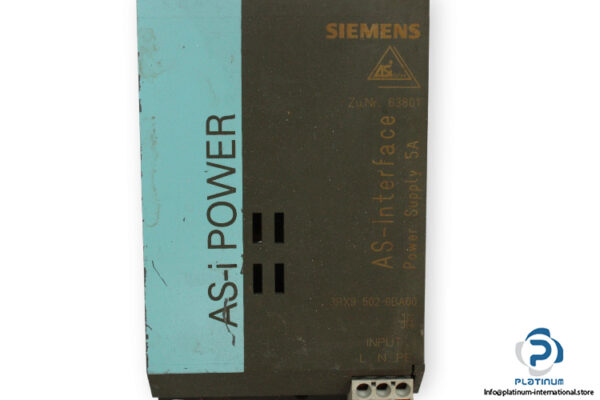

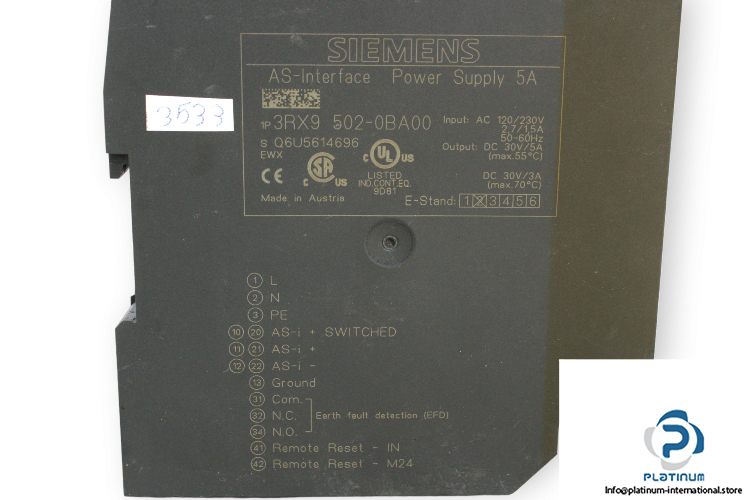

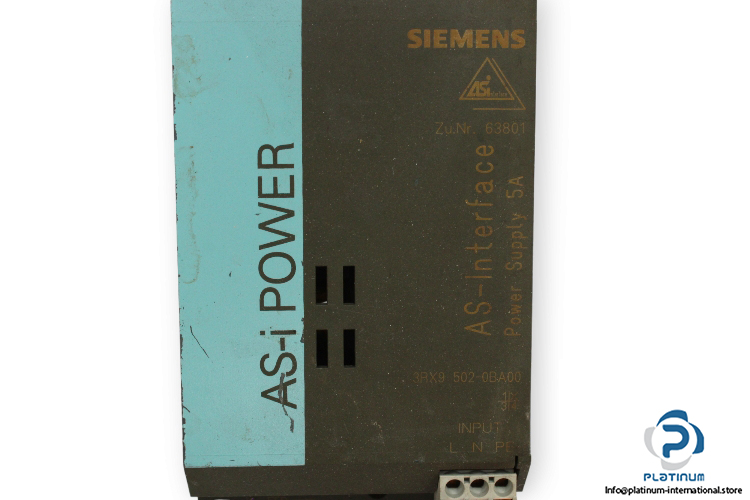

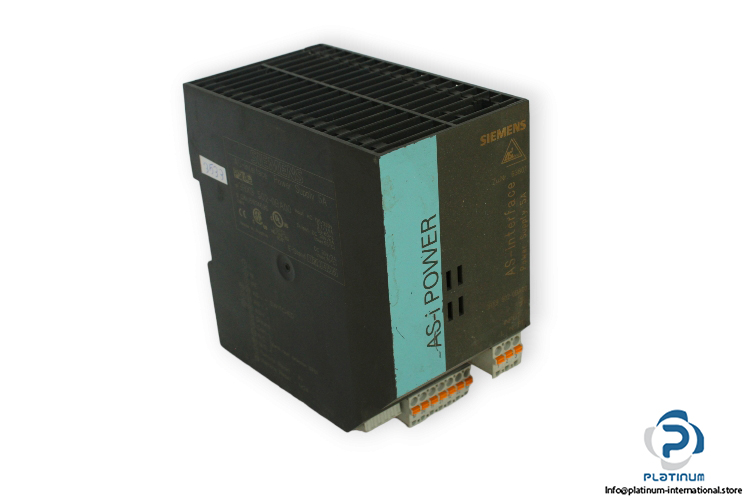

SIEMENS 3RX9502-0BA00 AS-INTERFACE POWER SUPPLY UNIT

The Siemens 3RX9502-0BA00 AS-Interface Power Supply Unit delivers reliable and efficient power conversion for industrial automation systems. Designed for dual-voltage AC input and stable 30 V DC output, it ensures consistent performance across a wide operating temperature range.

Manufacturer: Siemens
Type: AS-Interface Power Supply Unit
Part No.: 3RX9502-0BA00
SN: S Q6U5614696

Technical Information

• Input Voltage Nominal Value Range 1: 120 V AC
• Input Voltage Nominal Value Range 2: 230 V AC
• Input Voltage Range 1: 85 / 132 V AC
• Input Voltage Range 2: 176 / 253 V AC
• Mains Frequency Range: 47 / 63 Hz

• Output Voltage Rated Value: 30 V DC
• Rated Current: 5 A
• Efficiency / Heat Loss: 87%

• Operating Temperature: -10 / 70 °C
• Degree of Protection: IP20
• Dimensions (W x H): 70 x 125 mm
