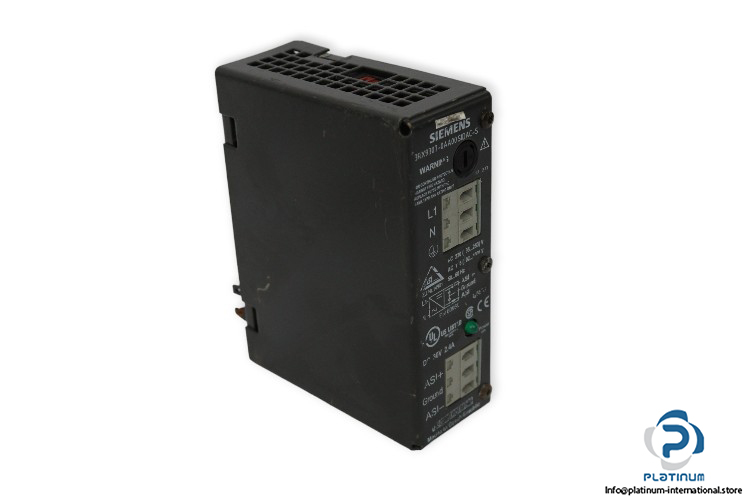

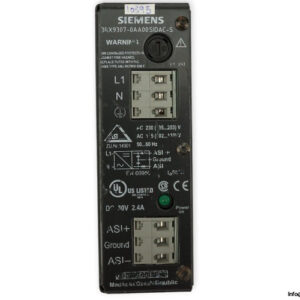

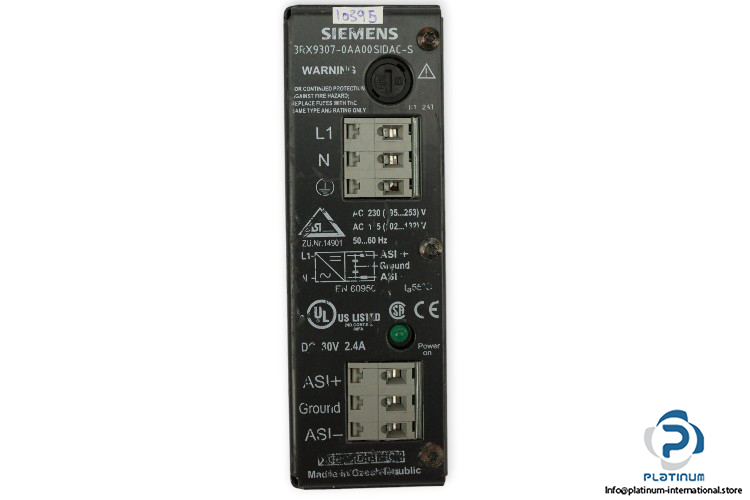

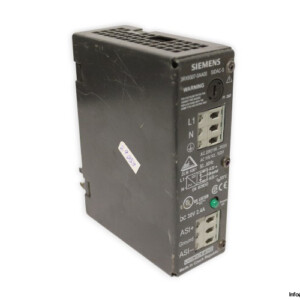

Siemens SIDAC-S 3RX9307-0AA00 Power Supply
The Siemens SIDAC-S 3RX9307-0AA00 is a high-performance industrial power supply designed to deliver stable 30 V DC output for control and automation systems. It provides reliable operation with wide input voltage ranges, high efficiency, and spring-loaded terminal connections for easy installation.
Manufacturer: Siemens
Type: Power Supply
MNR: 3RX9307-0AA00
Family: SIDAC-S
Technical information
- Input Voltage: 230 V AC (195 / 253 V AC), (102 / 132 V AC)
- Frequency: 50 / 60 Hz
- Input Connections: Spring-loaded terminal connection (0.8 / 2.5 mm²)
- Input Current: 10 A
- Output Voltage: 30 V DC (29.5 / 31.6 V DC)
- Output Current: 2.4 A
- Rated Power: 72 W
- Output Connection: Spring-loaded terminal connection (0.8 / 2.5 mm²)
- Protection Class: IP20
- Working Temperature: -25 / +55 °C
- Dimensions: 46 x 135 x 105 mm
