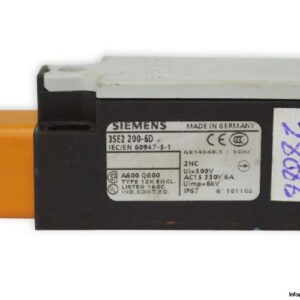

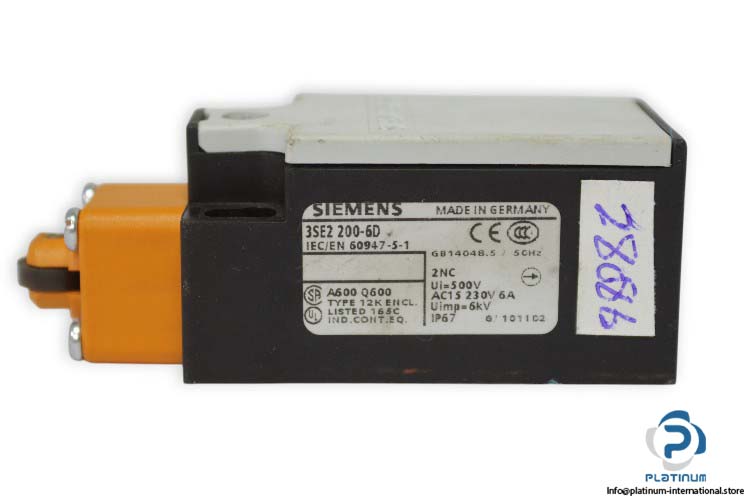

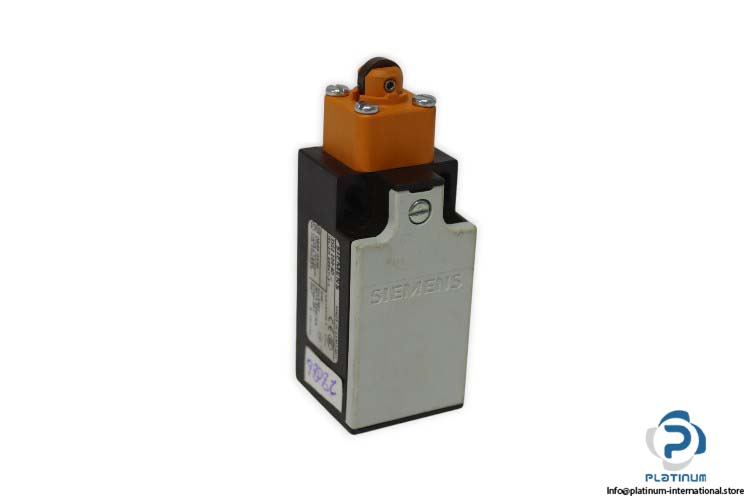

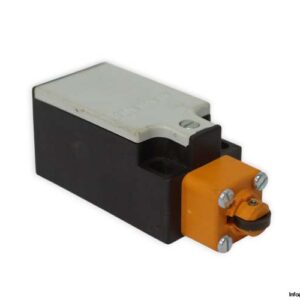

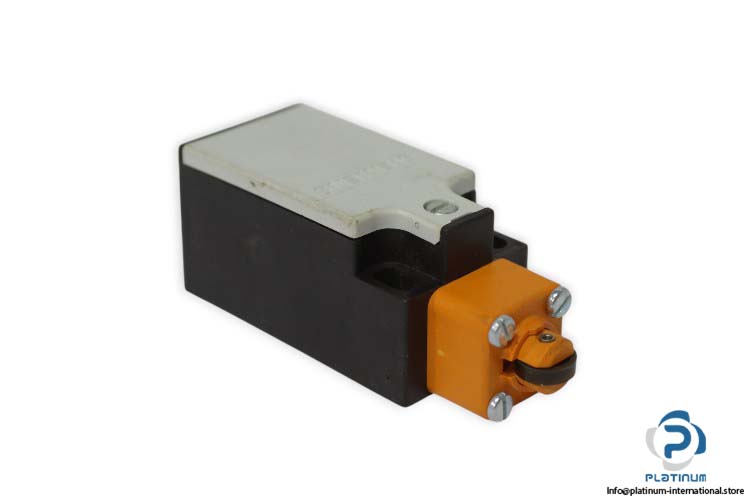

Manufacturer: SIEMENS

Type: Position Switch

Model: 3SE2200-6D

The Siemens 3SE2200-6D position switch is a robust and reliable component for industrial automation and safety applications. It features a roller plunger actuating element and a slow-action contact mechanism with positive opening functionality, ensuring secure and precise position detection. Designed with an IP67 protection rating, it is ideal for harsh environments and offers versatile mounting via screw fixing. This switch supports safety-related operations with dual normally closed contacts and is suitable for use in a wide temperature range.

Technical Information

• Type of Electrical Connection: Screw Terminal
• Design of the Actuating Element: Roller Plunger
• Shape of the Switch Head: Roller
• Design of the Switching Function: Positive Opening
• Circuit Principle: Slow-Action Contacts
• Number of Switching Contacts Safety-Related: 2
• Fastening Method: Screw Fixing
• Length of the Sensor: 81 mm
• Width of the Sensor: 31 mm
• Contact: 2 Normally Closed (2 NC)
• Protection Class IP: IP67
• Ambient Temperature: -30 … 85 °C
