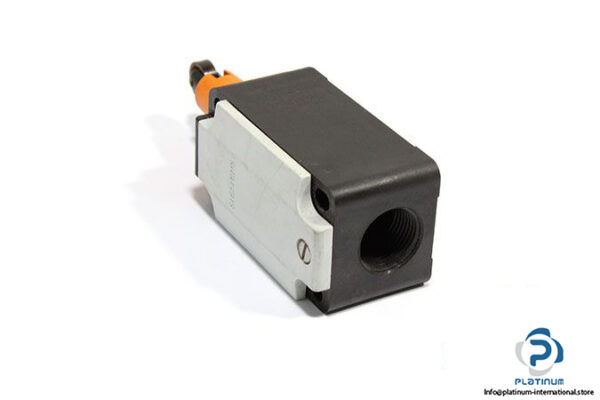

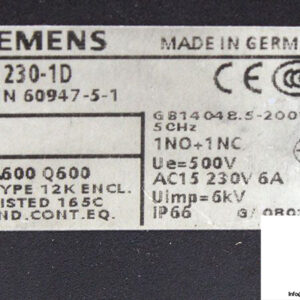

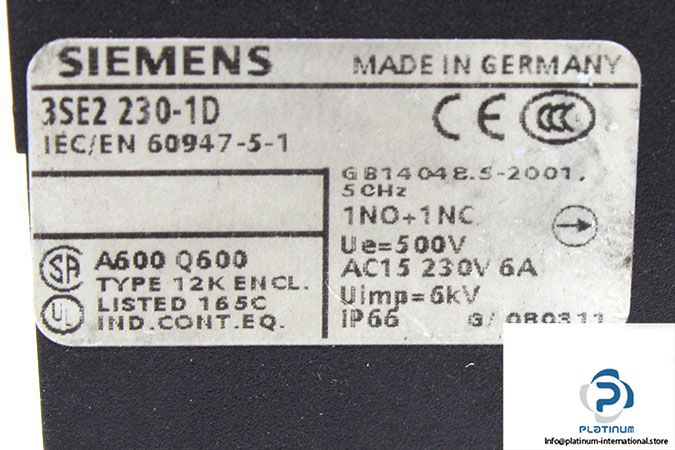

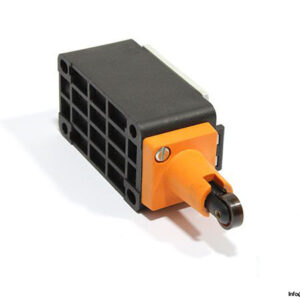

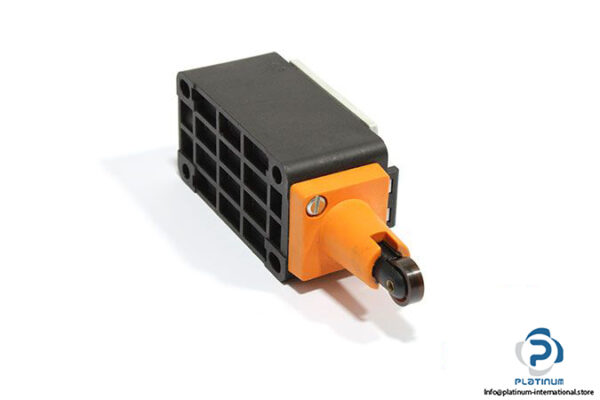

SIEMENS 3SE2230-1D POSITION SWITCH

The Siemens 3SE2230-1D is a robust and reliable position switch designed for precision detection in industrial automation systems. Built to IEC/EN 60947-5-1 standards, this device ensures dependable mechanical actuation and high durability in demanding environments.

Manufacturer: Siemens
Type: Position Switch
Model: 3SE2230-1D
Standard: IEC/EN 60947-5-1
Reference No.: GB14048.5-2001

Technical Information

• Design of the Switch Head: Roller Plunger
• Active Principle: Mechanical
• Switching Voltage (max.): 500 V
• Connection: M20 x 1.5
• Auxiliary Contacts: 1 Normally Open and 1 Normally Closed
• Fastening Method: Screw Fixing
• Protection Class: IP66
• Dimensions: 37 x 40 x 118 mm
• Ambient Operating Temperature: -30 / 85 °C
