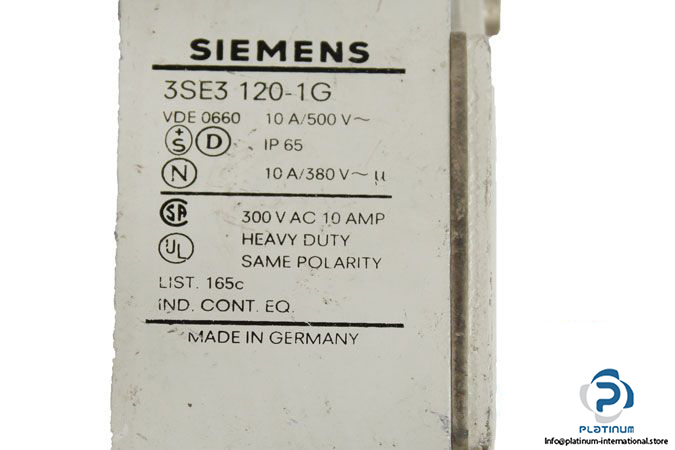

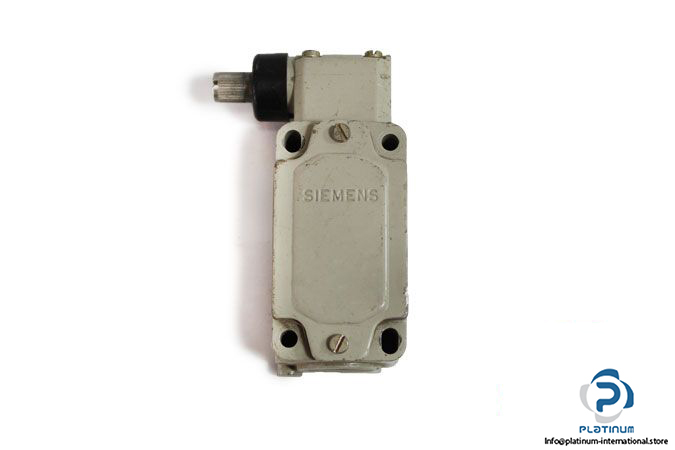

SIEMENS 3SE3120-1G LIMIT SWITCH
The Siemens 3SE3120-1G limit switch is designed for precise position detection and control in industrial automation systems. Built with metal-enclosed snap-action contacts and a roller crank actuator, it delivers reliable performance in demanding environments. This limit switch meets VDE 0660 standards and offers robust protection for long-term operation.
Manufacturer: Siemens
Type: Limit Switch
Model: 3SE3120-1G
Technical Information
- Rated Insulation Voltage: 500 VAC (Above 380 V AC same potential only)
- Conventional Thermal Current: 10 A
- Frequency: 40 / 60 Hz
- Contacts: Metal-enclosed snap-action, 1NO + 1NC, roller crank
- Standard: VDE 0660
- Dimensions: 5.1 x 15.2 x 7.6 mm
- Degree of Protection: IP65
