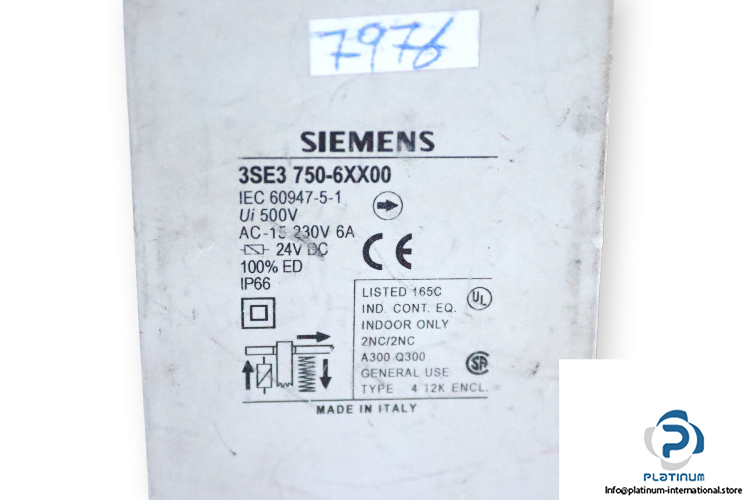

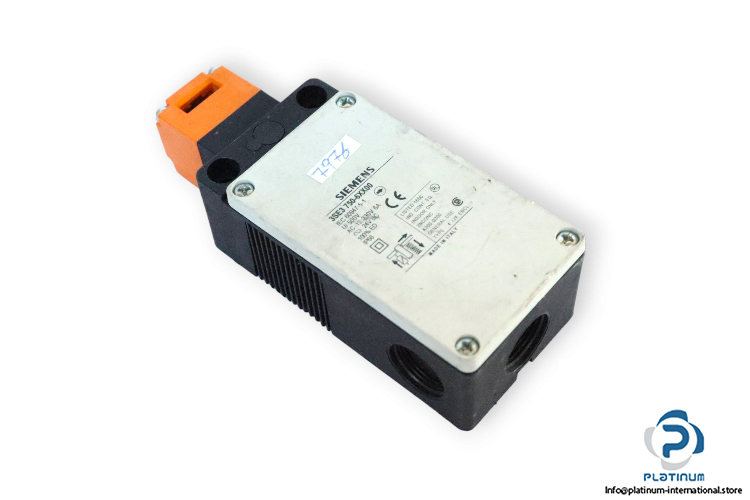

Manufacturer: Siemens
Type: Position Switch
MNR: 3SE37506XX00

Rated insulation voltage Ui: 500 V
Output Configuration: 2 NO+ 2 NC
Switching Voltage max.: 230 V AC
Switching Current max.: 6 A
Coil voltage: 24 V DC
Type of electrical connection: screw-type terminals
Mounting type: screw fixing
Protection Class: IP66
Standard: IEC 60947-5-1
Material of the enclosure: glass fiber reinforced thermoplastic
Ambient Operating Temperature: -30 … 70°C
Dimensions: 56 x 145 x 40 mm
