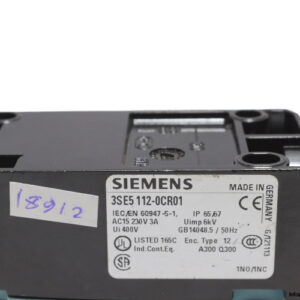

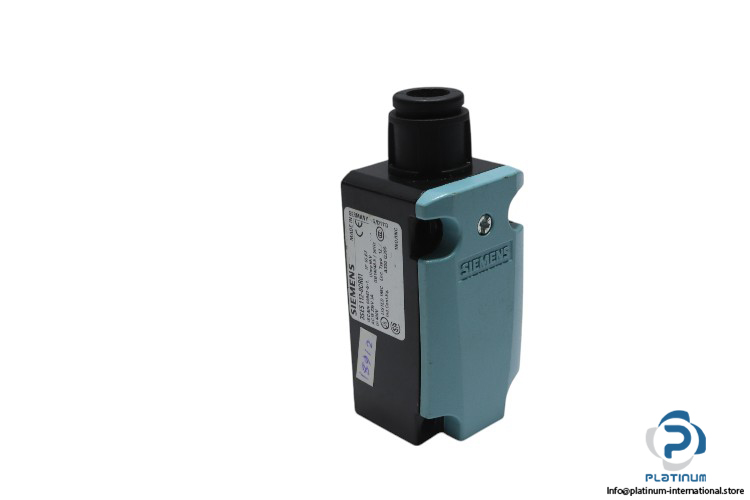

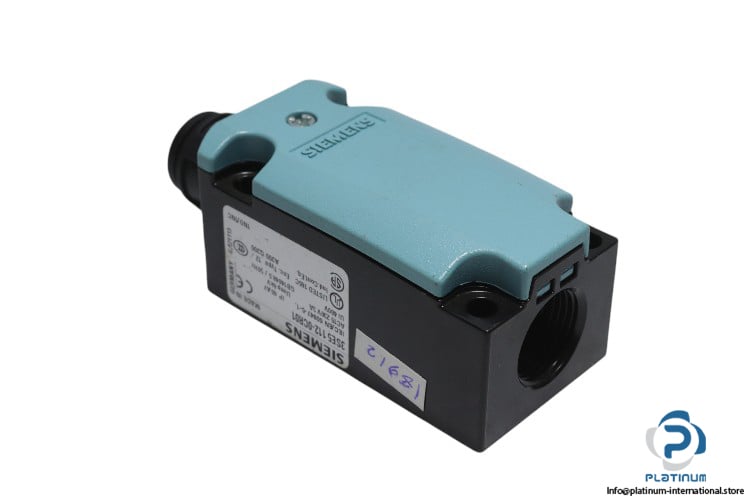

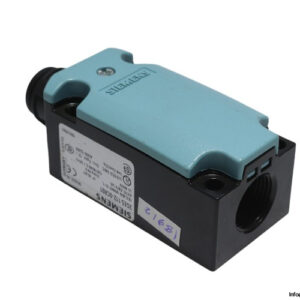

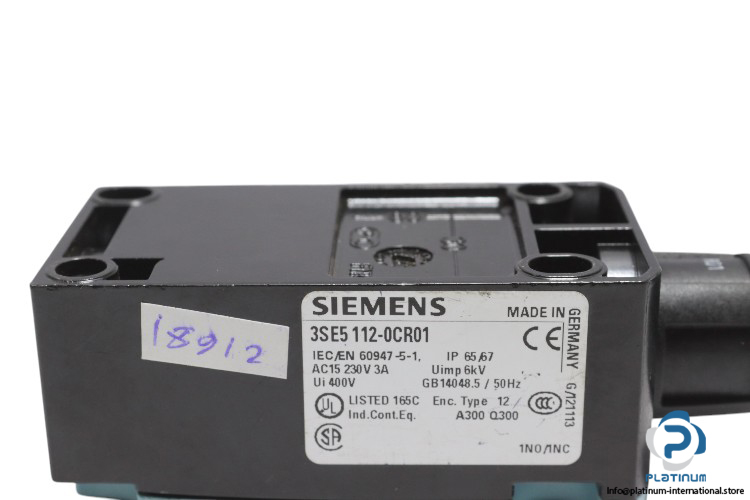

Siemens 3SE5112-0CR01 Position Switch Body
The **Siemens 3SE5112-0CR01 Position Switch Body**, part of the **SIRIUS** brand, is designed for accurate and reliable position detection. It features **1 Normally open contact (NO)** and **1 Normally closed contact (NC)**, making it versatile for a range of industrial applications. The switch operates with **snap-action contacts**, ensuring quick and precise switching. With a **rated insulation voltage of 400 V** and a **surge voltage resistance of 6 kV**, the switch is engineered to handle electrical surges. It supports an **operational current of 3 A at AC15 at 230 V**, providing reliable performance in industrial automation systems. The switch is connected via **screw-type terminals**, offering easy and secure wiring. With a **metal enclosure material** and **IP65/IP67 protection**, the switch is highly resistant to dust and water, ensuring its durability in harsh environments. Operating in an **ambient temperature range of -25 to +85 °C**, this position switch body is suitable for various applications and meets the **IEC/EN 60947-5-1** standard.
- Manufacturer: Siemens
- Type: Position Switch Body
- Model: 3SE5112-0CR01
Technical Information
- Insulation Voltage Rated Value (Ui): 400 V
- Surge Voltage Resistance Rated Value (Uimp): 6 kV
- Number of Auxiliary Contacts: 1 Normally open (NO), 1 Normally closed (NC)
- Operational Current AC15 at 230 V: 3 A
- Circuit Principle: Snap-action contacts
- Type of Electrical Connection: Screw-type terminals
- Operating Temperature: -25 to +85 °C
- Degree of Protection: IP65 / IP67
- Standard: IEC/EN 60947-5-1
- Material of the Enclosure: Metal
The **Siemens 3SE5112-0CR01 Position Switch Body** offers reliable and durable performance, ideal for a variety of industrial position detection applications.
