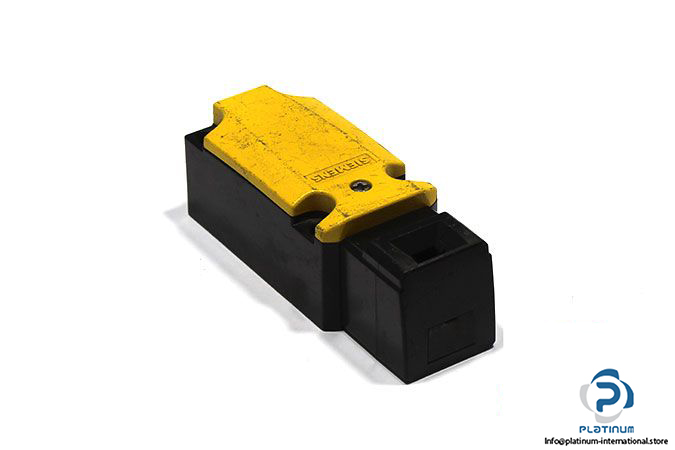

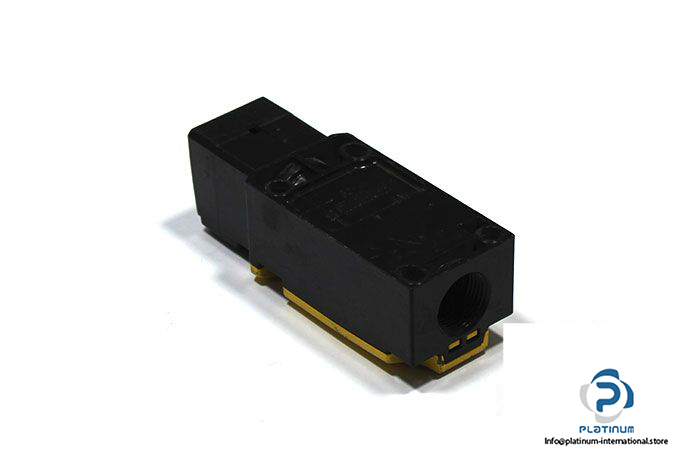

SIEMENS 3SE5112-1QV10 SAFETY POSITION SWITCH
The Siemens 3SE5112-1QV10 is a high-reliability safety position switch designed for industrial safety applications. Built to IEC/EN 60947-5-1 standards, it offers rugged performance with IP66/IP67 protection, slow-action contacts, and dependable electrical insulation for demanding environments.
Manufacturer: Siemens
Type: Safety Position Switch
Model: 3SE5112-1QV10

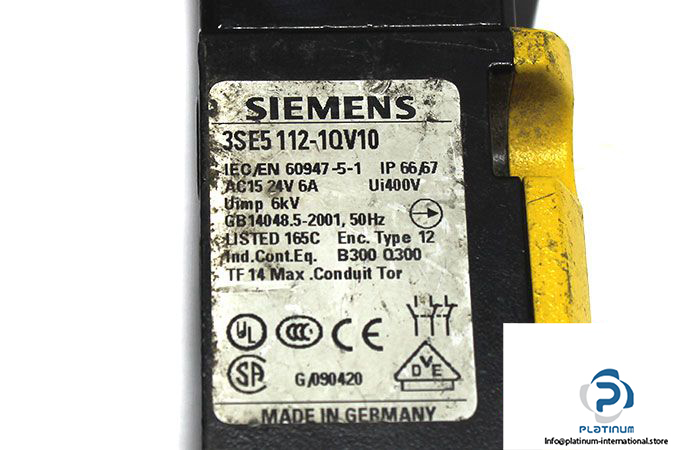

REF NO: G/090420 / GB14048.5-2001
Standard: IEC/EN 60947-5-1
Technical Information
- Thermal Current: 10 A
- Supply Voltage: 24 VDC
- Circuit Principle: Slow-action contacts
- Contact Type: 1 NO + 2 NC
- Protection Class: IP66 / IP67
- Rated Insulation Voltage: 400 V
- Degree of Pollution: Class 3
- Rated Surge Voltage Resistance: 0.8 kV
- Ambient Operating Temperature: -25 / 60°C
