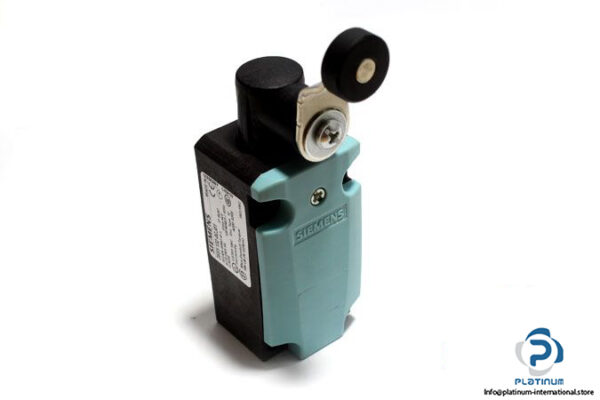

SIEMENS 3SE5132-0CJ01 LIMIT SWITCH
The Siemens 3SE5132-0CJ01 is a robust industrial limit switch designed for precise position detection and reliable operation in demanding environments. Featuring a twist roller lever actuator and snap-action contacts, it provides accurate switching and long service life, even under challenging conditions.
Manufacturer: Siemens
Type: Limit Switch
Model: 3SE5132-0CJ01
Technical Information
- Output Configuration: 1 Normally Open + 1 Normally Closed
- Contact Operation: Snap Action
- Actuator Type: Twist Roller Lever
- Switching Voltage max.: 230 V AC
- Contact Current max.: 3 A
- Connection: M20 x 1.5 Cable Entry
- Protection Class: IP66, IP67
- Dimensions: 40 x 37 x 130 mm
- Standard: IEC/EN 60947-5-1
