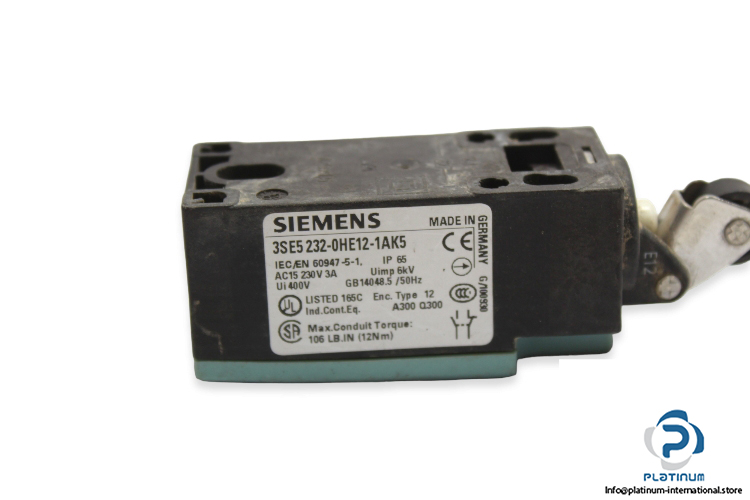

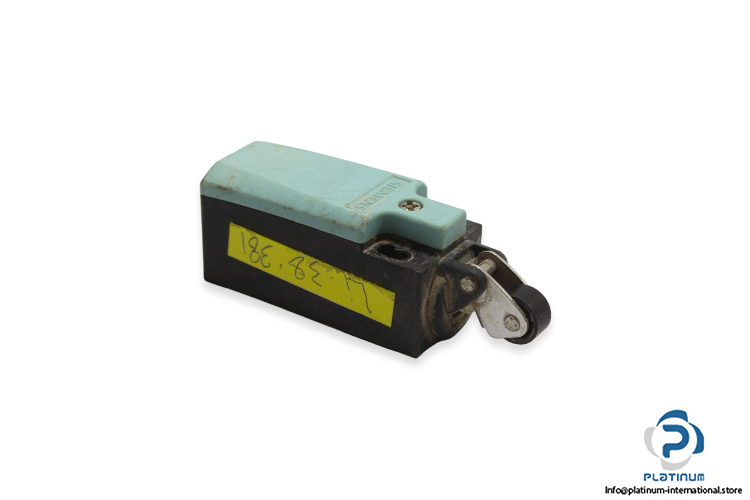

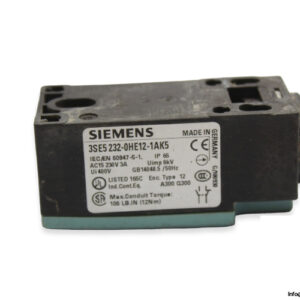

SIEMENS 3SE5232-0HE12-1AK5 POSITION SWITCH
The Siemens 3SE5232-0HE12-1AK5 is a compact and robust position switch designed for high-performance industrial automation tasks. It features a reliable snap-action mechanism, roller lever actuator, and IP65 protection, making it ideal for harsh environments and precise mechanical signaling applications.
Manufacturer: SIEMENS
Type: Position Switch
Model: 3SE5232-0HE12-1AK5
Technical Information
- Output Configuration: 1 NO / 1 NC
- Contact Operation: Snap-action
- Actuator Type: Roller lever
- Switching Voltage max.: 230 V
- Contact Current max.: 3 A
- Thermal Current: 10 A
- Connection: Cable entry, 1x (M20 x 1.5)
- Protection Class: IP65
- Material of the Enclosure of the Switch Head: Plastic
- Reference Code (IEC 81346-2): B
- Ambient Operating Temperature: -25 / +85 °C
