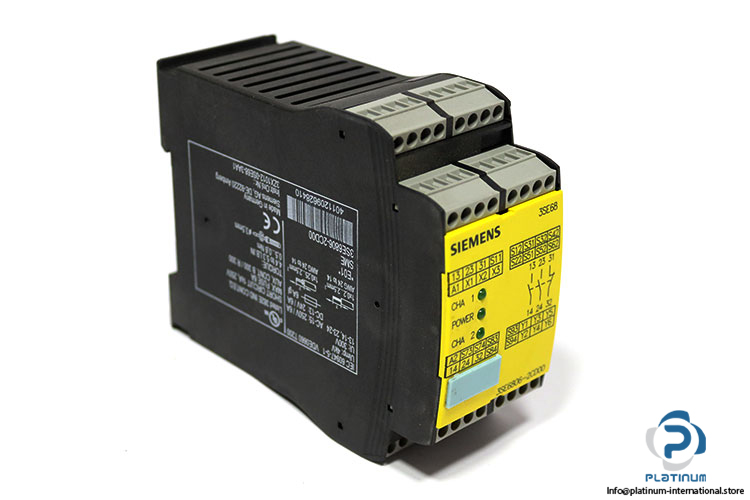

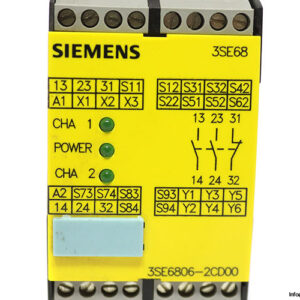

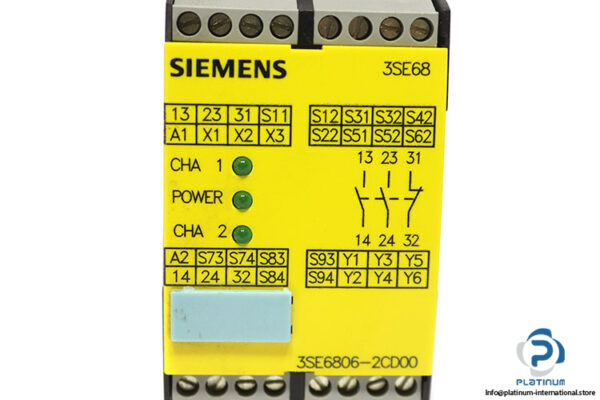

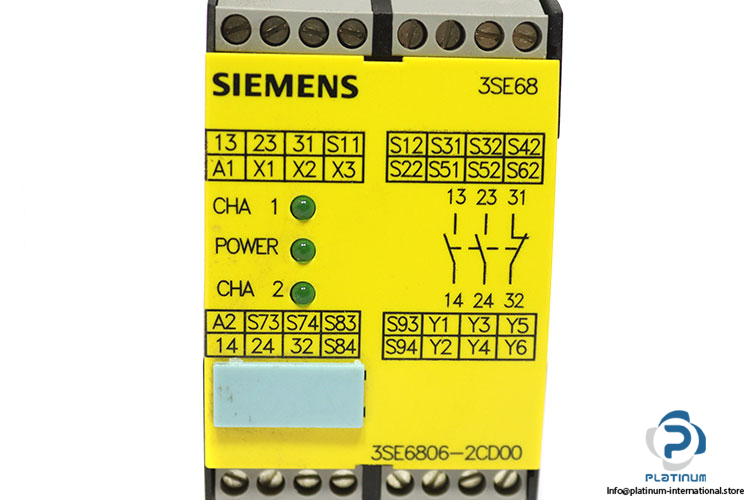

SIEMENS 3SE6806-2CD00 Evaluation Unit for Magnet Switch
The SIEMENS 3SE6806-2CD00 Evaluation Unit is a reliable safety relay and monitoring device designed for magnet switch applications. Engineered for high operational safety, it offers precise signal evaluation, robust electrical performance, and dependable integration into industrial safety circuits.
Manufacturer: SIEMENS
Type: Evaluation Unit for Magnet Switch
MRN: 3SE6806-2CD00

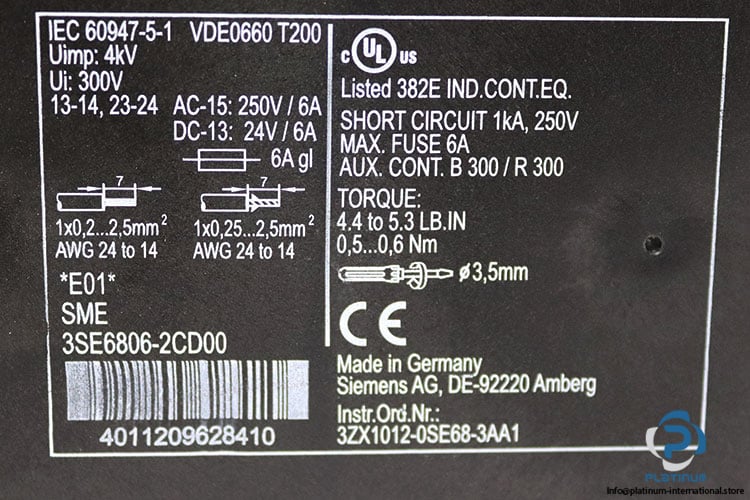

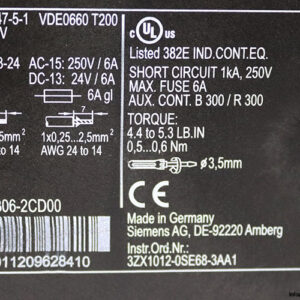

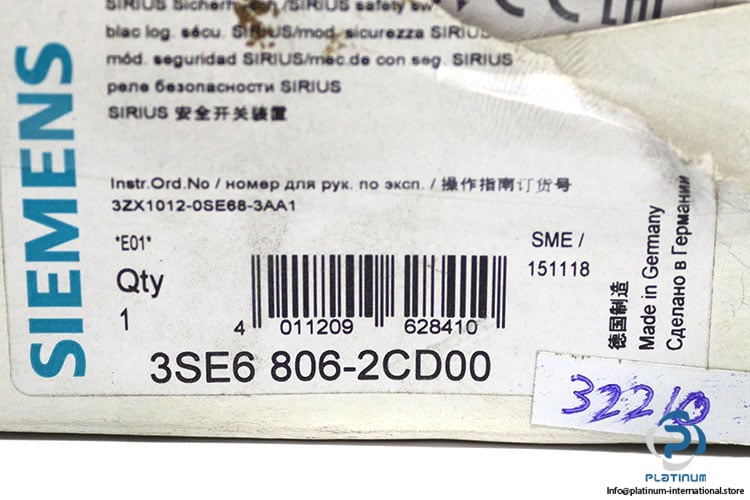

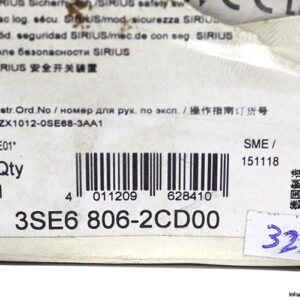

Installation Order Number: 3ZX1012-0SE66-3AA1
Serial Number: 4011209628410
Technical Information
- Product Designation: Safety relays
- Design: Evaluation unit, 45 mm
- Type of Operating Voltage: DC
- Shock Resistance (IEC 60068-2-27): Sinusoidal half-wave 10 g for 11 ms
- Vibration Resistance (IEC 60068-2-6): 10 to 55 Hz at 0.35 mm
- Protection Class: IP20
- Sensor Height: 100 mm
- Sensor Length: 120 mm
- Sensor Width: 45 mm
- Mechanical Installation Condition: No flush installation possible
- Operating Voltage Rated Value: 24 V DC
- Operating Current Rated Value: 125 mA
- Operating Power Rated Value: 3 W
- Number of NC Auxiliary Contacts: 1
- Number of NO Auxiliary Contacts: 2
- Number of CO Auxiliary Contacts: 0
- Enclosure Material: Plastic
- Switching Function: NC and NO contacts
- Number of Switching Contacts for Signaling: 6
- Safety-Related Switching Contacts: 2
- SIL (IEC 61508): SIL2
- Performance Level (EN ISO 13849-1): PL d
- Category (EN 954-1): Category 3
- Ambient Temperature during Operation: minus 25 to plus 45 degree Celsius
- Supply Voltage Range: 20.4 to 28.8 V
- Number of Semiconductor Outputs for Signaling: 6
- Output Current at Safety-Related Output Maximum: 6 A
- Mounting Type: Snap-on mounting
