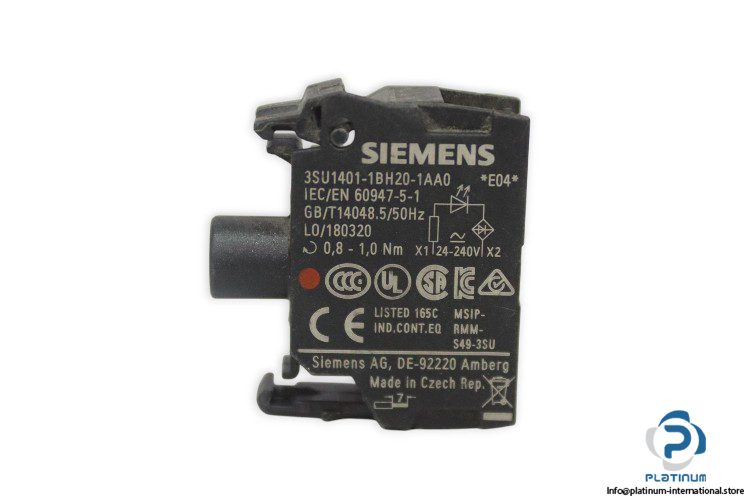

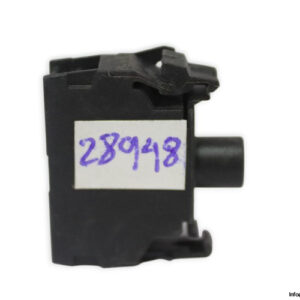

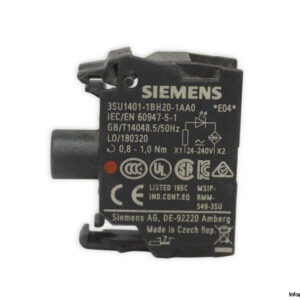

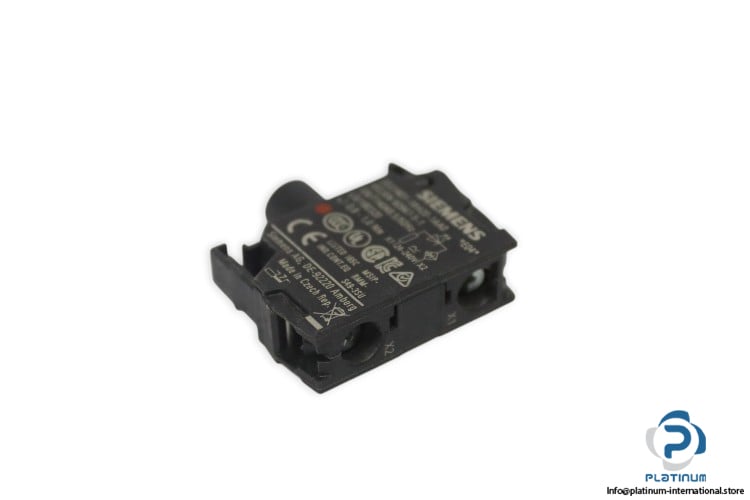

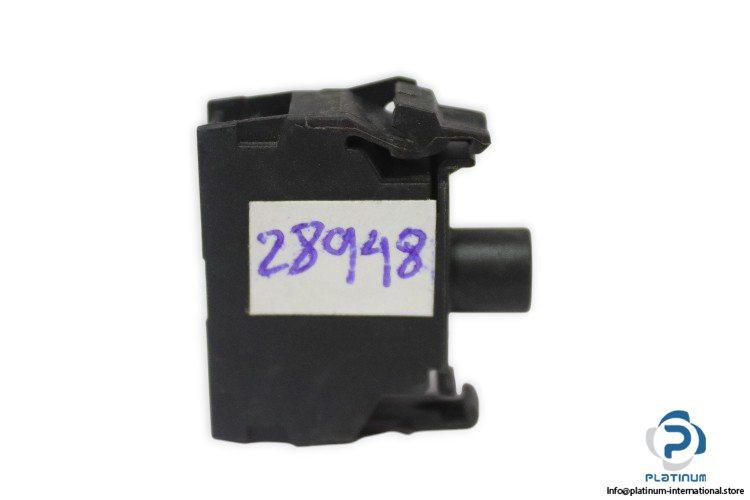

SIEMENS 3SU1 401-1BH20-1AA0 LED MODULE

The Siemens 3SU1 401-1BH20-1AA0 LED module from the SIRIUS ACT series is designed for reliable signaling and control in industrial automation systems, ensuring efficiency and durability under demanding conditions.

Manufacturer: Siemens
Type: LED Module
MRN: 3SU1 401-1BH20-1AA0
Ref No.: l0/180320 / GB/T14048.5/50Hz

Technical Information

• Standard: IEC/EN 60947-5-1
• Product Brand Name: SIRIUS ACT
• Product Designation: LED Module
• Product Type Designation: 3SU1
• Insulation Voltage Rated Value: 320 V
• Degree of Pollution: 3
• Surge Voltage Resistance Rated Value: 4 kV
• Consumed Current Maximum: 20 mA
• Operating Voltage:
  • At AC 50 Hz: 24 / 240 V
  • At AC 60 Hz: 24 / 240 V
  • At DC: 24 / 240 V
• Ambient Temperature During Operation: -25 / +70 °C
• Height: 33.2 mm
• Width: 9.8 mm
• Depth: 29.4 mm
