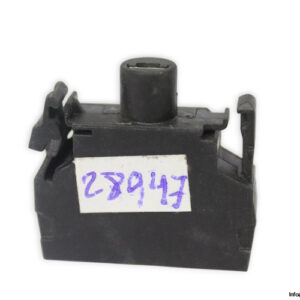

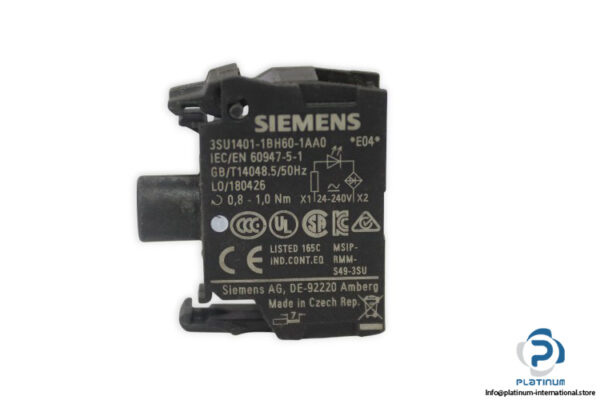

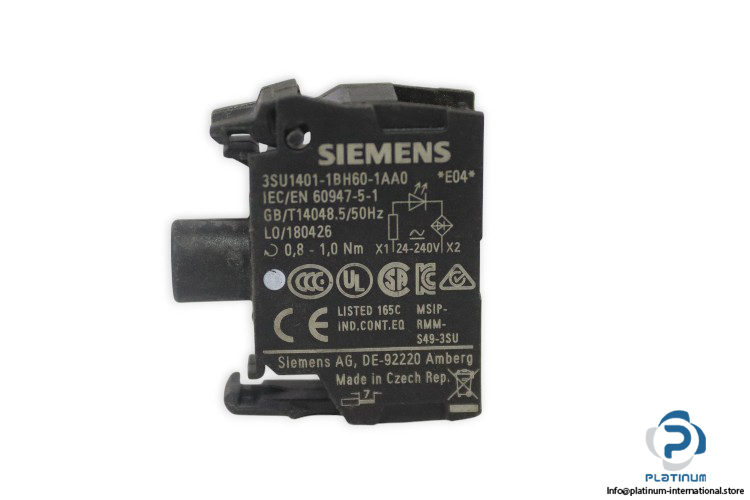

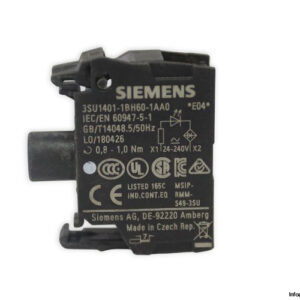

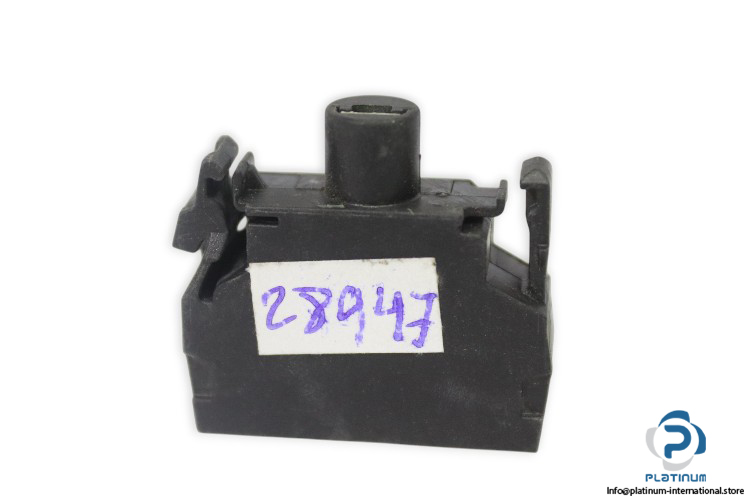

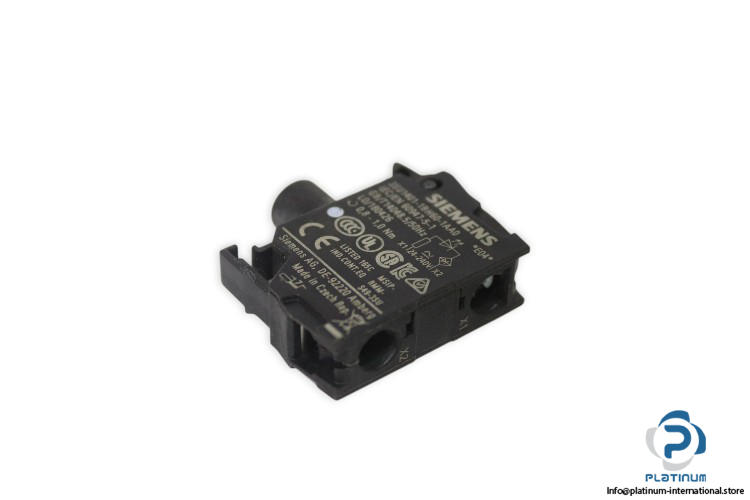

SIEMENS 3SU1 401-1BH60-1AA0 LED MODULE

The Siemens 3SU1 401-1BH60-1AA0 LED Module from the SIRIUS ACT series is a high-quality illumination component engineered for reliable signaling and control in industrial environments. Built to IEC/EN 60947-5-1 standards, it ensures durability, efficiency, and dependable operation across a wide voltage range.

Manufacturer: Siemens
Type: LED Module
MRN: 3SU1 401-1BH60-1AA0
Ref No.: l0/180426 / gb/t14048.5/50hz
Product Brand Name: SIRIUS ACT
Product Designation: LED Module
Product Type Designation: 3SU1

Technical Information

• Standard: IEC/EN 60947-5-1
• Insulation Voltage Rated Value: 320 V
• Degree of Pollution: 3
• Surge Voltage Resistance Rated Value: 4 kV
• Consumed Current Maximum: 20 mA
• Operating Voltage:
  • AC 50 Hz: 24 … 240 V
  • AC 60 Hz: 24 … 240 V
  • DC: 24 … 240 V
• Ambient Temperature During Operation: -25 … +70 °C
• Dimensions: Height 33.2 mm, Width 9.8 mm, Depth 29.4 mm
