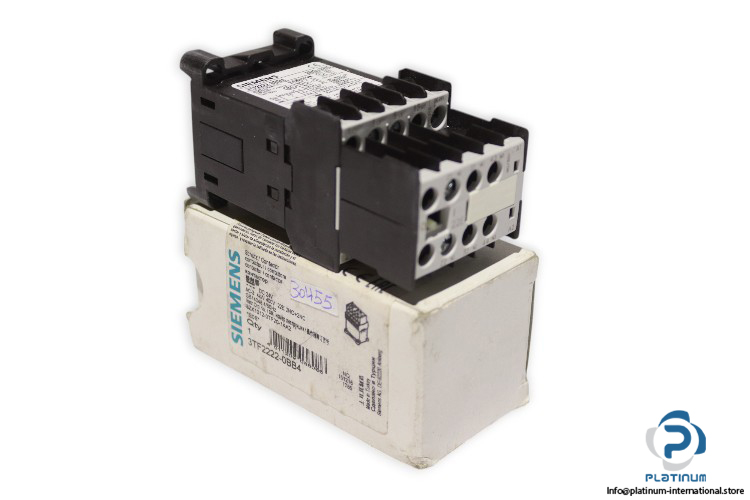

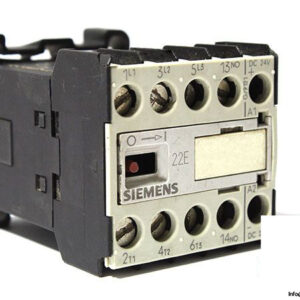

Siemens 3TF22 22-0BB4 Contactor

The Siemens 3TF22 22-0BB4 is a compact and reliable miniature contactor engineered for industrial applications. It provides efficient control with high performance, ensuring long-lasting and safe operation under demanding conditions.

Manufacturer: Siemens
Type: Contactor
Model: 3TF22 22-0BB4
Inst. Ord. No.: 3ZX1012-0TF20-1AA2
Serial No.: 4 011209 036086

Technical Information

• Successor Type: Sirius 3RT201 or 3TG10
• Size: 00
• Designation: 3TF2

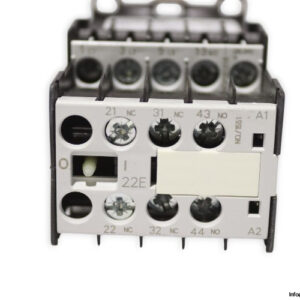

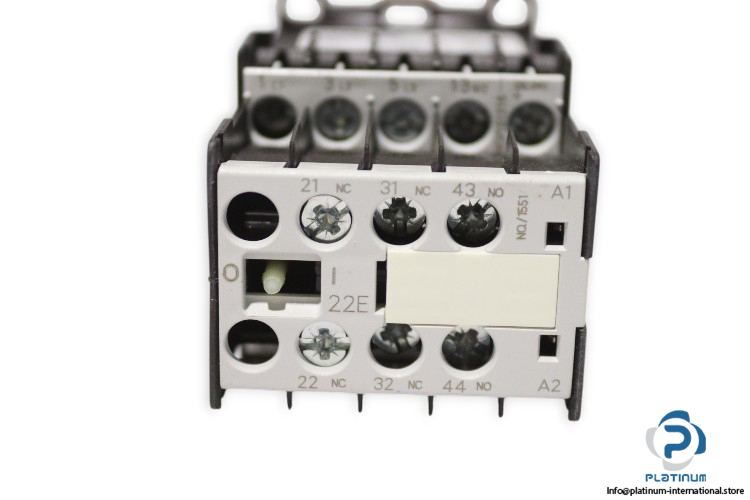

• Auxiliary Switch: 22E (2 NO + 2 NC)
• Designation: Miniature Contactor
• Control Supply Voltage: 24 V DC
• Rated Operating Power: 4 kW (400 V AC)
• Rated Operating Current: 9 A (400 V AC)
• Auxiliary Contacts: 1 Normally Open (1NO)
• Standard: IEC 158 / VDE 0660
• Protection Class: IP20
• Operation Ambient Temperature: -25 / 55 °C
• Dimensions (W x D x H): 45 x 96 x 48 mm
