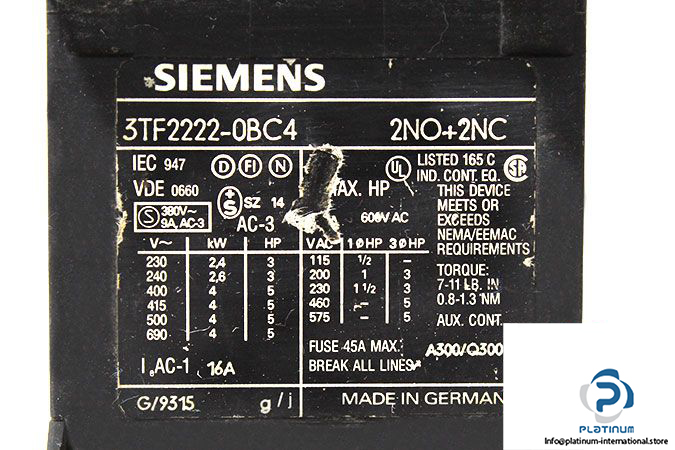

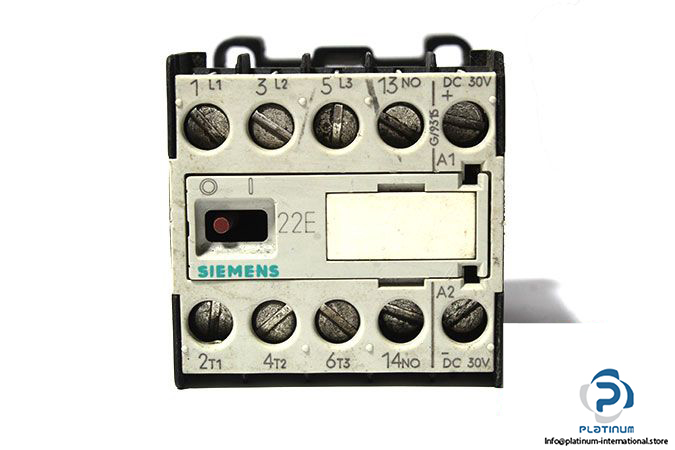

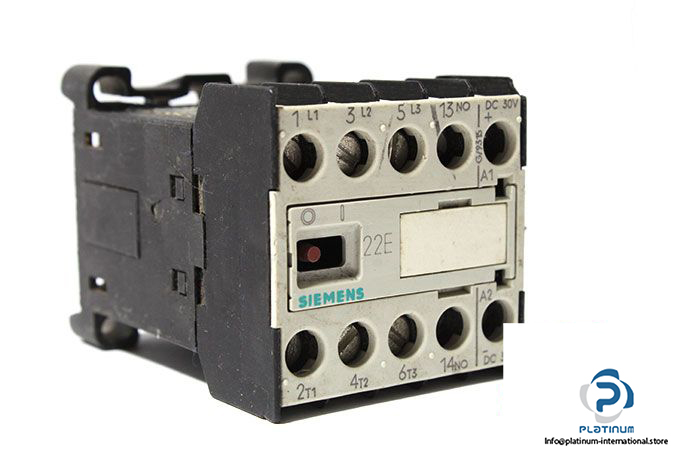

SIEMENS 3TF22 22-0BC4 CONTACTOR

The Siemens 3TF22 22-0BC4 is a compact and reliable contactor designed for efficient control of electrical circuits in industrial applications. Built to IEC 947 and VDE 0660 standards, it ensures safe and durable operation with optimal performance in demanding environments.

Manufacturer: Siemens
Type: Contactor
Model: 3TF22 22-0BC4
Size: 0

Technical Information

• Control Supply Voltage: 30 V DC
• Rated Operating Power: 4 kW (400 V AC)
• Rated Operating Current: 9 A (400 V AC)
• Contacts: 2 Normally Open (2NO) + 2 Normally Closed (2NC)
• Standard: IEC 947 / VDE 0660
• Dimensions (W x D x H): 45 x 68 x 48 mm
