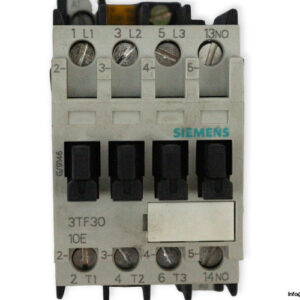

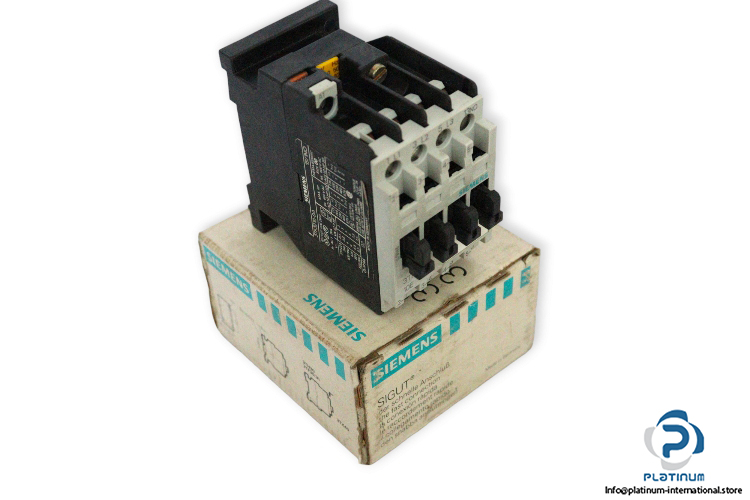

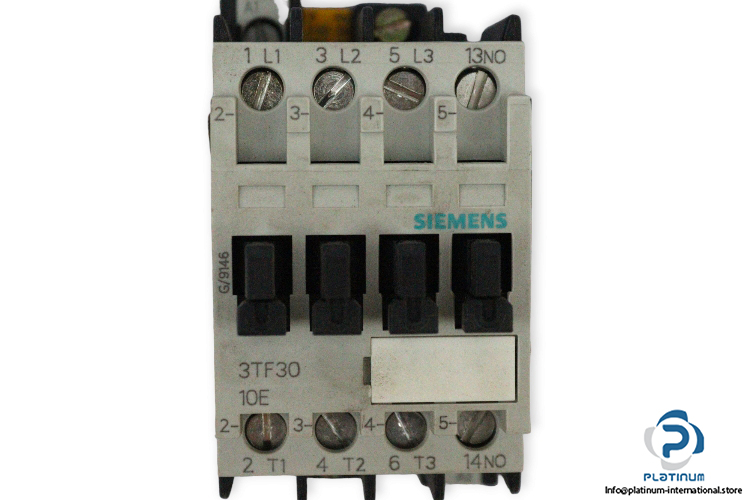

SIEMENS 3TF30100AF0 CONTACTOR

The Siemens 3TF30100AF0 is a robust and efficient contactor designed for reliable motor control and switching operations in industrial applications. Engineered for durability and precision, it provides optimal performance in both AC-3 and AC-4 operational categories, with a compact size 00 form factor.

Manufacturer: Siemens
Type: Contactor
MNR: 3TF30100AF0

Technical Information

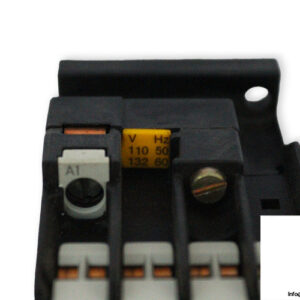

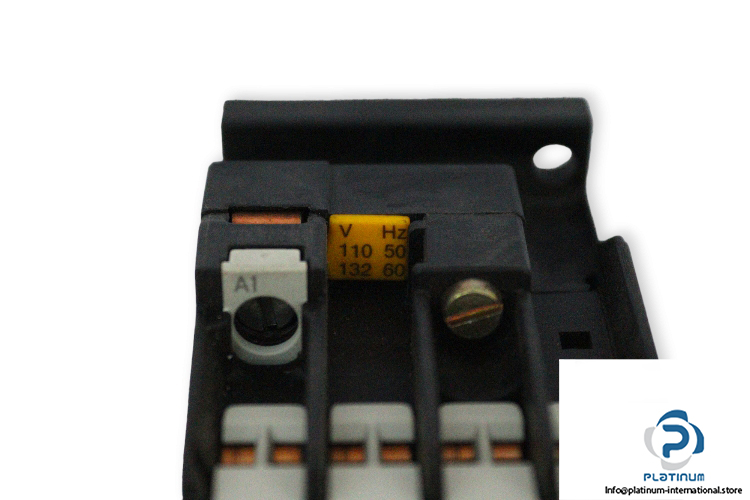

• Control Voltage Us: 110 V @ 50 Hz, 132 V AC @ 60 Hz
• Rated Insulation Voltage: 690 V
• Rated Operational Current: AC-3 (9 A), AC-4 (3.3 A)
• Auxiliary Contacts: 1 Normally Open (NO)
• Size: 00
• No. of Poles: 4

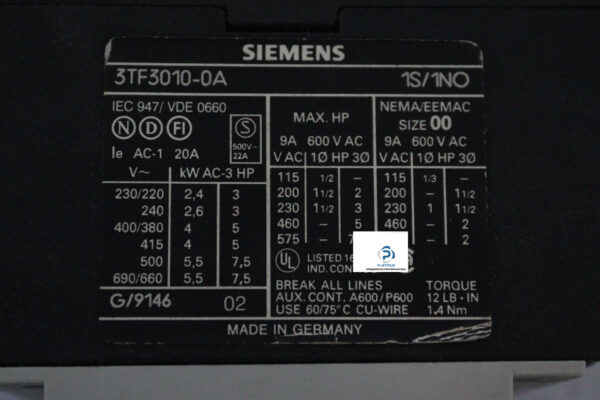

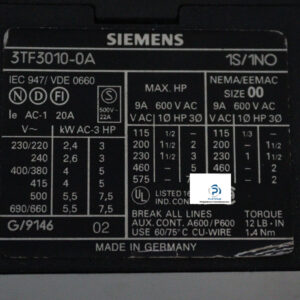

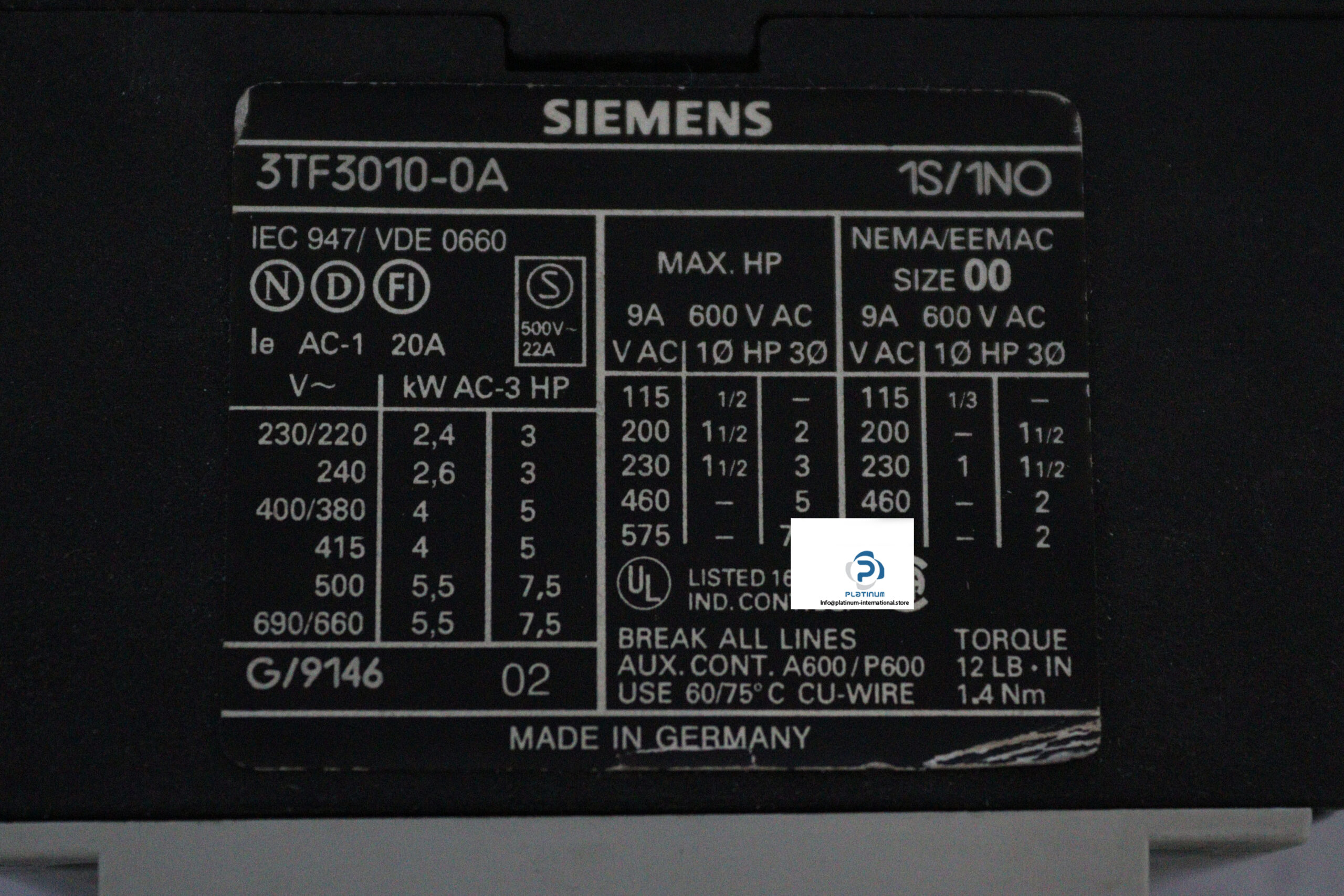

• Rated Outputs of Three-Phase Motors: 2.4 kW / 3 HP (220/230 V AC), 2.6 kW / 3 HP (240 V AC), 4 kW / 5 HP (380/400 V AC), 4 kW / 5 HP (415 V AC), 5.5 kW / 7.5 HP (500 V AC), 5.5 kW / 7.5 HP (660/690 V AC)
• Power Consumption of Coil: 6.2 W
• Conventional Thermal Current: 20 A
