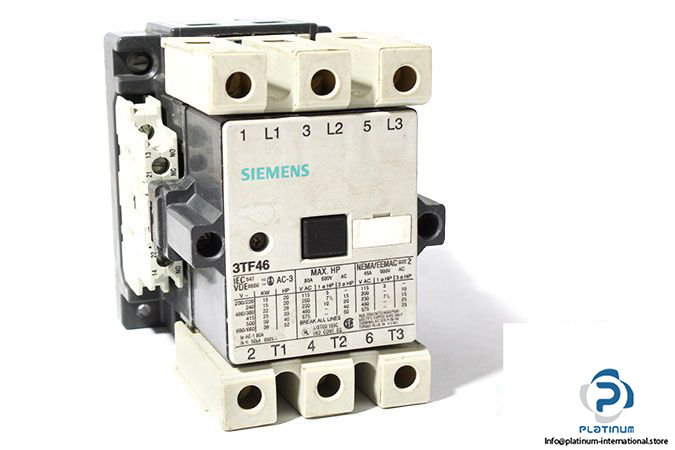

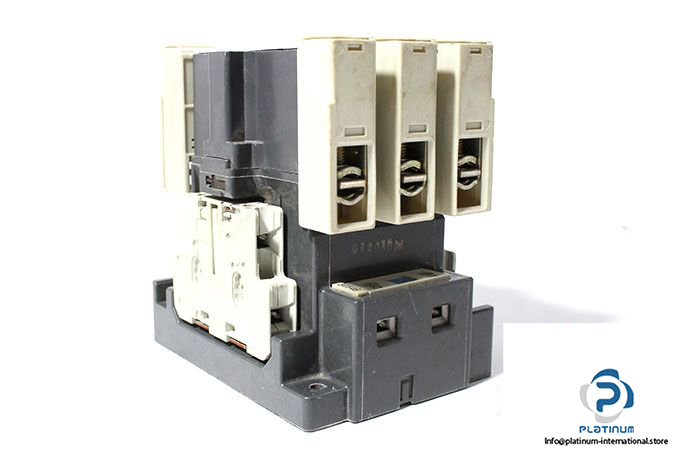

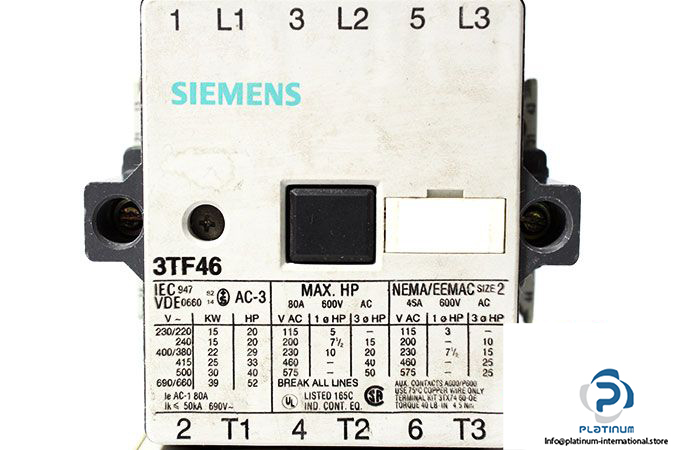

SIEMENS 3TF46 MOTOR STARTER “ CONTACTOR
The Siemens 3TF46 is a high-performance motor starter “ contactor designed for reliable switching of motors and industrial loads. Built to IEC and VDE standards, it offers robust operation, compact design, and versatile auxiliary contact configuration for a wide range of control applications.
Manufacturer: Siemens
Type: Motor Starters “ Contactor
Model: 3TF46
Frame Size: S3
Technical Information
- Coil Voltage: 220 V AC 50 Hz / 264 V AC 60 Hz
- Rated Power: 22 kW (380 / 400 V AC), 25 kW (415 V AC)
- Auxiliary Contacts: 2 Normally Open, 2 Normally Closed (2NO + 2NC)
- Standard: IEC 947 / VDE 0660
- Dimensions (W x D x H): 88 x 122 x 118 mm
