SIEMENS 3TH2022-0AF0 CONTACTOR RELAY

The Siemens 3TH2022-0AF0 contactor relay is a high-quality control component designed for reliable switching and control of circuits in industrial environments. It provides excellent performance in automation and motor control systems.

Manufacturer: Siemens
Type: Contactor Relay
Model: 3TH2022-0AF0
Product Type Designation: 3TH2
Control Supply Voltage: 110 / 132 V AC
Size of Contactor: 0

Technical Information

• Operating Current at AC-15: 4 A at 230 V, 3 A at 400 V
• Type of Electrical Connection: Screw-type terminals

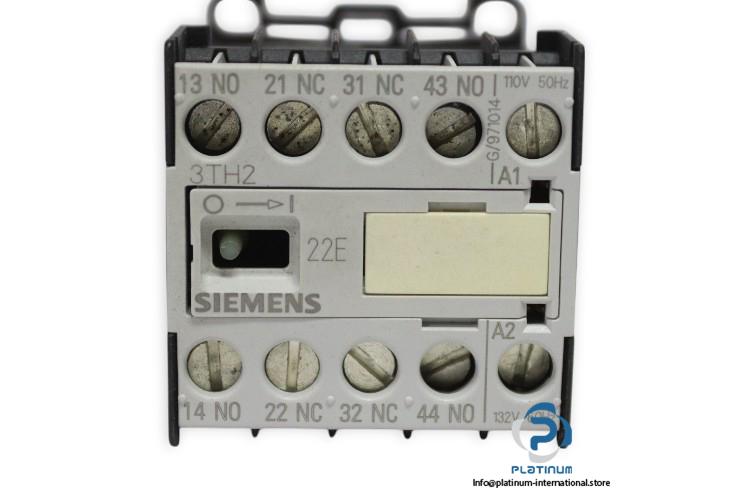

• Contact Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
• Protection Class: IP20
• Ambient Temperature Range: -25 to +55 °C
• Dimensions (H x W x D): 48 x 45 x 68 mm
