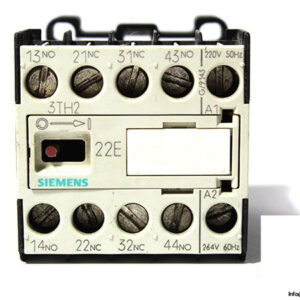

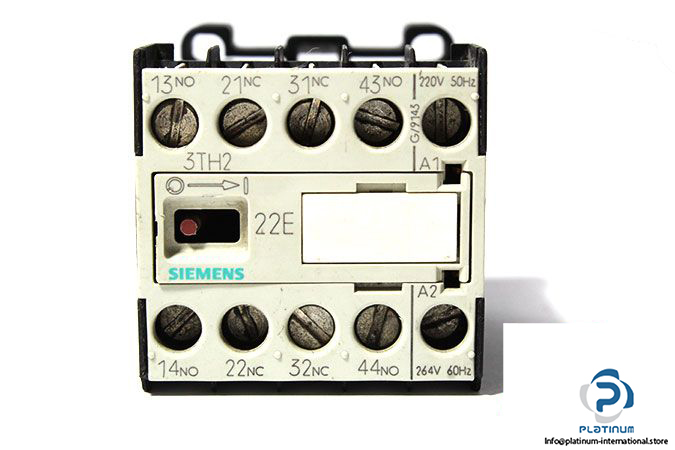

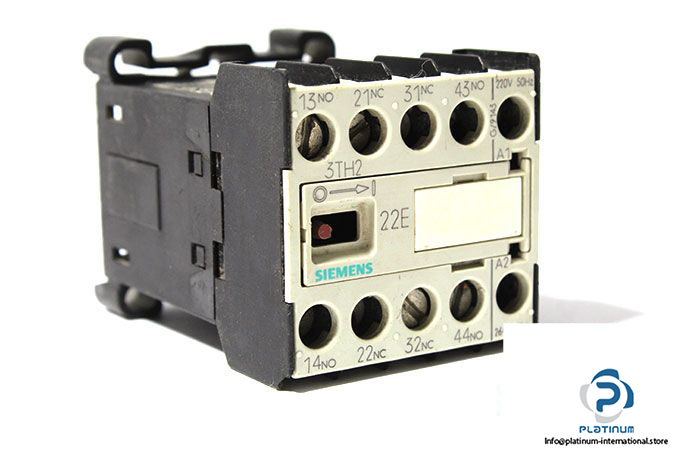

SIEMENS 3TH2 022-0AM0 CONTACTOR RELAY
The Siemens 3TH2 022-0AM0 is a durable and efficient auxiliary contactor designed for industrial control applications. Built for reliable performance, it supports both AC-50 Hz and AC-60 Hz supply, providing dependable switching in various automation and control systems. Compact in design, it meets IEC 947 and VDE 0660 standards for safety and quality.
Manufacturer: Siemens
Type: Contactor Relay
Model: 3TH2 022-0AM0
Successor Type: Sirius 3RH21
Size: 0
Designation: Auxiliary Contactor
Technical Information
- Control Supply Voltage: 220 V AC 50 Hz / 264 V AC 60 Hz
- Control Supply Voltage Frequency: 50 / 60 Hz
- Rated Operating Current: 4 A (230 V AC), 3 A (400 V AC)
- Auxiliary Contacts: 2 Normally Open, 2 Normally Closed (2NO + 2NC)
- Identification Number: 22E

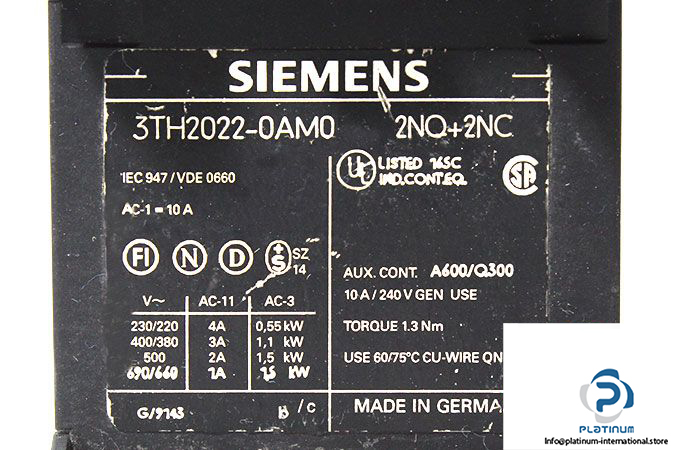

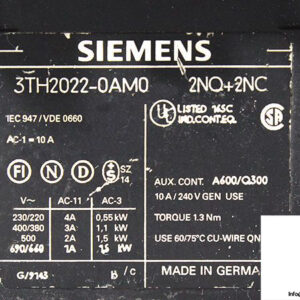

- Standard: IEC 947 / VDE 0660
- Protection Class IP: IP20
- Operation Ambient Temperature: -25 / 55 °C
- Dimensions (W x D x H): 45 x 68 x 48 mm
