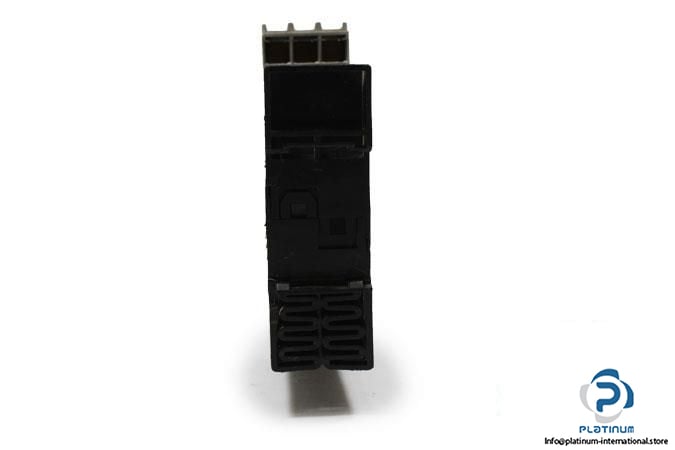

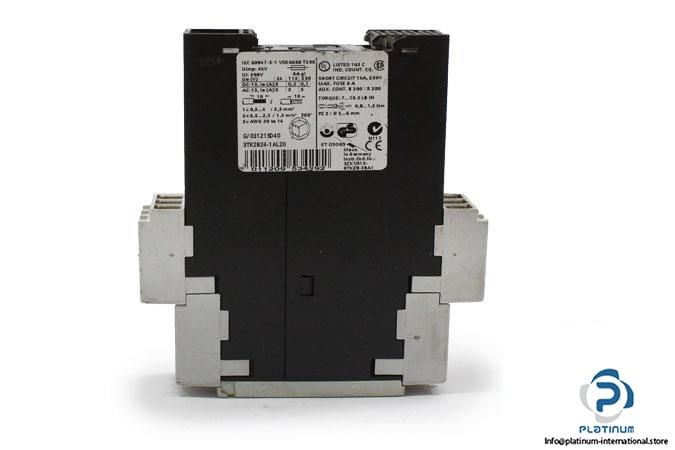

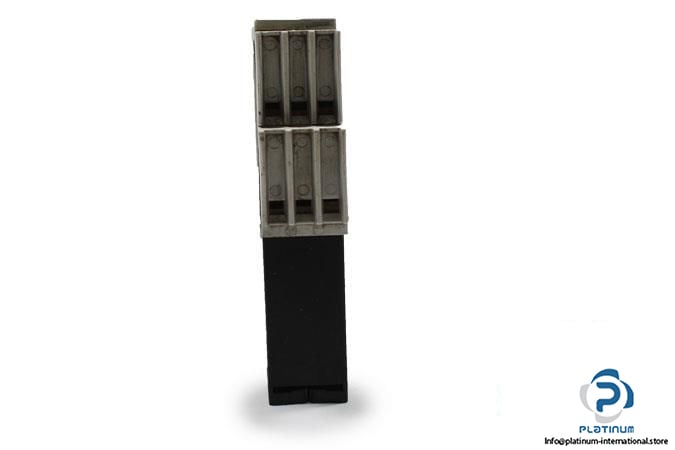

SIEMENS SIRIUS 3TK2824-1AL20 SAFETY RELAY

The SIEMENS SIRIUS 3TK2824-1AL20 safety relay is engineered for dependable performance in emergency-stop and safety door systems. Designed to meet rigorous industrial safety standards, it ensures high reliability in control circuits and secure machine shutdown procedures.

Manufacturer: SIEMENS
Brand: SIRIUS
Type: Safety Relay with Relay Enabling Circuit
Model: 3TK2824-1AL20

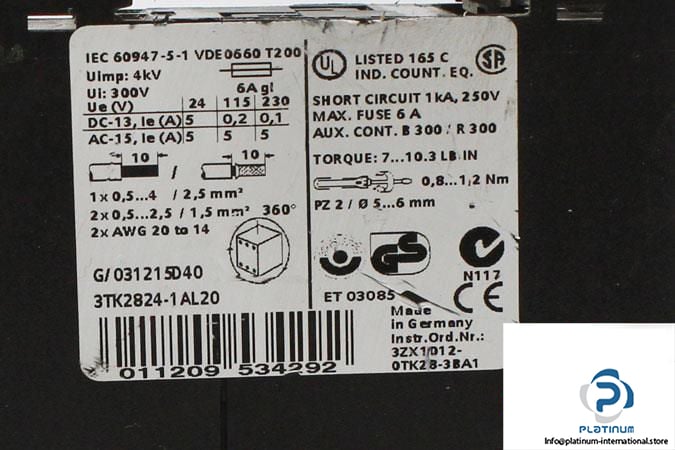

INTT ORD NO: 3ZX1012-0TK28-3BA1
REF NO: G/031215D40
SN: 011209 534292

Technical Information

• Control Supply Voltage: 230 VAC
• Frequency: 50/60 Hz
• Air Pressure: 90 / 106 kPa
• Cable Length: 1000 m
• Safety Device Type: Type A
• Output Contact: 2 N/O
• Resistance to Direct Current: 30 „¦
• Design: For EMERGENCY-STOP and safety doors
• Mounting: Screw and snap-on mounting

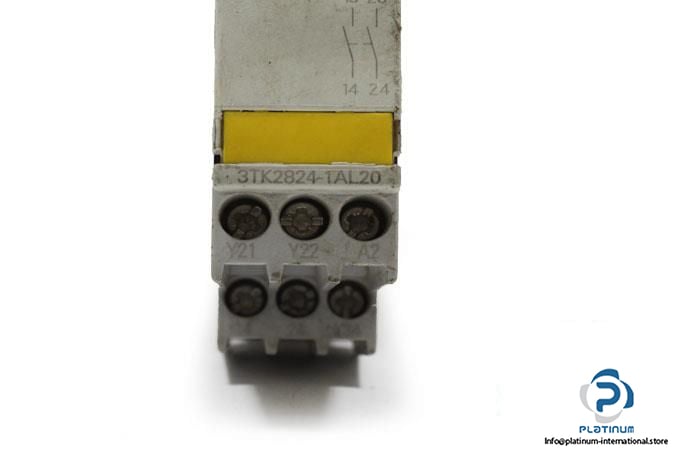

• Electrical Connection: Screw-type terminals
• Shock Protection: Finger-safe
• Ambient Temperature: -25 / +60 °C
• Dimensions: 120 x 22.5 x 120 mm
• Protection Class (Enclosure/Terminal): IP40 / IP20
