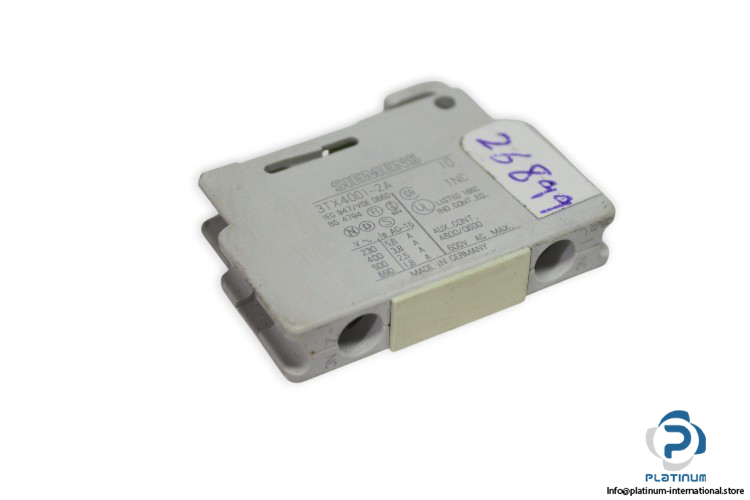

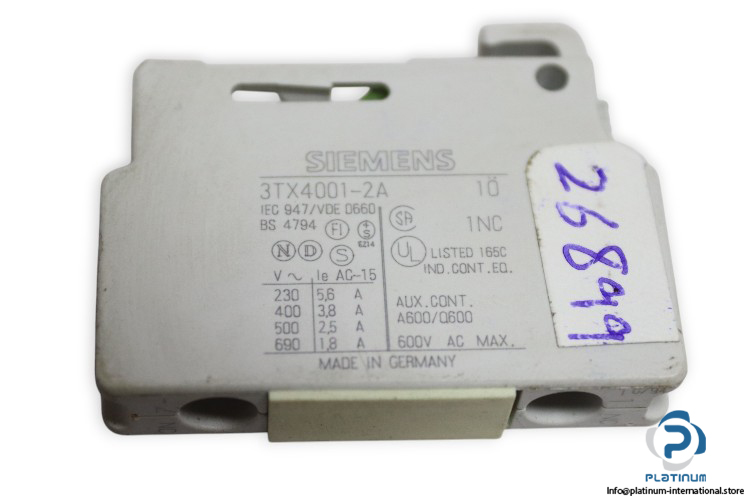

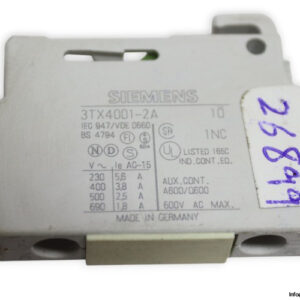

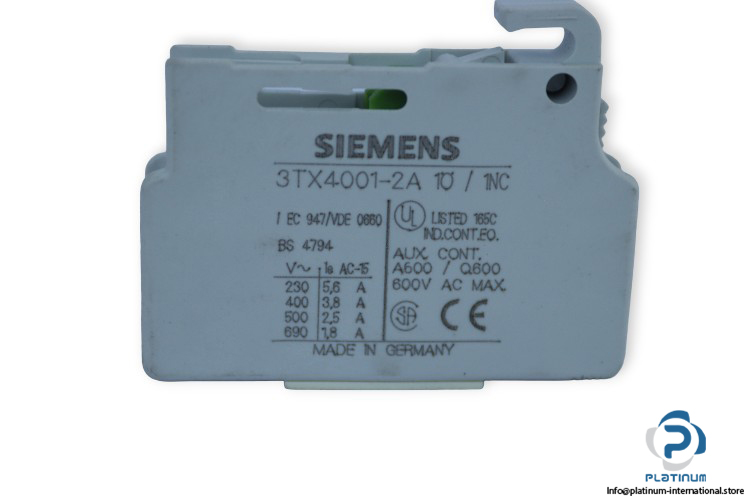

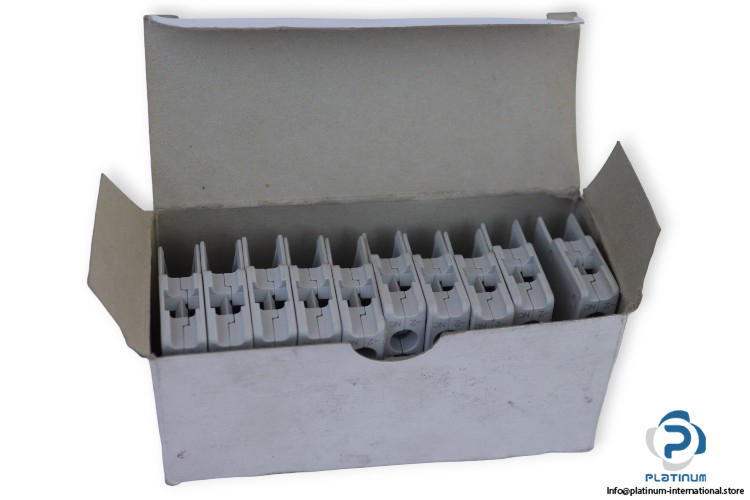

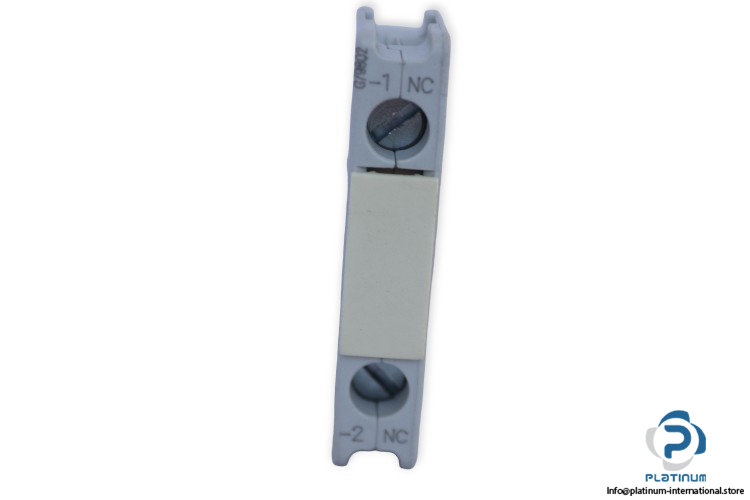

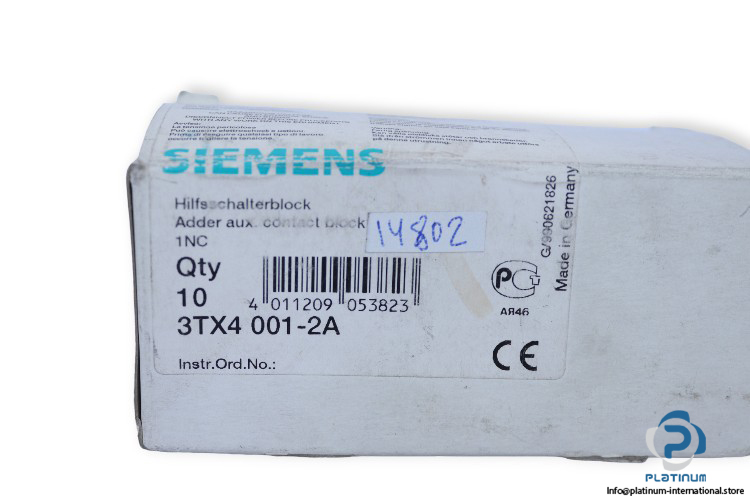

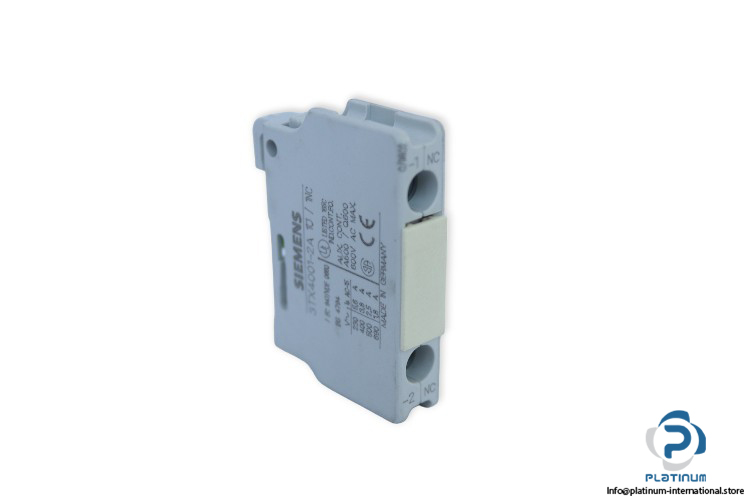

SIEMENS 3TX4 001-2A AUXILIARY CONTACT BLOCK “ SIRIUS SERIES

Engineered for reliability and safe control circuit management, the Siemens 3TX4 001-2A Auxiliary Contact Block from the SIRIUS series is ideal for integration into industrial control systems. Designed for precision performance under high-voltage and variable frequency conditions.

Manufacturer: Siemens
Brand Name: SIRIUS
Type: Auxiliary Contact Block
Model: 3TX4 001-2A

Technical Information

• Rated Voltage: 600 V AC
• Rated Operational Current:
• 230 V AC: 5.6 A
• 400 V AC: 3.8 A
• 500 V AC: 2.5 A
• 690 V AC: 1.8 A
• Frequency: 50 / 60 Hz
• Contact Configuration: 1-Pole, 1 Normally Closed (NC)
• Protection Class: IP20
• Operating Temperature: -25 / 55 °C
• Dimensions: 70 x 12 x 51.5 mm
