SIEMENS VL160XN CIRCUIT BREAKER “ 3VL SERIES

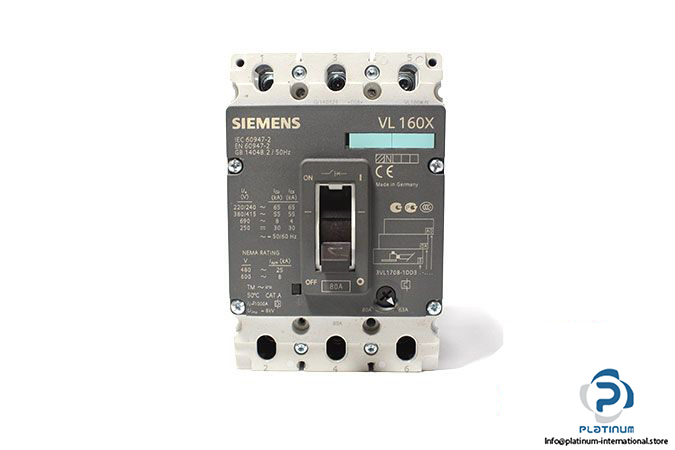

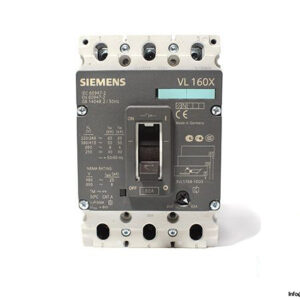

The Siemens VL160XN is a high-performance molded case circuit breaker from the Sentron 3VL series, designed to provide reliable line protection in industrial power systems. Engineered for robust performance and safety, this breaker offers excellent overload and short-circuit protection with a compact design.

Manufacturer: Siemens
Type: Circuit Breaker
Family: Sentron
Series: 3VL
Designation: VL160X
Model: VL160XN
Size: 3VL1

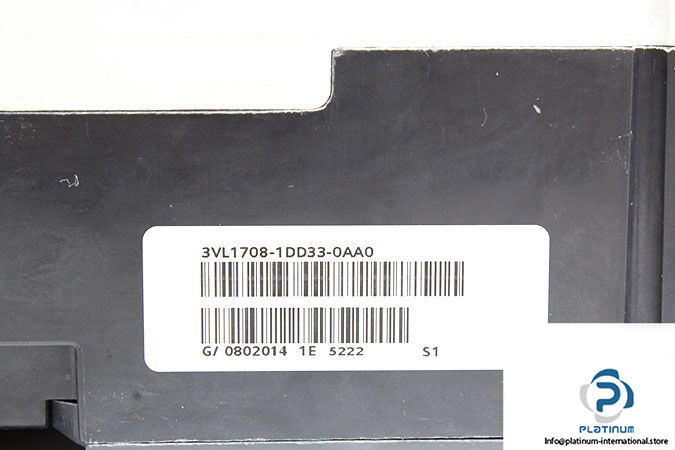

Article No.: 3VL1708-1DD33-0AA0
REF NO: G/0802014 1E 5222 S1

Technical Information

• Number of Poles: 3
• Rated Current (In): 80 A
• Overload Protection Current (IR): 63 / 80 A
• Rated Surge Voltage Resistance (Vimp): 8 kV
• Rated Operational Voltage (Ue): 690 V AC / 500 V DC
• Rated Insulation Voltage (Ui): 800 V
• Rated Breaking Capacity (Icu):
  • 65 kA / 240 V AC
  • 55 kA / 415 V AC
  • 8 kA / 690 V AC
  • 30 kA / 250 V DC
• Standards: IEC 60947-2 / EN 60947-2
• Breaking Capacity Class: Normal Breaking Capacity (N)
• Field of Application: Line protection
• Mounting: Fixed
• Overcurrent Release: Thermal-Magnetic (TM)
• Operating Frequency: 50/60 Hz
• Protective Functions: LI “ Overload (L) and Instantaneous Short-Circuit (I)
• Protection Class: IP20
• Dimensions (H x W x D): 157.5 x 104.5 x 106.5 mm
• Operation Ambient Temperature: 0 / 70 °C

Accessories

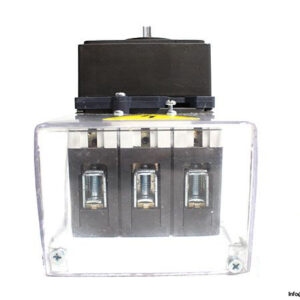

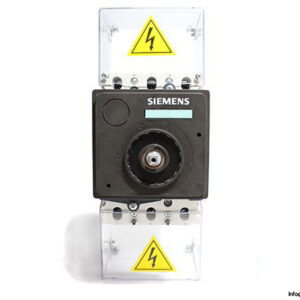

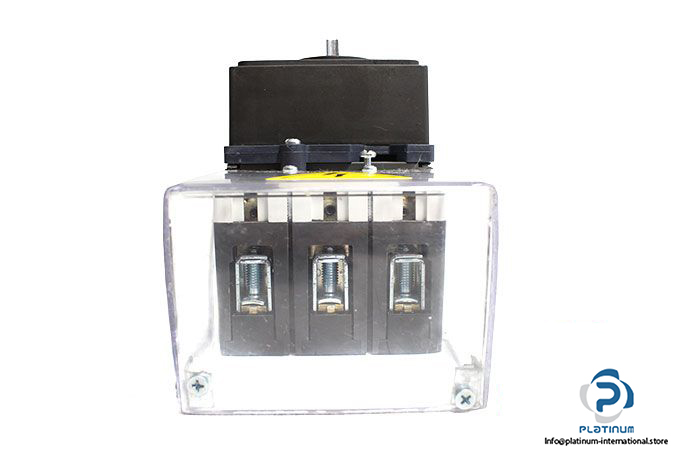

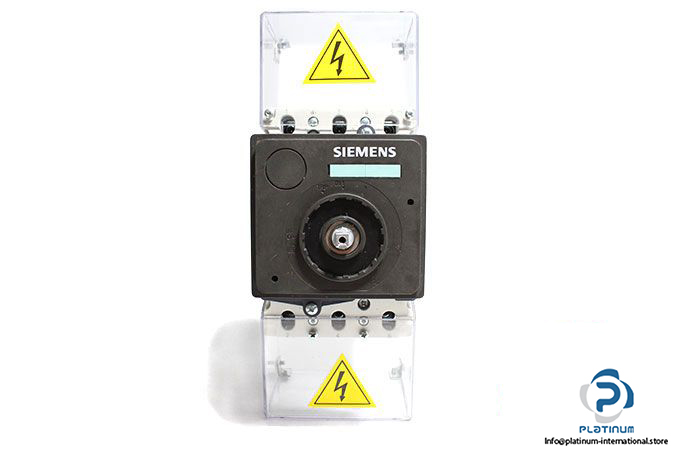

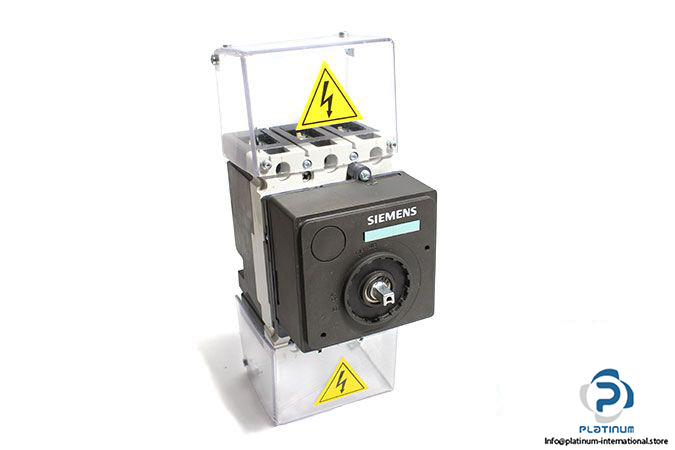

SIEMENS 3VL9300-3HE00 ROTARY OPERATOR

• Type: Rotary Operator
• Model: Sentron
• Article No.: 3VL9300-3HE00
• Accessories For: VL160X, VL160, VL250
