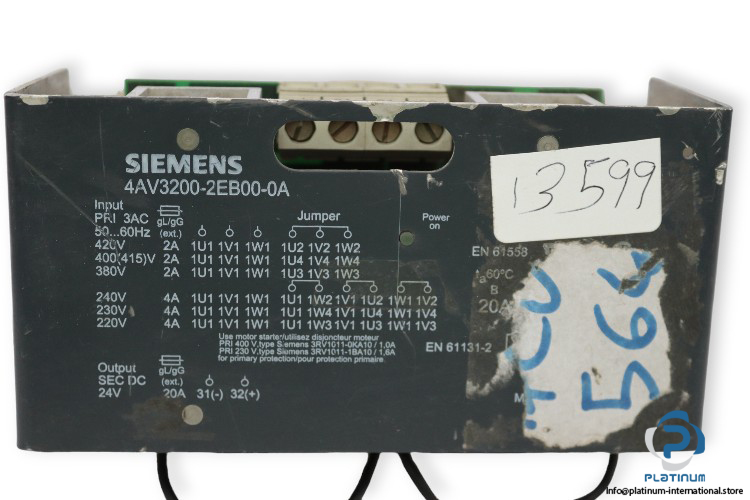

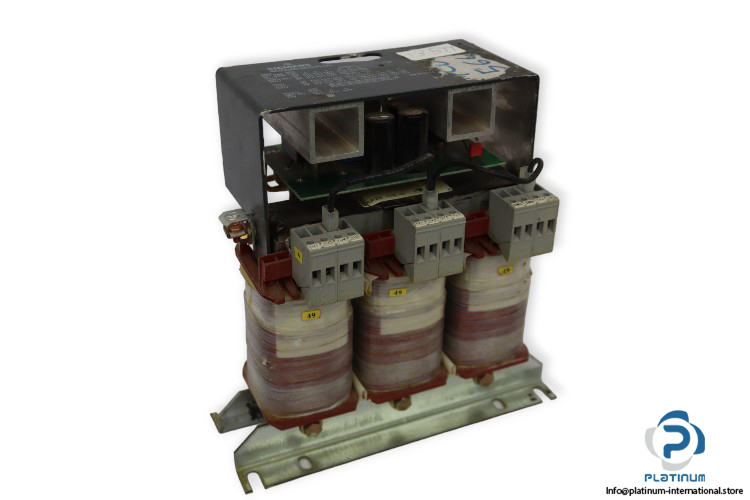

Siemens SIDAC 4AV32002EB000A Transformer

The Siemens SIDAC 4AV32002EB000A Transformer is a high-performance electrical transformer designed for industrial and automation applications. With multiple primary voltage options, a 24V DC secondary voltage, and a 20A output current, this transformer ensures reliable power conversion for various control and automation systems.

• Manufacturer: Siemens
• Type: Transformer
• MNR: 4AV32002EB000A
• Product Brand Name: SIDAC

Technical Information

• Primary Voltage (3-Phase):
  • 420 V AC, 2 A
  • 400 (415) V AC, 2 A
  • 380 V AC, 2 A
  • 240 V AC, 4 A
  • 230 V AC, 4 A
  • 220 V AC, 4 A
• Frequency: 50 / 60 Hz
• Secondary Voltage: 24 V DC
• Output Current (IN): 20 A
• Type of Electrical Connection: Screw-Type Terminals
• Power: 0.48 kW
• Protection Degree: IP00
• Fastening Method: Screws
• Standard Compliance: EN 61131-2, EN 61558
• Ambient Temperature Rated Value: 60°C
• Dimensions: 216 x 220 x 115 mm

Built for industrial environments, the Siemens SIDAC 4AV32002EB000A ensures efficient and stable power distribution, making it ideal for automation and electrical control systems.
