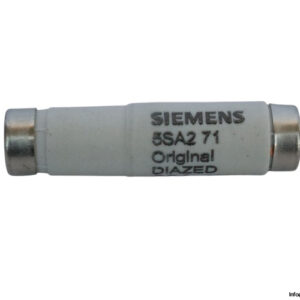

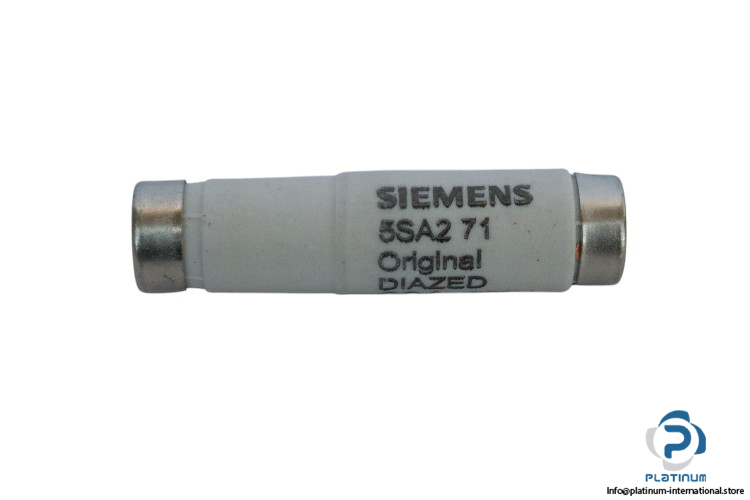

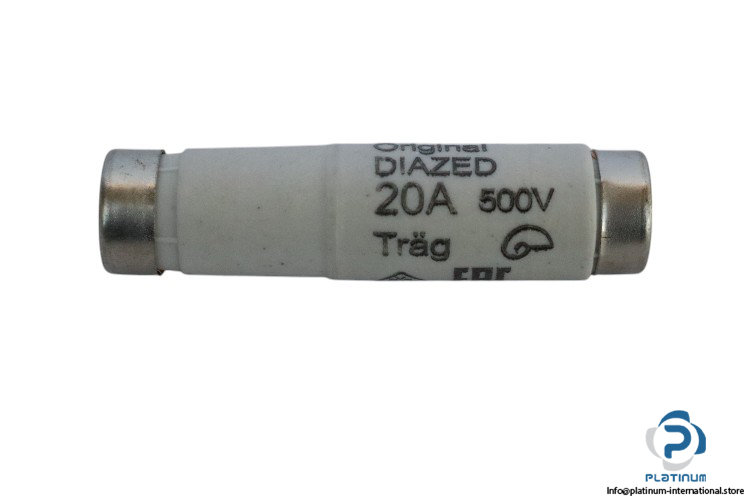

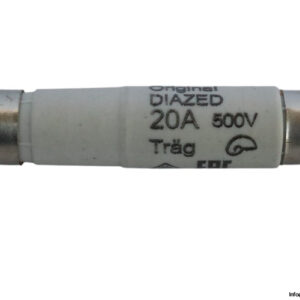

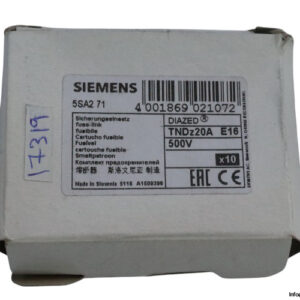

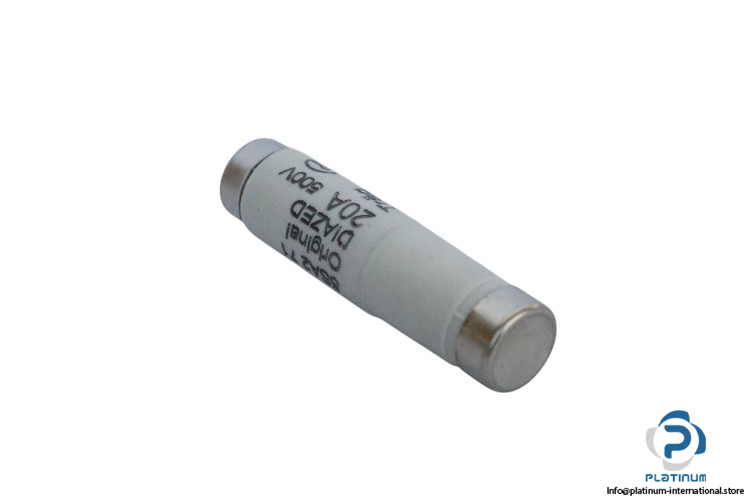

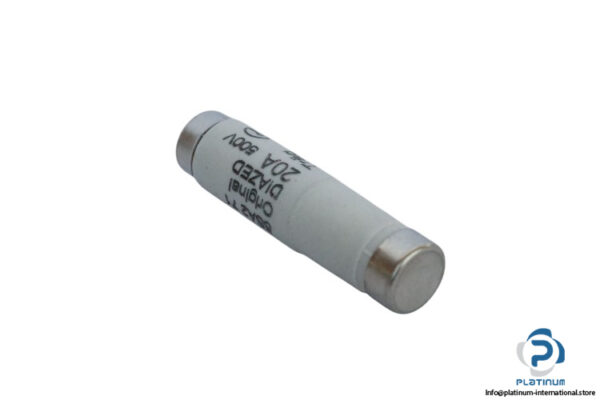

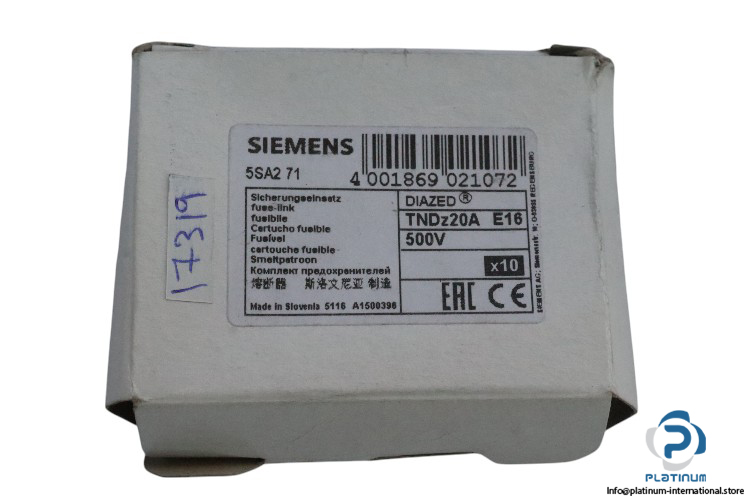

Siemens Fuse Link 5SA271

The Siemens 5SA271 Fuse Link is designed to provide reliable circuit protection for industrial and commercial electrical systems. It supports both AC and DC applications, operating at 500 V with a rated current of 20 A. With high switching capacity and compliance with IEC 60947-2 standards, it ensures safety and durability in demanding environments.

Specifications:

• Manufacturer: Siemens
• Type: Fuse Link
• Model: 5SA271
• Supply Voltage: 500 V AC, DC
• Rated Current: 20 A
• Switching Capacity Current:
  • IEC 60947-2 Rated Value: 40 kA
  • DC IEC 60947-2 Rated Value: 1.6 kA
• Ambient Temperature: -5 to 40 °C
• Dimensions:
  • Diameter 1: 12 mm
  • Diameter 2: 13.2 mm
  • Length: 49 mm
