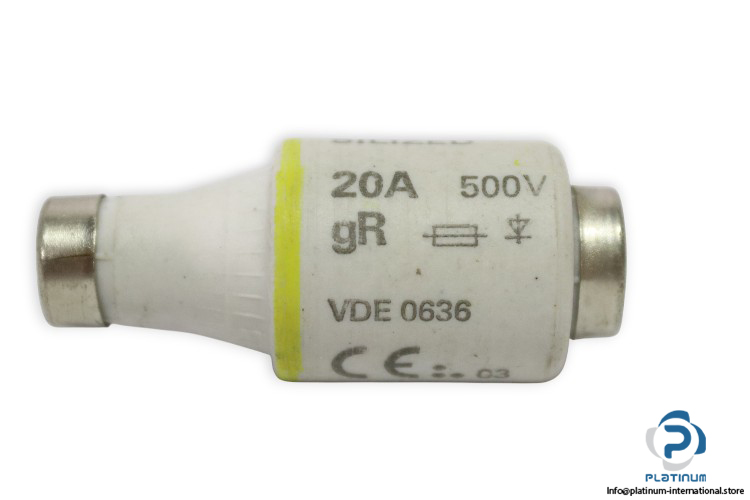

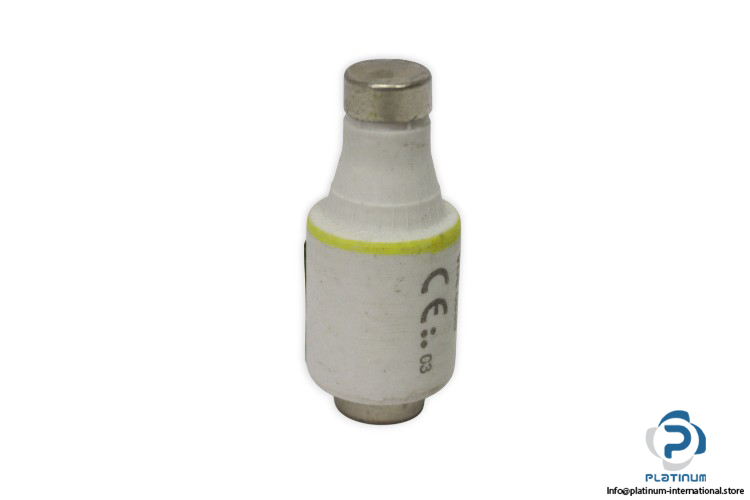

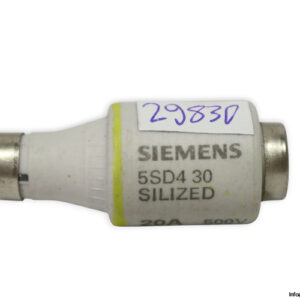

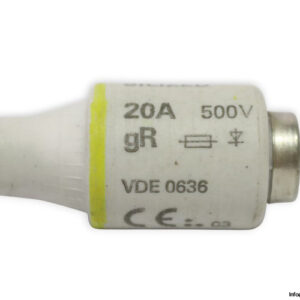

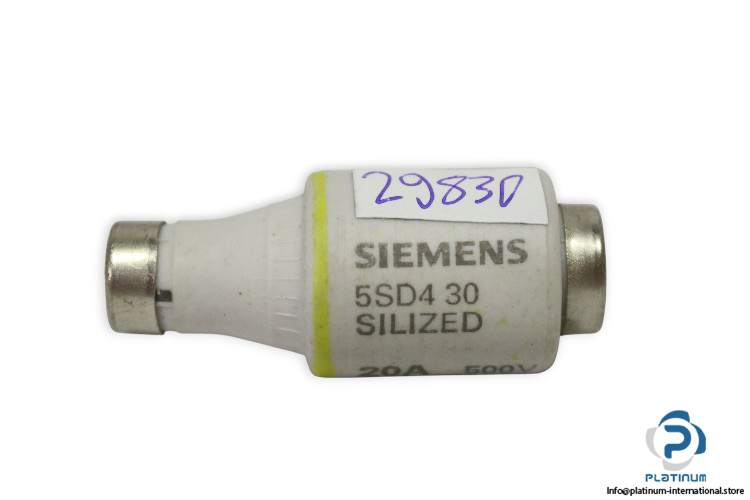

Siemens 5SD4 30 Fuse Link

The Siemens 5SD4 30 is a high-quality fuse link from the SENTRON series, designed in a DIAZED configuration for reliable semiconductor protection. Engineered for demanding electrical environments, it ensures safety, stability, and compliance with VDE 0636 standards.

Manufacturer: Siemens
Type: Fuse Link
Model: 5SD4 30
Product Brand Name: SENTRON
Product Designation: DIAZED Fuse
Design of the Product: For Semiconductor Protection
Design of the Fuse Link: SILIZED Fuse Link, DIAZED Design

Technical Information

• Size of Fuse System (EN 60269-1): DIII
• Operating Class of Fuse Link: gR
• Supply Voltage (AC): 500 V
• Supply Voltage (DC): 500 V
• Ambient Temperature: -5 °C / 40 °C
• Dimensions (L × Inner Dia × Outer Dia): 49 × 12 × 22 mm
• Rated Current: 20 A
• Standard: VDE 0636
