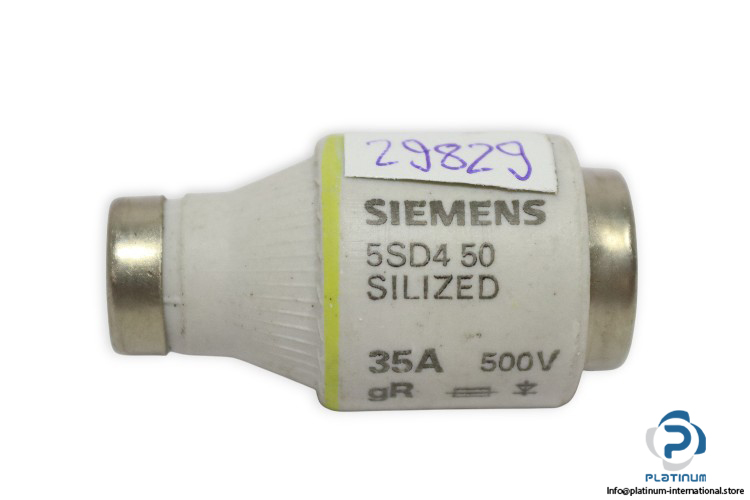

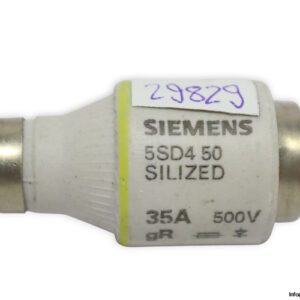

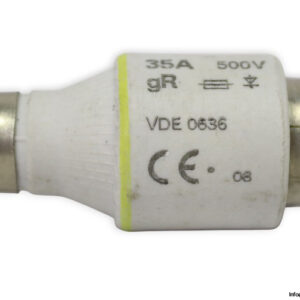

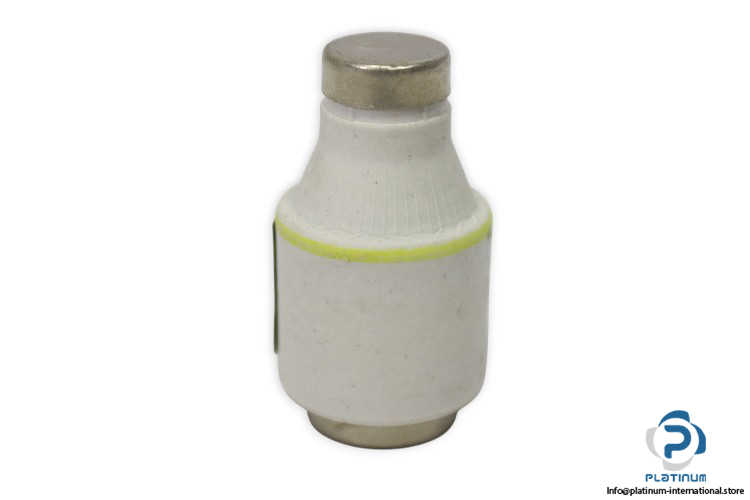

Siemens 5SD4 50 Fuse Link

The Siemens 5SD4 50 Fuse Link from the SENTRON family is designed for reliable semiconductor protection in industrial electrical systems. Built with precision engineering, it ensures consistent operation, safety, and long service life under demanding conditions.

Manufacturer: Siemens
Type: Fuse Link
Model: 5SD4 50
Product Brand Name: SENTRON
Product Designation: DIAZED Fuse

Technical Information

• Design of the Product: For Semiconductor Protection
• Design of the Fuse Link: SILIZED Fuse Link, DIAZED Design
• Size of Fuse System (EN 60269-1): DIII
• Operating Class of the Fuse Link: gR
• Supply Voltage (AC): 500 V
• Supply Voltage (DC): 500 V
• Ambient Temperature: -5 °C / 40 °C
• Dimensions (L × Inner Dia × Outer Dia): 49 × 16 × 28 mm
• Rated Current: 35 A
• Standard: VDE 0636
