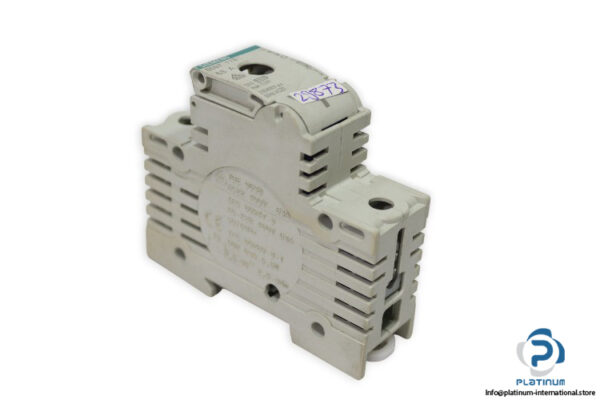

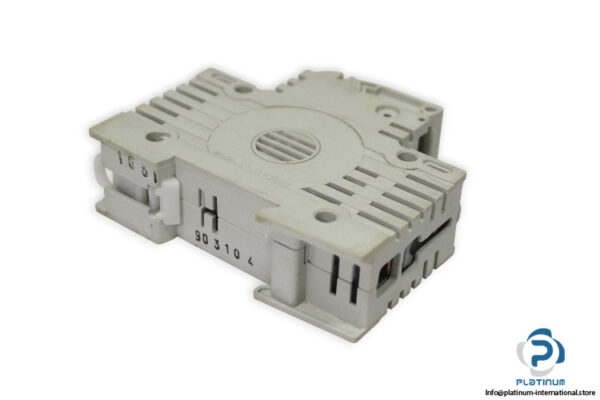

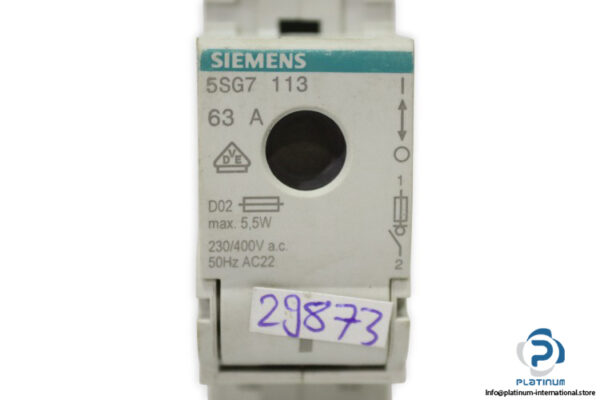

Siemens 5SG7113 Switch Disconnector with Fuse

The Siemens 5SG7113 from the MINIZED series is a high-quality switch disconnector with fuse, designed for safe and reliable electrical circuit protection. It offers superior overvoltage resistance, compact design, and compliance with international standards, making it suitable for various industrial and electrical installations.

Manufacturer: Siemens
Type: Switch Disconnector with Fuse
Model: 5SG7113
Product Brand Name: MINIZED
Product Designation: Switch Disconnectors with Fuses

Technical Information

• Number of Poles: 1
• Size of Fuse System (EN 60269-1): D02
• Overvoltage Category: 4
• Surge Voltage Resistance (Rated): 6 kV
• Operating Voltage (AC): 230/400 V
• Rated Current: 63 A
• Protection Class (IP): IP20, with connected conductors
• Power Dissipation: Max. 5.5 W
• Height: 90 mm
• Width: 27 mm
• Depth: 70 mm

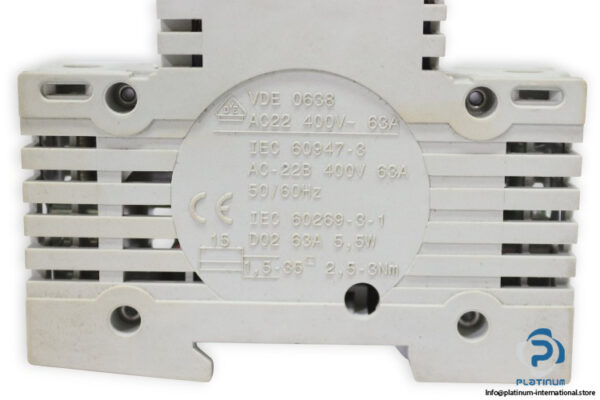

Standards

• VDE 0688
• IEC 60947-3
• IEC 60269-3-1
