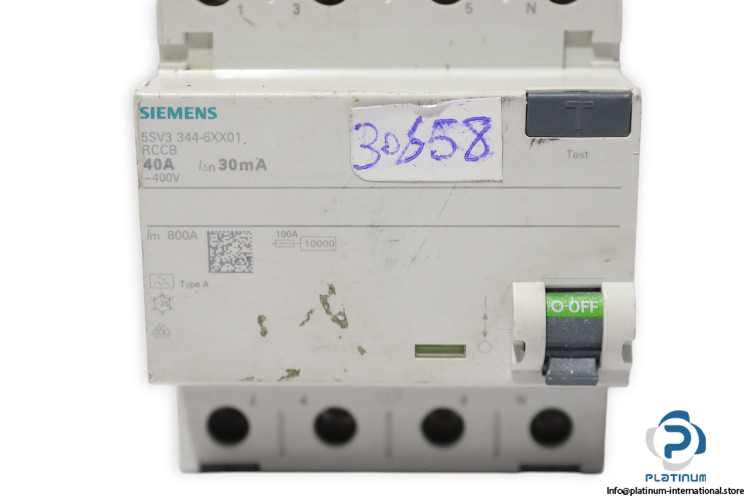

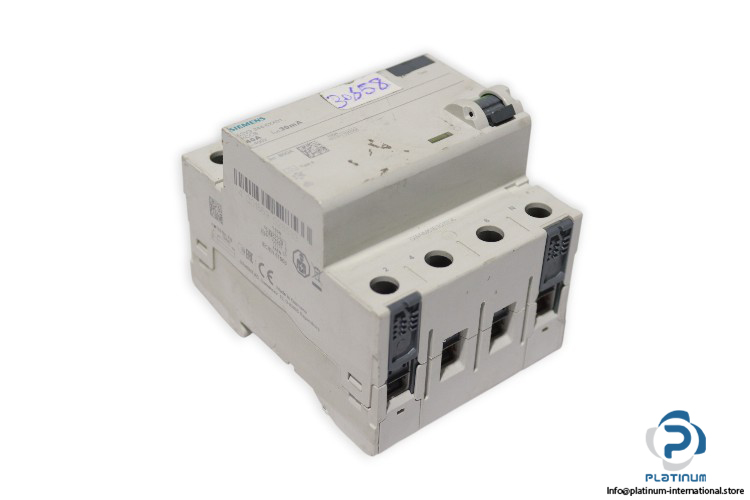

Siemens 5SV3344-6XX01 Residual Current Circuit Breaker

The Siemens 5SV3344-6XX01 is a high-quality residual current operated circuit breaker (RCCB) from the SENTRON series. It ensures reliable protection against electric shock and fire hazards caused by earth leakage currents, making it a vital safety component for electrical installations.

Manufacturer: Siemens
Type: Residual Current Operated Circuit Breaker
Model: 5SV3344-6XX01

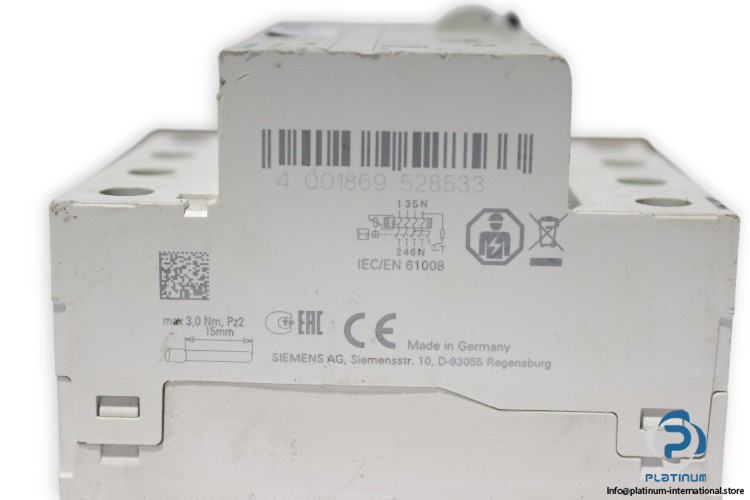

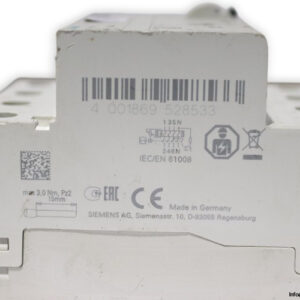

Serial No.: 4 001869 528533
Brand Name: SENTRON
Series: RCCB

Technical Information

• Supply Voltage: 400 V AC
• Rated Current: 40 A
• Type: A
• Power Loss: 3.9 W
• Operating Frequency: 50 / 60 Hz
• Contact: 4 Poles
• Short-Circuit Current Rating: 10 kA
• Operation Temperature: -25 / 45 °C
• Protection Class: IP20
• Dimensions: 90 x 72 x 70 mm
