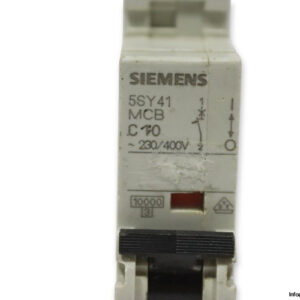

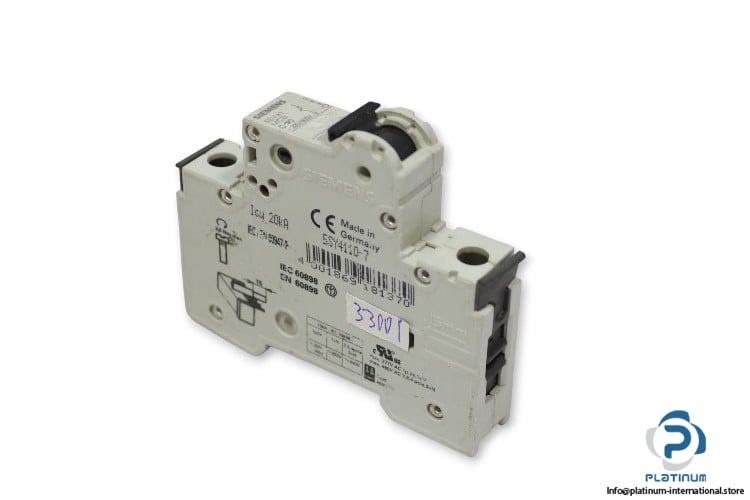

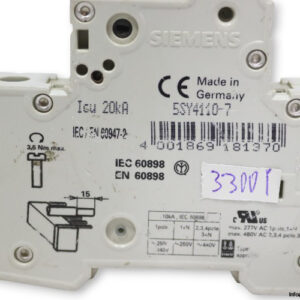

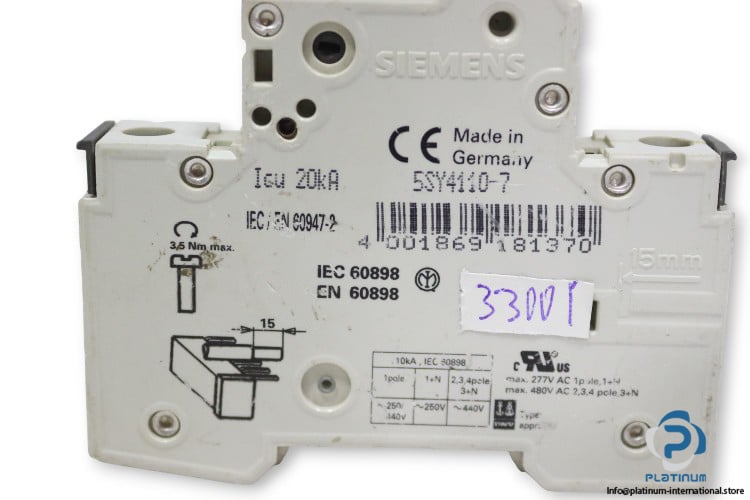

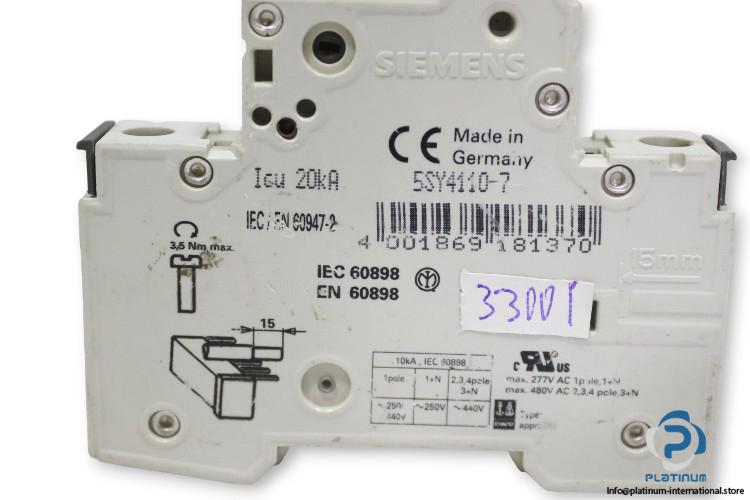

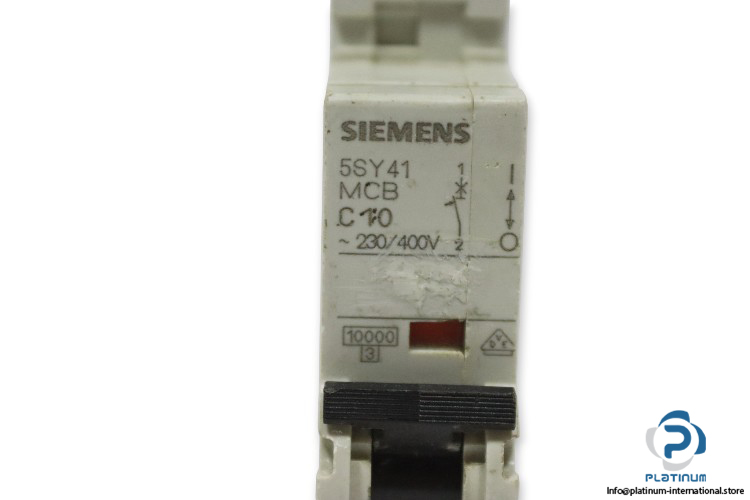

Siemens 5SY4110-7 Miniature Circuit Breaker MCB
The Siemens 5SY41107 Miniature Circuit Breaker MCB from the SENTRON series provides reliable protection for electrical circuits against overload and short-circuit conditions. Designed with class C tripping characteristics, it ensures stable performance and high safety standards in residential, commercial, and industrial applications.
Manufacturer: Siemens
Type: Miniature Circuit Breaker MCB
Model: 5SY4110-7
Technical Information
- Brand Name: SENTRON
- Tripping Characteristic Class: C
- Supply Voltage: 400 V AC / 60 V DC
- Rated Current: 10 A
- Frequency: 50 … 60 Hz
- Power Loss: 1.1 W
- Poles No.: 1-Poles
- Contact: 1 Normally Open (NO)
- Switching Capacity Current: 20 kA
- Short-Circuit Current Breaking Capacity (Icn): 5 kA
- Protection Class: IP20
- Ambient Temperature: -40 … 70 °C
- Dimensions: 90 x 18 x 76 mm
