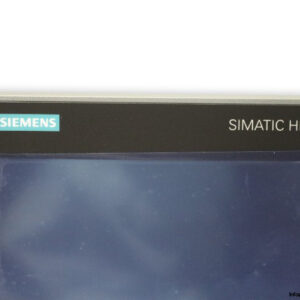

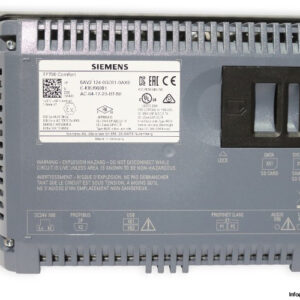

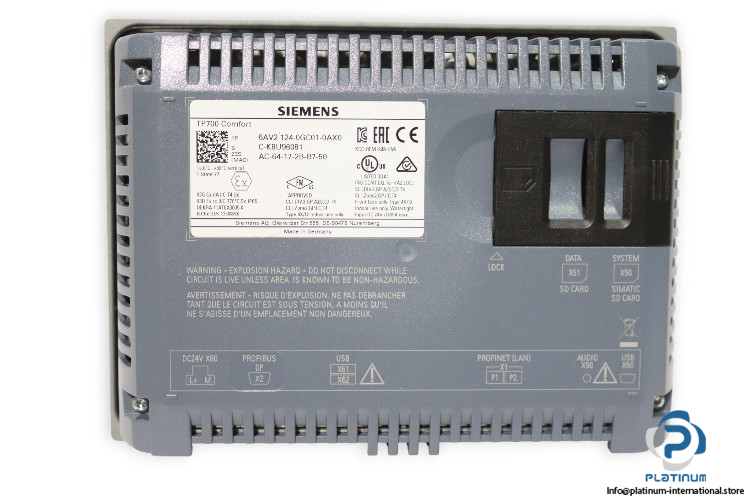

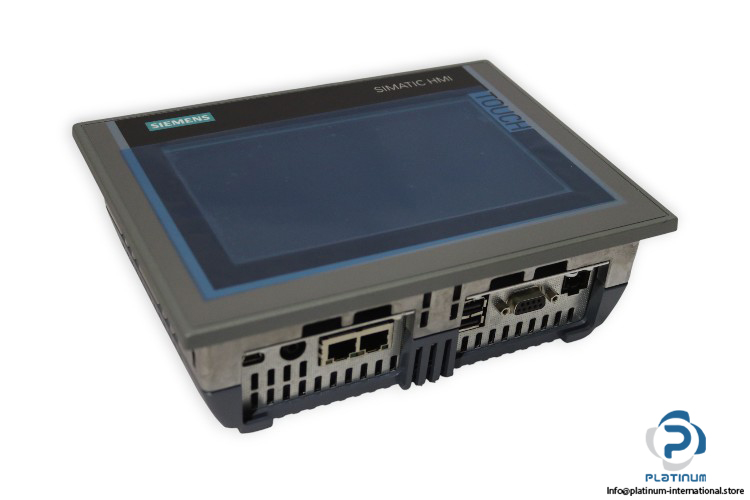

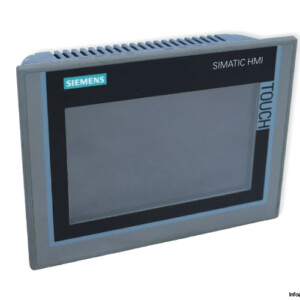

Siemens 6AV2124-0GC01-0AX0 Touch Panel

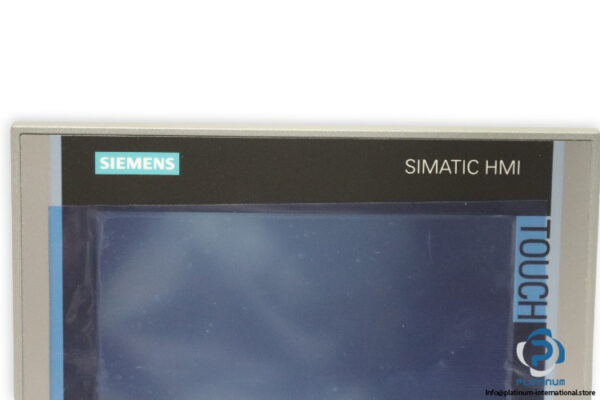

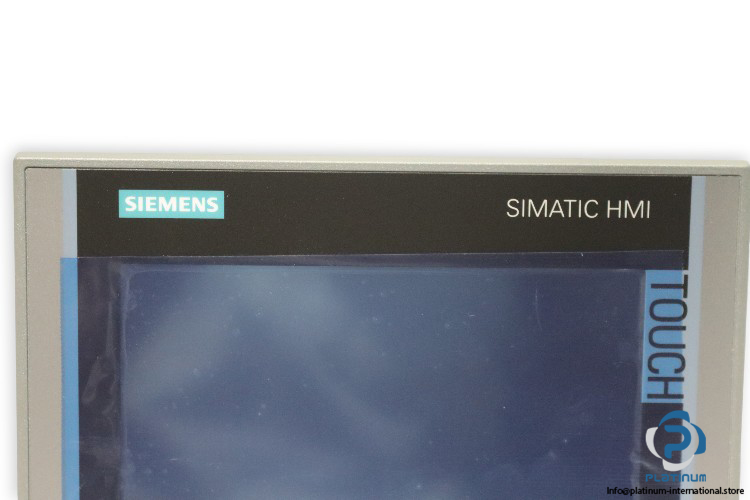

The Siemens 6AV21240GC010AX0 Touch Panel from the SIMATIC HMI TP700 Comfort range is a high-performance operator interface designed for advanced industrial automation systems. Featuring a wide TFT display, intuitive touch control, and robust communication interfaces, it ensures smooth monitoring and control of complex processes.
Manufacturer: Siemens
Type: Touch Panel

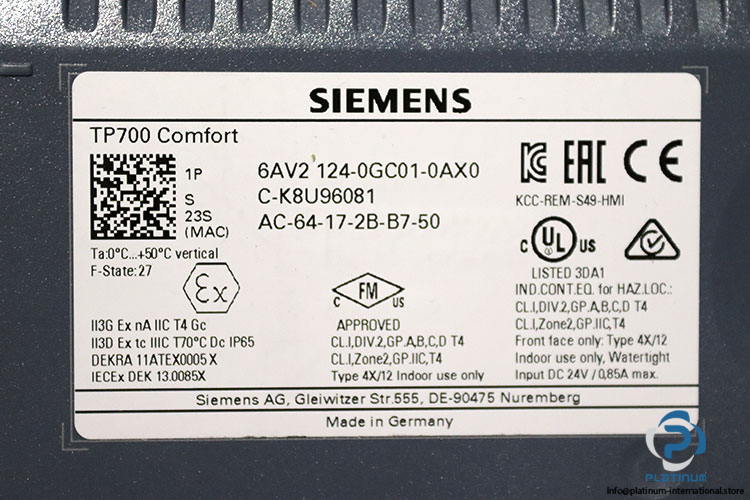

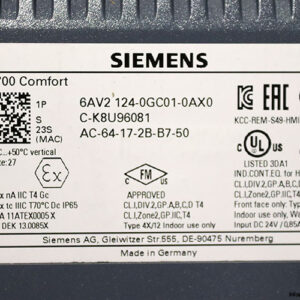

Model: 6AV2 124-0GC01-0AX0
Alternative Model: C-K8U96081 / AC-64-17-2B-B7-50
Technical Information
- Range: SIMATIC HMI TP700 Comfort
- Display Design: TFT Wide
- Screen Diagonal: 7 In
- Resolution: Horizontal 800 / Vertical 480 Pixel
- Colors No.: 16 Million
- Pre-Installed Operating System: Windows CE
- Control Elements: Touch Screen
- Protocols Ethernet: TCP/IP, DHCP, SNMP, DCP, LLDP
- WEB Characteristics: HTTP, HTTPS, HTML, XML, CSS, Active X, JavaScript, Java VM
- Supply Voltage: 24 V DC
- Current Consumption: 0.5 A
- Memory Type: Flash / RAM
- Memory Available for User Data: 12 Mbyte

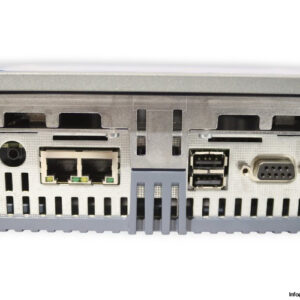

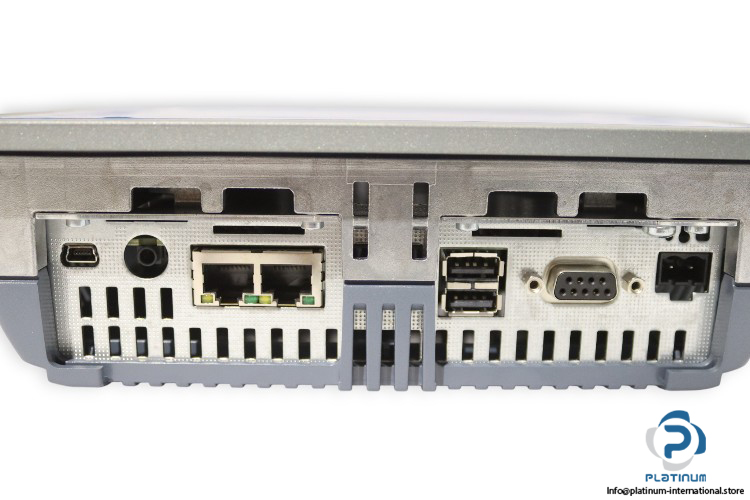

- Ethernet Interfaces: RS 422/485 Combined
- Industrial Ethernet Interface: 1; 2 Ports (Switch)
- USB Port: 2 x USB 2.0
- SD Card Slot: 2 Slot
- Processor Type: X86
- Protection Class: IP20 / IP65
- Ambient Temperature: 0 / 50 °C
- Dimensions: 158 x 214 x 63 mm
