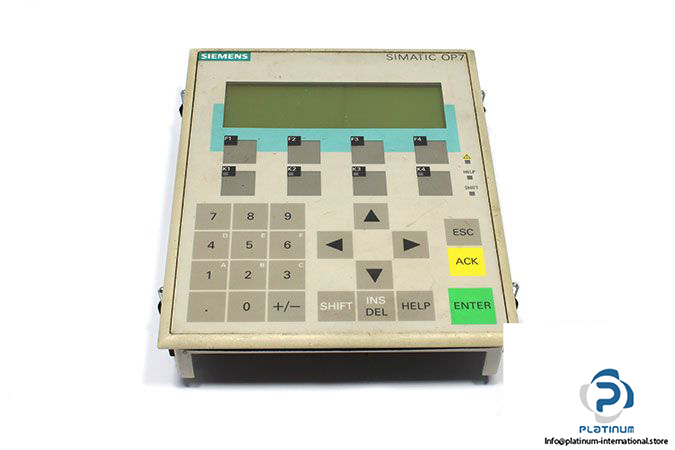

SIEMENS OP7/DP OPERATOR PANEL

The SIEMENS OP7/DP Operator Panel from the Simatic S7 family is a compact, reliable HMI device tailored for industrial automation systems. With a 24 V DC power input and Profibus-DP communication, it offers efficient operation, durable performance, and easy integration with PLC environments.

Manufacturer: SIEMENS
Type: Operator Panel
Family: Simatic S7
Model: OP7/DP

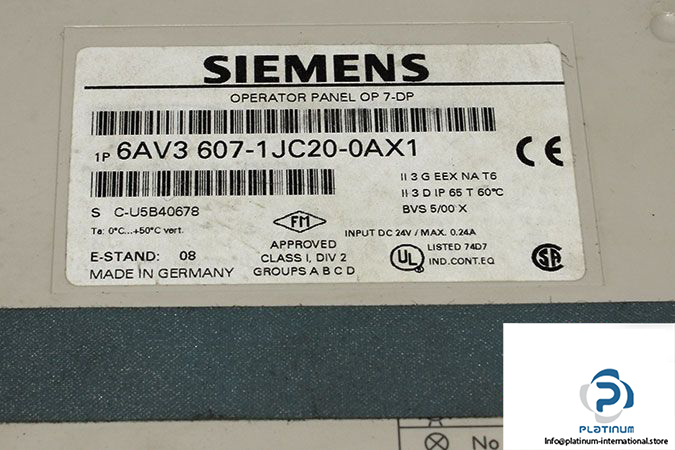

MRN: 6AV3607-1JC20-0AX1
SN: C-U5B40678
E STAND: 02

Technical Information

• Supply Voltage: 24 V DC
• Current Consumption: 0.19 A (Max: 0.24 A)
• Line Display: LC Display
• No. of Lines: 4
• No. of Characters Per Line: 20
• Connection: Profibus-DP

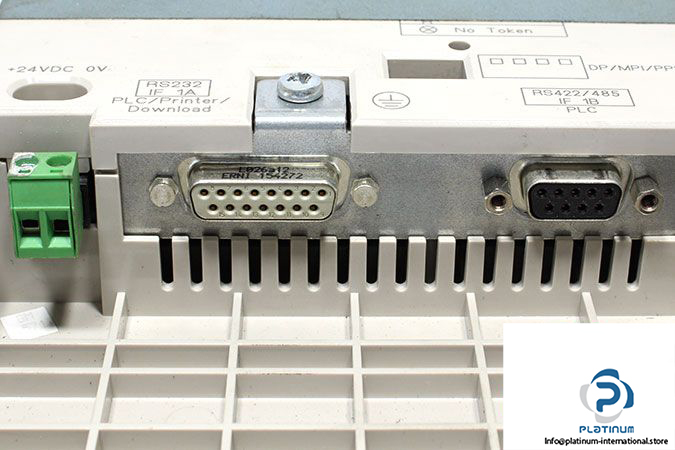

• Interfaces / Bus Type: RS232, RS422, RS485 (max. 1.5 Mbit/s)
• Type of Memory: Flash / RAM (128 Kbyte)
• Processor Type: X86
• Control Elements: Keys
• Dimensions: 180 x 145 x 45 mm
• Ambient Temperature: -25 / 70 °C
