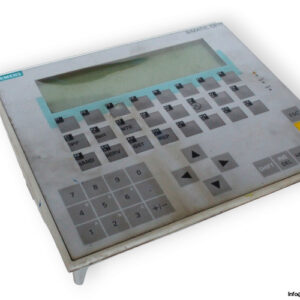

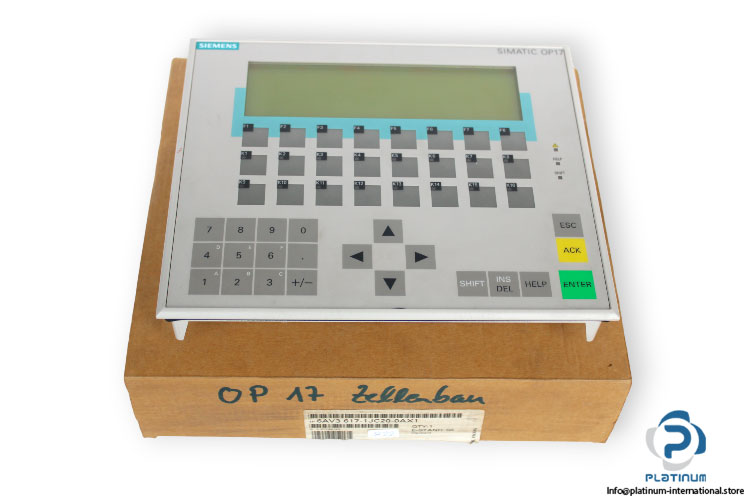

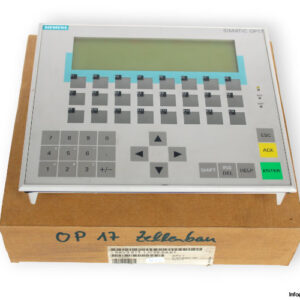

Siemens SIMATIC OP17 Operator Panel

The Siemens SIMATIC OP17 Operator Panel is a high-performance industrial control interface designed for reliable operation, intuitive usability, and long service life. Built for demanding automation environments, it ensures accurate monitoring and control of production processes. With its clear LCD display, programmable function keys, and multiple communication interfaces, the OP17 delivers dependable performance across diverse industrial applications.

Manufacturer: Siemens
Type: Operator Panel

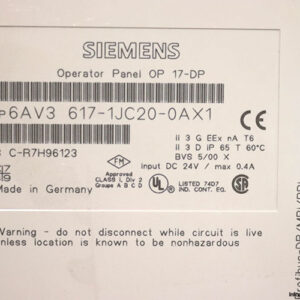

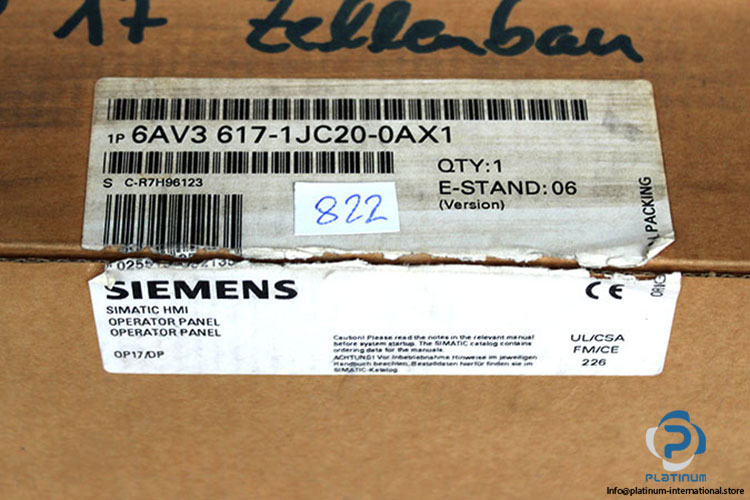

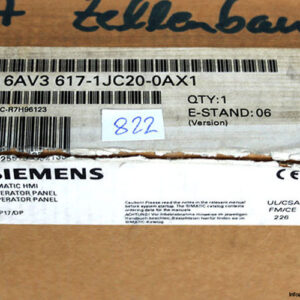

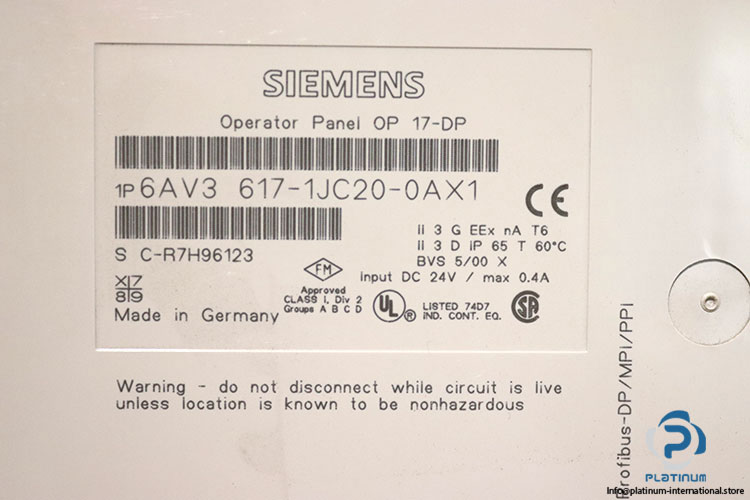

MNR: 6AV3 617-1JC20-0AX1
Series: 6AV3
Serial No.: C-R7H96123
E-Stand version: 06
Family: SIMATIC OP17

Technical Information

• Supply voltage: 24 V DC

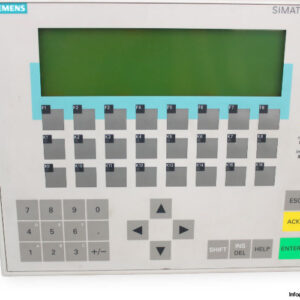

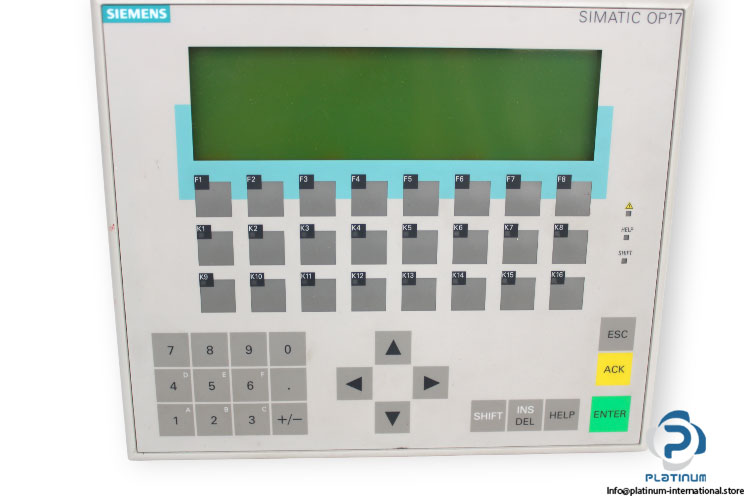

• Design of display: LCD display
• No. of lines: 8
• No. of characters per line: 40
• No. of function keys: 24
• No. of function keys with LEDs: 16
• Current consumption: 0.4 A
• Active power: 10 W
• Type of memory: Flash / RAM
• Capacity: 256 kbyte

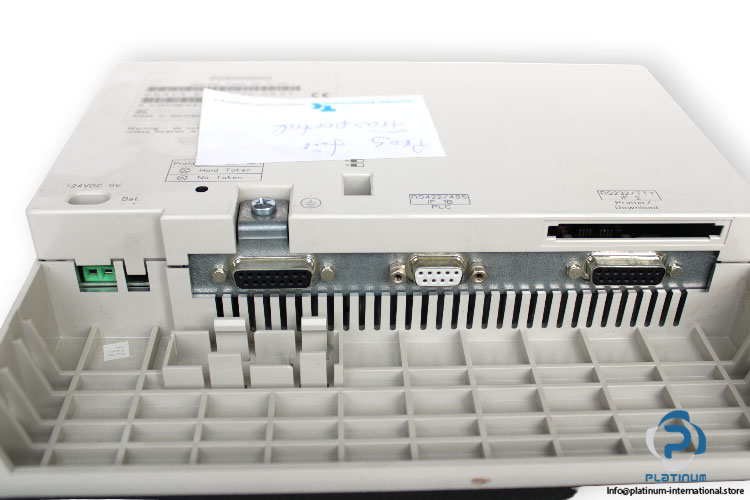

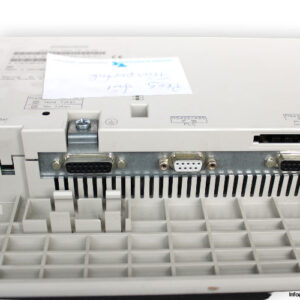

• Interfaces/bus type: 2 x RS232, 1 x RS422, 1 x RS485
• Degree of protection (Rear): IP20
• Ambient temperature: -25 / 70 °C
• Dimensions: 240 x 204 x 50 mm

The SIMATIC OP17 combines flexibility and ease of use, providing fast response, clear feedback, and stable communication with PLC systems. It is perfectly suited for tasks in machine automation, process visualization, and equipment operation. With its robust construction and wide operating temperature range, it ensures consistent functionality even in harsh industrial environments.
