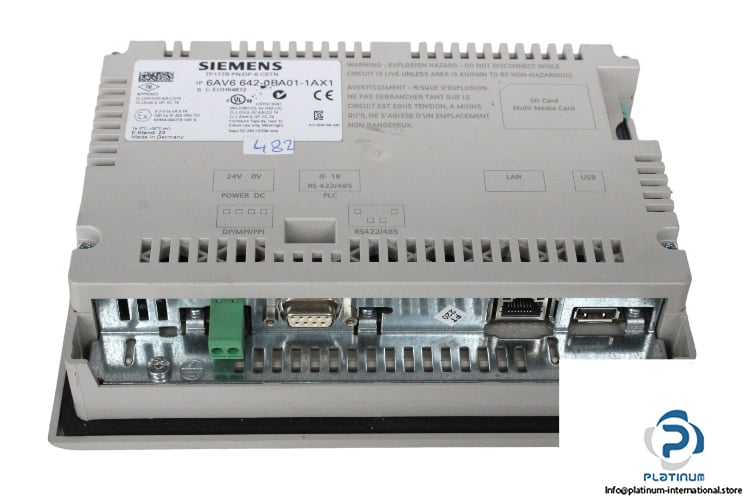

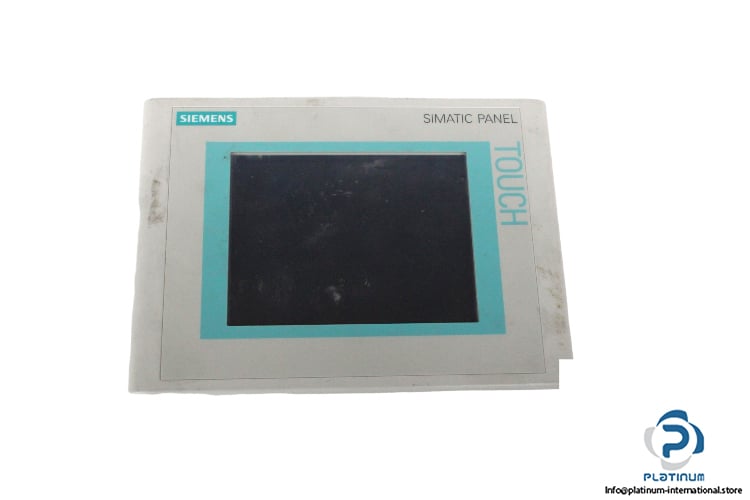

SIEMENS SIMATIC TP 177B DISPLAY PANEL

The Siemens SIMATIC TP 177B is a compact and efficient operator panel designed for industrial applications requiring reliable HMI interaction. With a durable build, EX-rated safety, and multilingual support, it is ideal for use in complex automation environments.

Manufacturer: SIEMENS
Type: DISPLAY PANEL, Touch Panel
Family: SIMATIC TP 177B

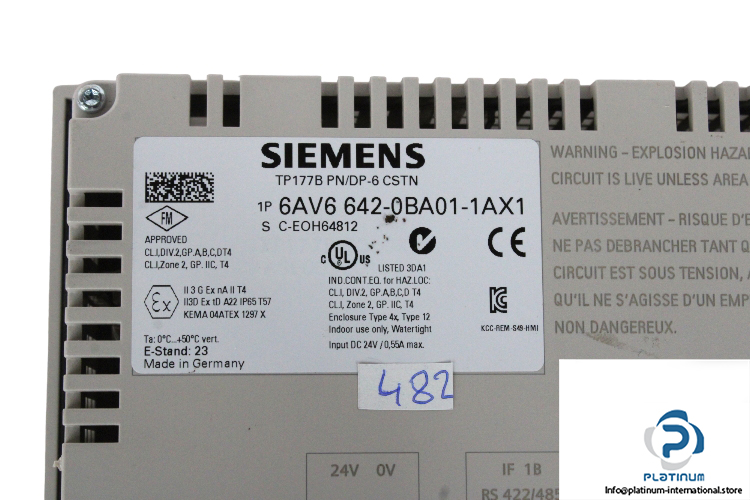

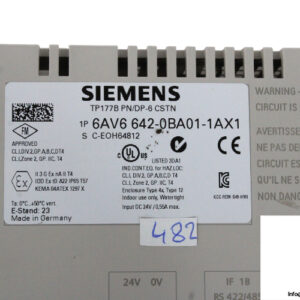

MRN: 6AV6642-0BA01-1AX1
SN: C-EOH64812
Explosion Proof: EX
Design of Display: STN
Horizontal Image Resolution: 320 Pixel
Vertical Image Resolution: 240 Pixel
Screen Diagonal: 5.7 in
Languages Per Project: 32
Memory Data: 2048 kbyte
Operating System: Windows CE

Dimensions

• Width of Housing Front: 212 mm
• Height of Housing Front: 156 mm
• Mounting Cutout Width: 198 mm
• Mounting Cutout Height: 142 mm
• Overall Depth: 44 mm
