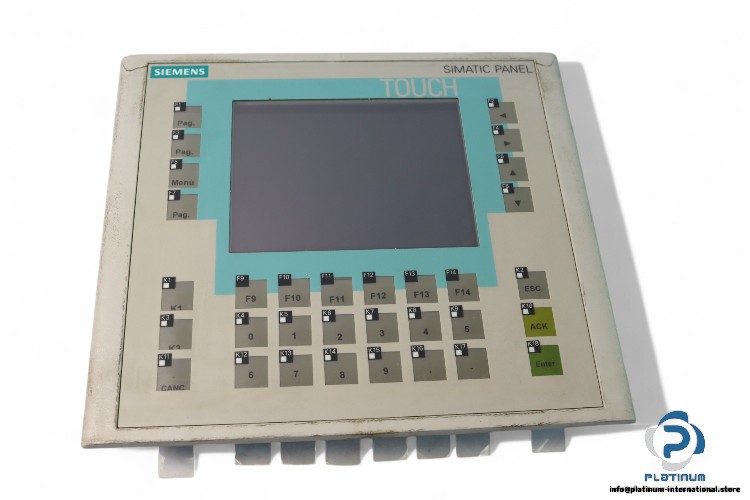

Manufacturer: Siemens
Type:  TOUCH PANEL

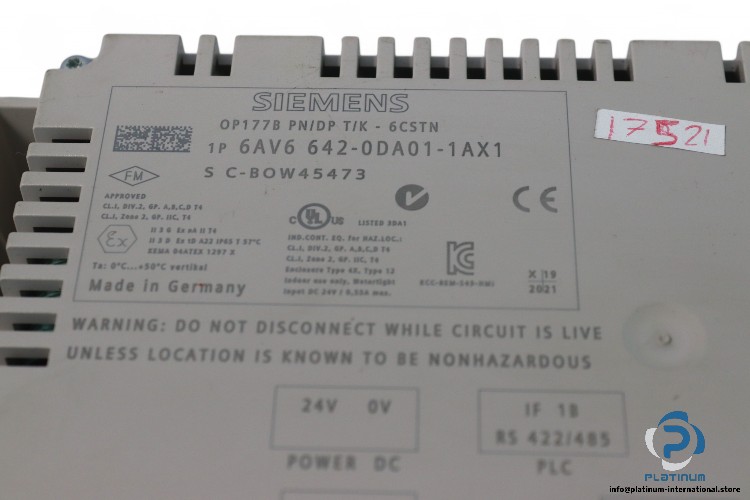

Part No.: 6AV6 642-0DA01-1AX1
Model: OP 177B

Family: SIMATIC OP 177B
Size of display/type: 6″/ touch
Transfer of configuration: MPI/PROFIBUS DP, serial RS485/RS422, USB, Ethernet 10/100
Connection to controller: S5, S7-200, S7-300/400
No. of color: 256
Input Voltage: 24 V DC
Current consumption (rated value): 0.24 A
Ambient Temperature: 0 – 50 °C
Dimensions
Front: 243 x 212 x 45 mm
Cutout: 229 x 196 x45 mm
Processor type: ARM, 200 MHz
Type of memory: Flash / RAM
Memory available for user data: 2048 k byte
Complex image objects (Status/control): With SIMATIC S7 (Diagrams, bar graphs, sliders, analog display, invisible buttons)
No. of keys: 32
